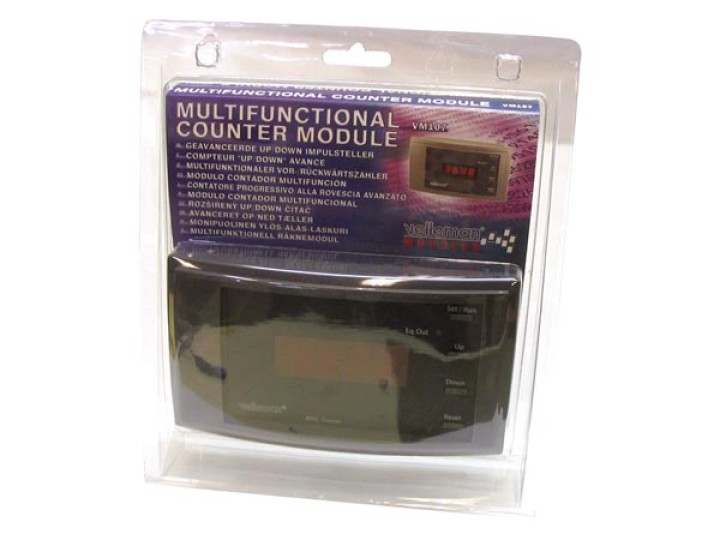

Multifunctional counter module 12v 4 digit count people cars
Multifunctional counter moduleIdeal for counting people or parts, for keeping scores, etc... The HOURS:MIN and the MIN:SEC functions are also very practical (displays 23:59 & 59:59). A built-i

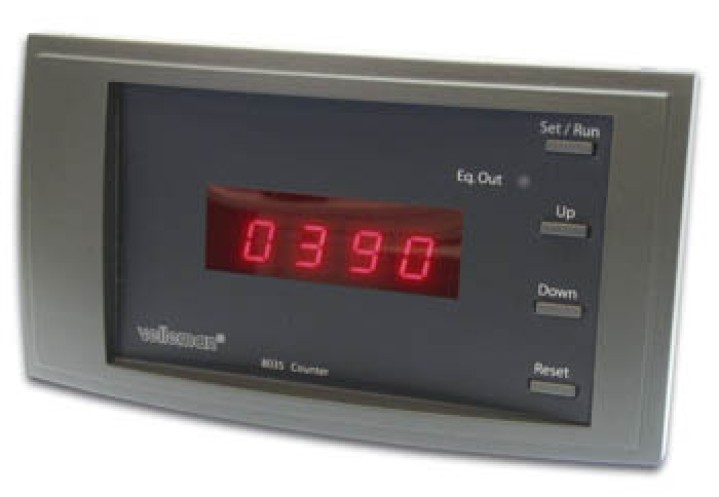

Ideal for counting people or parts, for keeping scores, etc... The HOURS:MIN and the MIN:SEC functions are also very practical (displays 23:59 & 59:59). A built-in oscillator makes it possible to time intervals without making use of an external oscillator (clock function). Counting impulses (addition & subtraction) can be given both through push buttons and the counting inputs. A memory function constantly compares the current value with a preset value and activates an output for as long as both are equal.
Features
* count input through on-board pushbuttons or by external pulses * display modes: normal or time (hh:mm and mm:ss) * an internal oscillator allows time measurement * programmable pre-set value with equal output * selectable input debounce delay
Specifications
* counter input: 3...12 VDC (normal dry contact also possible) * EQUAL Output: 5VDC / max 50mA * max. counting speed: 200 / sec. (2 / sec with long debounce delay) * max. count: 4 digits (9999 / 23h59m / 59m59s) * power supply: 9...12VDC or transformer 2 x 9VAC * power consumption: 150mA max. * dimensions: 165 x 90 x 57mm (6.5' x 3.5' x 2,2') / mounting depth 35mm (1,4')
