Thc15a digital lcd power weekly programmable timer dc 12v time relay switch

REF : HP712N

€33.25

Descriptions:
    * Features: DIN Rail Installation, advanced pre-setting one week before, digital electronics general purpose time switch daily and programs, repeat progr

Volume discounts

5
€31.59
10
€29.93
20
€26.60
50
€24.94
100
€23.28
200
€21.61
500
€19.95
1000
€18.29
: 17 Items

Emplacement : R6J4

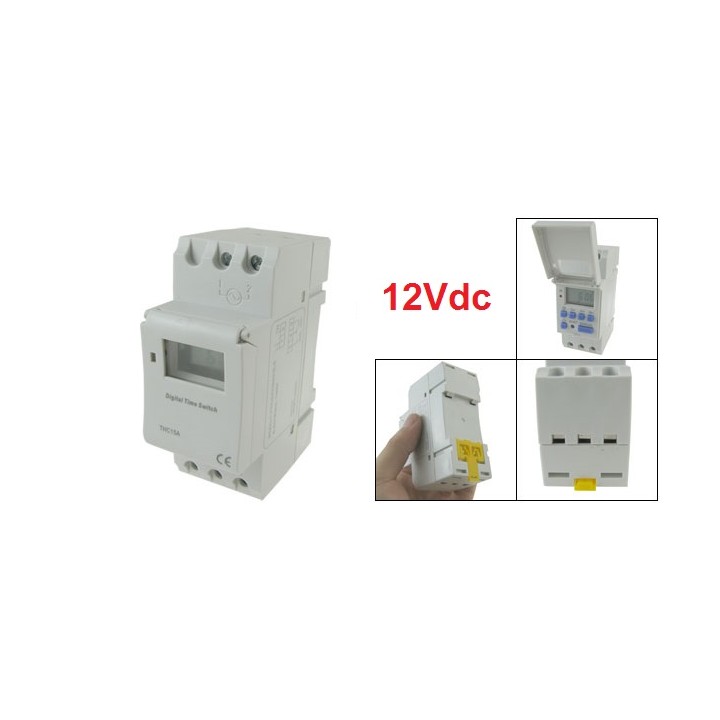

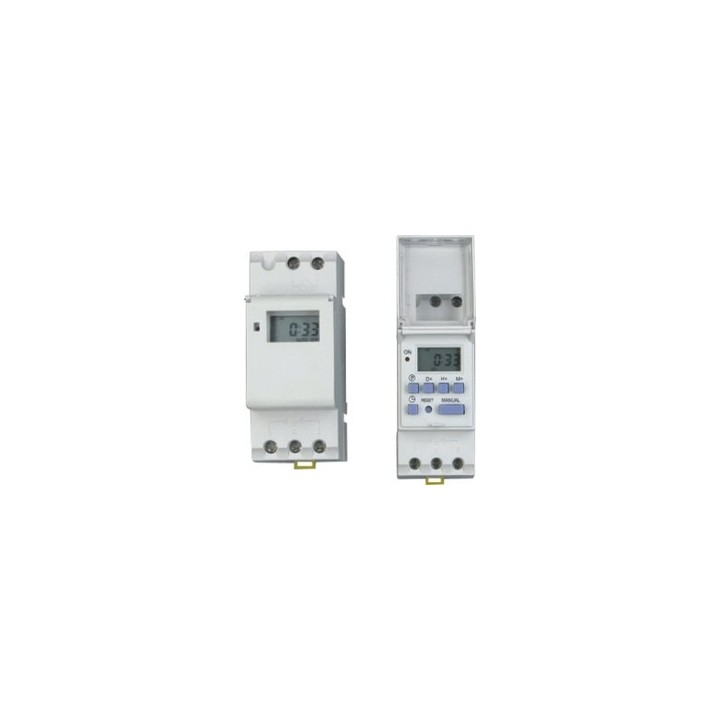

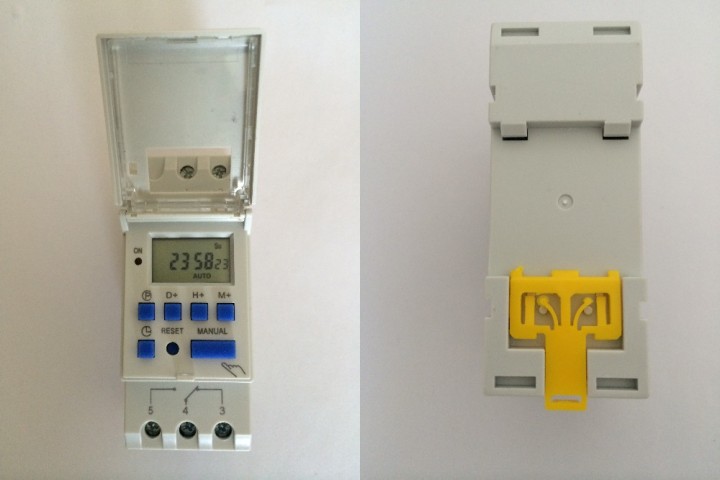

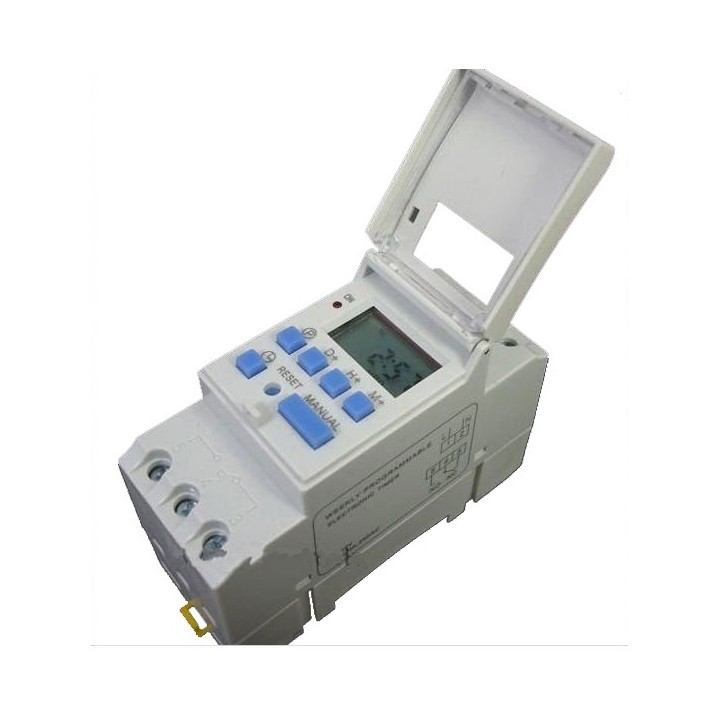

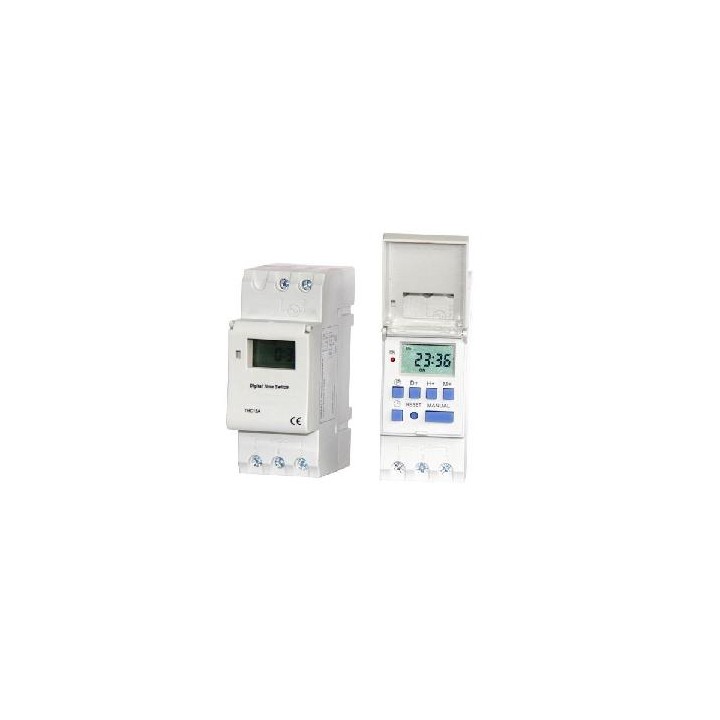

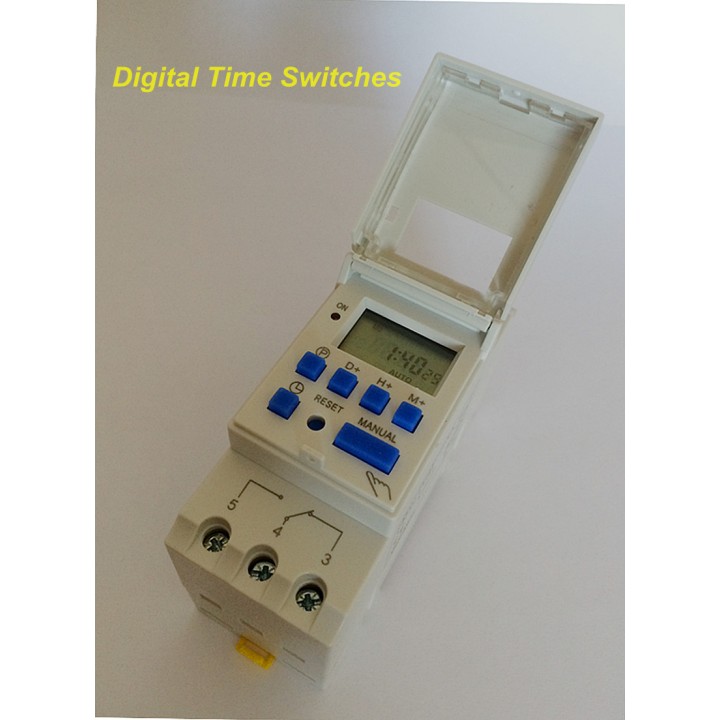

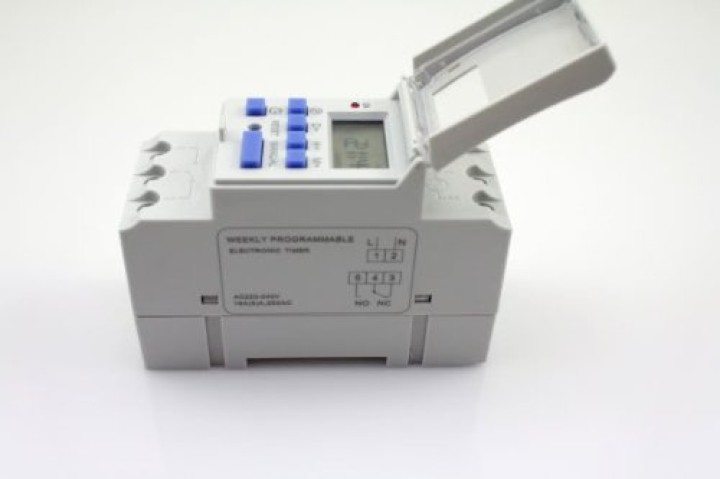

The HP712N turns on alarm systems, VCRs, lighting, etc. in a regular and systematic way without having to think about it. This is a highly reliable programmer. Easy to set up using the liquid crystal screen where the time, programmes, status (on/off) as well as the mode (automatic or override) are displayed. 6 different programmes over 7 days are possible, accurate to the nearest minute (the programmes are saved because there is a cadmium-nickel battery). The HP712N can switch up to 2200W. Fixing on DIN rail in consumer unit. Descriptions:
* Features: DIN Rail Installation, advanced pre-setting one week before, digital electronics general purpose time switch daily and programs, repeat programs with 16 on/off setting, 18 times pulse programs, and setting on/off manually, auto time error correction +- 30 sec, weekly.
* LED indicator light, week and time resettable, LCD digital display, 6 function keys.
* The program timer can automatically switch on and switch off various kinds of electric equipment according to fixed time.
* Used widely to control the lamp, water heater, sprayer, bottler, preheater, agriculture facilities, broadcasting equipment,home appliance, etc.

Brand Name: YFC
Max. Voltage: DC12V
Model Number: THC15A

Product Description

Features: DIN Rail Installation, advanced pre-setting one week before, digital electronics general purpose time switch daily and programs, repeat programs with 16 on/off setting, 18 times pulse programs, and setting on/off manually, auto time error correction +- 30 sec, weekly.

Product Name Programmable Timer
Model No. THC15A
Voltage Rating DC 12V
Voltage Limit AC 180V-250V
Hysteresis <=2 sec/day(25°C)
ON/OFF Operation 16 ON &16 OFF, 18 times pulse
Power Consumption 7.5VA(max.)
Display LCD
Minimum Interval 1 minute
Count Down 1 sec-99 min 56 sec
Pulse 1 sec-59 min 59 sec
Load Capacity
Resistive Load 16A / 250V AC
Lagging Load 10A / 250V AC
Lamp Load 2000W
Switching Contact 1 changeover switch
Ambient Temperature -10~+40°C
Ambient Humidity 35-85%RH

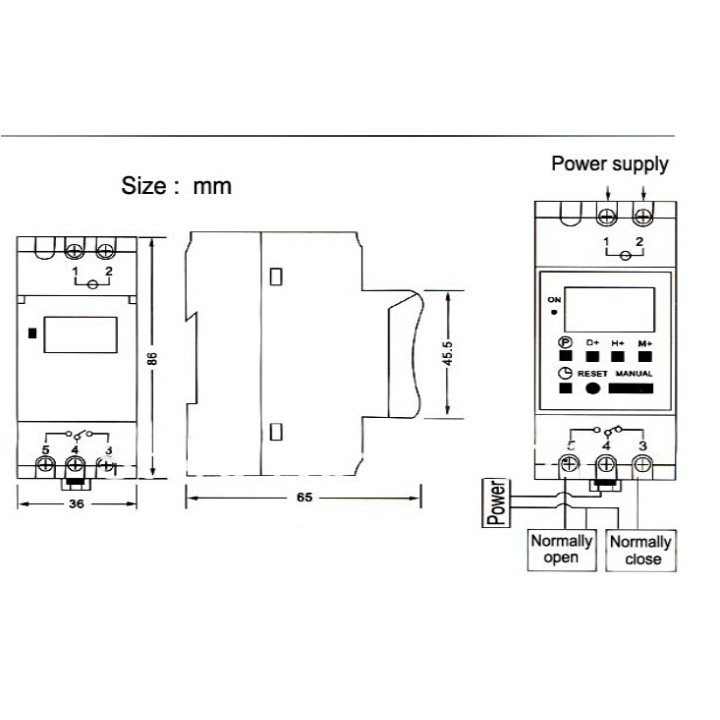

Overall Size(Approx.) 89 x 36 x 65mm / 3.5' x 1.4' x 2.6'(L*W*H)
Material Plastic, Electronic Parts
Net Weight 113g
Package Content
1 x Programmable Timer
1 x Manual
