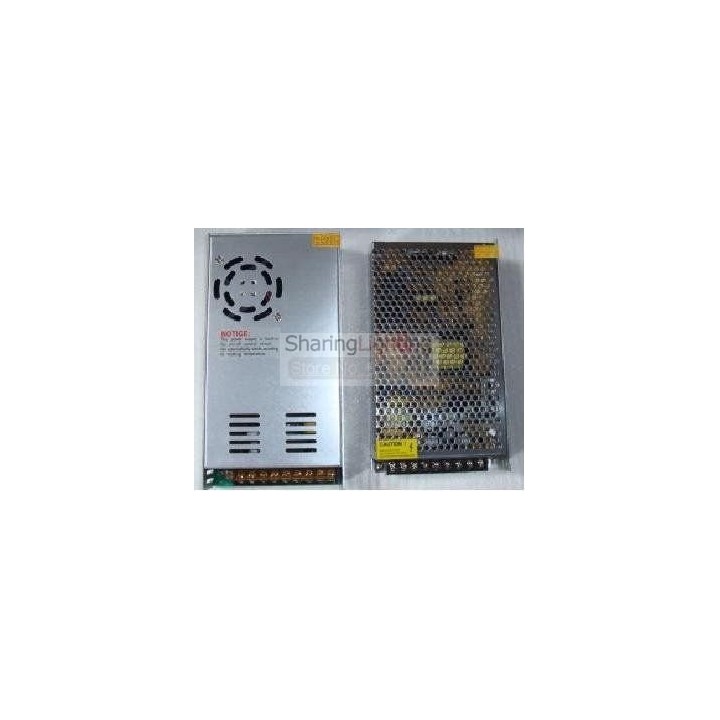

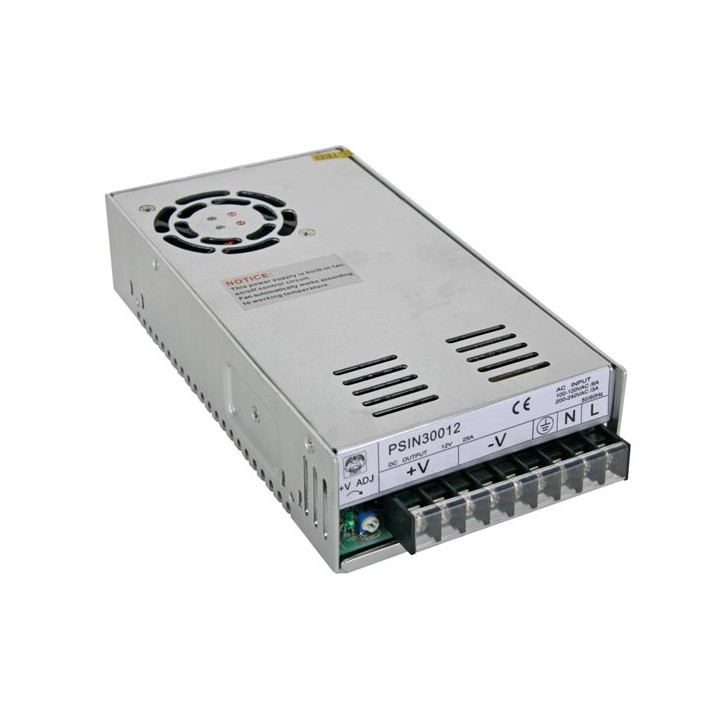

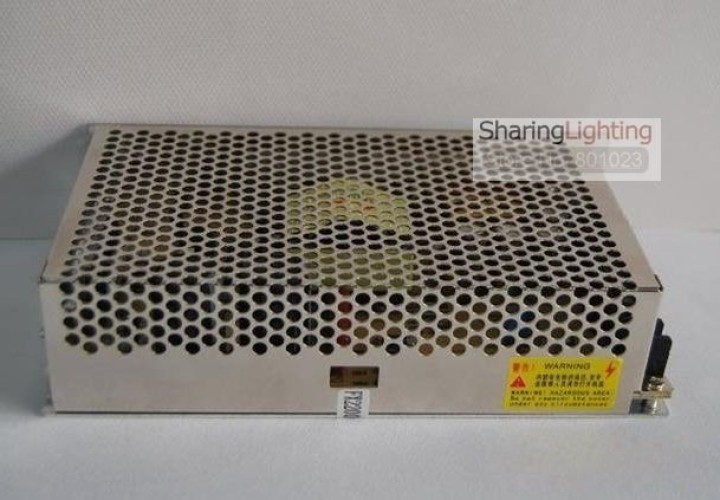

Switching power supply 110v 220v 25a 300w 12vdc 85 to 264vca closed frame psin30012
REF : PSIN30012
€90.83

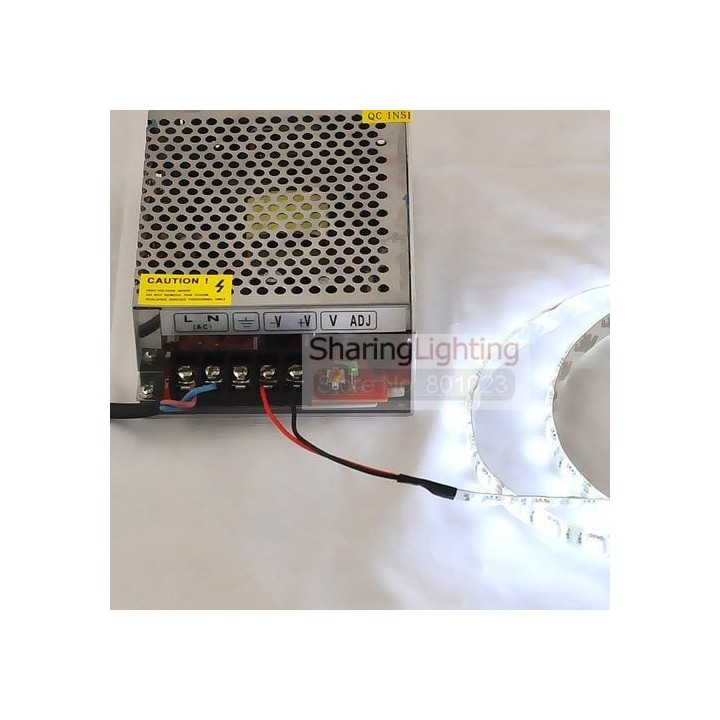

Transformer LED bulbs specifically for LED, LED strips and LED neon. It delivers a voltage of 12V DC is ideal for all low voltage LED products. Max 300w. Features cooling: by forced air cir
:
7 Items
Emplacement : R503
Transformer LED bulbs specifically for LED, LED strips and LED neon. It delivers a voltage of 12V DC is ideal for all low voltage LED products. Max 300w. Features
cooling: by forced air circulation
with screw connections
protections:
short circuit
overload
auto recovery
100% full load burn-in test
high reliability
according to EMC standard : FCC part 15
according to safety standard : UL1012
Specifications
output voltage: 12VDC ± 1%
output current: 0.0 ~ 25A
ripple and noise: 200mV
power output: 300W
dimensions: 227 x 114 x 49mm
weight: 920g
overload protection: 105% - 150% fold back current limiting with auto-recovery
input voltage: 100-120Vac / 200-240Vac (switch selectable) 50/60Hz
input rush current (230VAC): 30A (cold start)
setup, rise and hold-up time: 200ms, 100ms, 300ms at full load and 230VAC
working temperature:
-10°C ~ 0°C: 80% load
0°C ~ 50°C: 100% load
50°C ~ 60°C: 60% load
operating humidity conditions: 20% ~ 90%RH
overload protection: 105% ~ 150% fold back current limiting with auto-recovery
withstand voltage (max. 1min):
I/P - O/P: 1.5kVAC
I/P - FG: 0.5kVAC
DC adjustment range: ± 10% rated output voltage (V adj)
efficency: 74%
connection: 5, 7 or 9 pole terminal block, pitch 9.5mm
Packaging information
Type of packaging: Box (Carton)
Bar code (EAN-13): 5410329405908
