8 kanale erweiterungmodul fur uc280 uc281 433.92mhz sicherheitstechnik modul fur alarmzentrale elektronisches modul

Power 12 V DC (10.5 V 16.0 V) Power consumption typ. 50 mA (all relays off) max. 150 mA Zone outputs Z1-Z8 8 relays 50 mA / 50 V with COM1 common terminal Tamper, fault, battery outputs 3 relays 50 mA / 50 V with COM2 common terminal Working environment indoor use (class II, EN 50131-1) Operating temperatures -10 °C to +70 °C Operating humidity max. 90 % Dimension 188 x 135 x 40 mm Weight 800 g

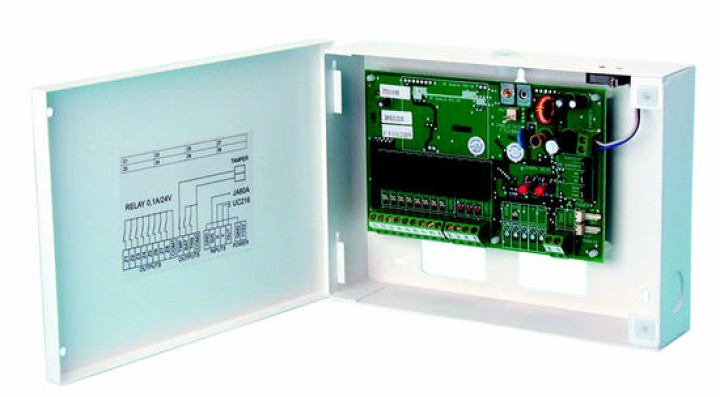

The UC-282 is designed to expand a number of wireless zones of UC-281 or UC-282 wireless interface. It provides additional 8 zones interface linking JA-60 wireless detectors or RC-xx remote controls with hard-wired security control panels. The UC-282 cannot be used independently, as it is not equipped with receiver or transmitter module. Up to 4 UC-282 expander modules can be used to increase the number of zones of UC-281 or UC-282.
