Dimension 83x120x30mm . Weight 160gr . Supply 12Vdc . Consumption 100mA

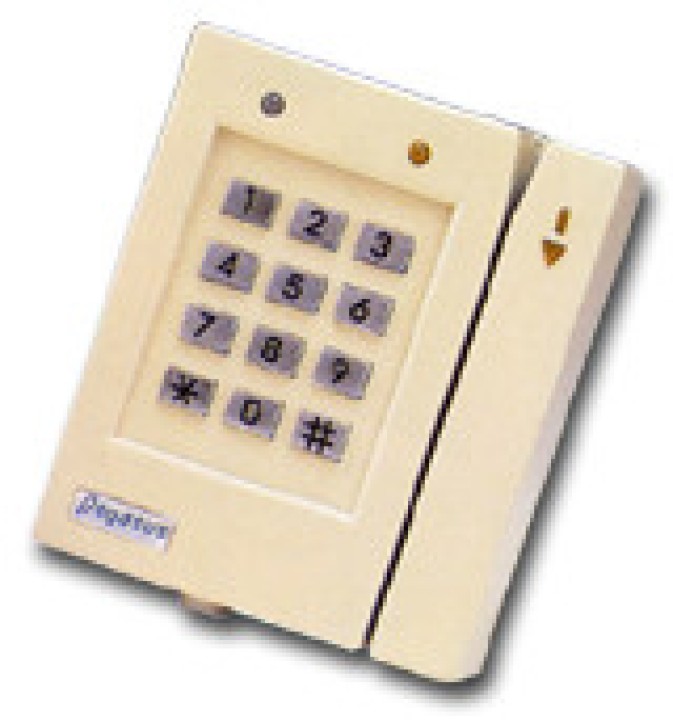

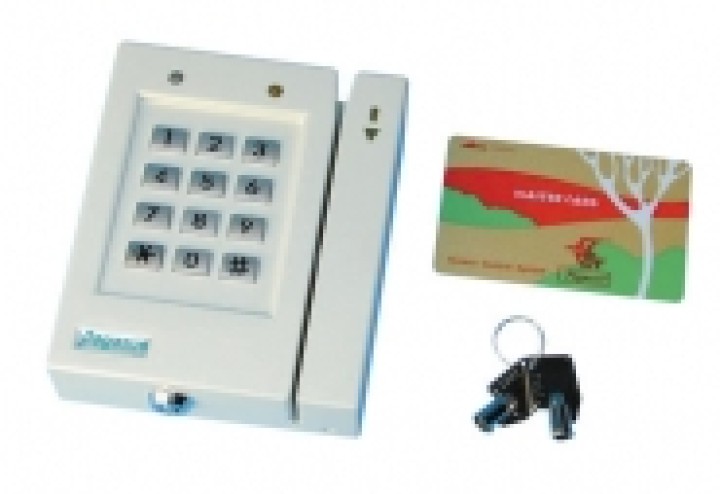

Waterproof access control system with built-in magnetic card reader and keypad. This reader allows a double-checking process, only card, only keypad, or card + keypad. 2 types of card are needed, the master card to programme first the reader so that it will accept or refuse a card number and second to programme the keypad code. The access cards are used to control the opening of the door using an electric latch (ref. GAE or GAS). 900 different access cards can be used (ref. CMP-you must give the number of the card). Indicator light confirming access ( red/green LED). Zinc and aluminium box anti tamper opening. Please note: The CM cards are blank and must be programmed by the coder PCA before being used. They are the ISO TRACK II type. Two electric latch inputs. Pulsed opening time (programmable from 1 to 98s) or on/off. Non volatile memory. CPU check to warn of any malfunction. One of the main advantages of this reader is that it is completely self-activated and does not need a computer.
