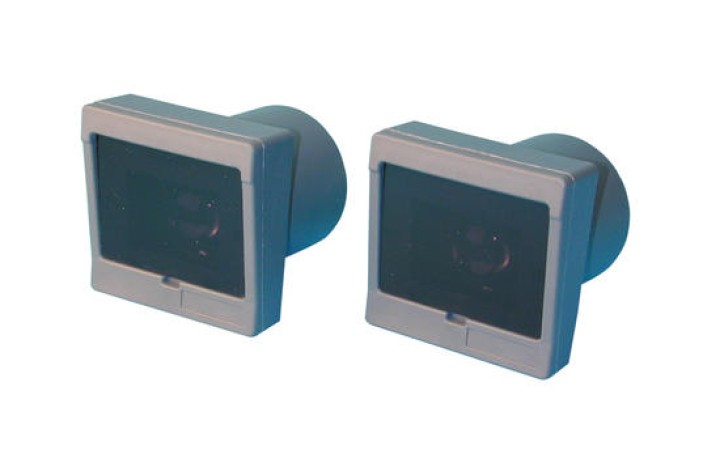

Ir schranke 20 40m 12v 24vac dc lichtschranken infrarotlichtschranken lichtschranke infrarotschranke sender und empfanger

Dimension 75x75x80mm . Weight 440gr . Supply 24Vac . Consumption 50/55mA
An infrared barrier is made up of two parts: the transmitter and the receiver. An infrared ray is emitted between the transmitter and the receiver and makes a beam. When this beam is cut, the cell sends a signal to a system (automatic gate motor, alarm system, chimes, automatic lighting, etc.). Rain, fog or bad weather hinder the propagation of the infrared rays and can reduce the maximum distance between transmitter and receiver by as much as half. For alarm use, it is recommended to double the beams which means doubling the number of infrared cells. This model needs the use of a metal case (ref I55B) or columns (ref I55C). Maximum range between the transmitter and the receiver: 40m (recommended range: from 20 to 25m). The case is not anti tampered. NO/NC outpiut contact relay 1A/12Vdc or 500mA/120Vac
