Dimensions Motor: 340x160x130mm, Rail: 3045x81x30mm. Weight: 12.46Kg

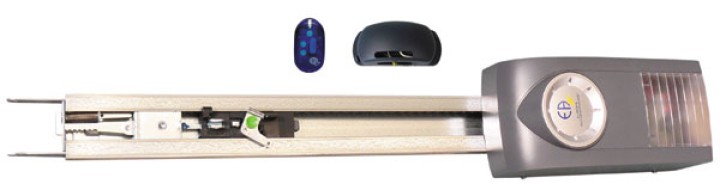

For swing out and sectional garage doors


Motor technical features :
24 V DC self-locking motor for doors up to 7m²
Maxi. traction force : 500 N
AC mains voltage : 230V - 240 V AC, 0,2 Kw
Speed : 14cm/sec

3 parts rail technical features :
rail length : 3 045 mm
3 cm deep

For swing out door up to 2.50 m of height
For sectional door up to 2.25 m of height

Functions :
- Progressive start and stop operation in order to save mechanical parts
- Automatic closing time delay mode available
- Equiped with digital encoder sensor and opening/closing mechanical limit switches
- Timing belt release function in order to decrease system tension
- External trigger available
- Built-in door opening security input

- 433.92 Mhz transmitter-receiver system
