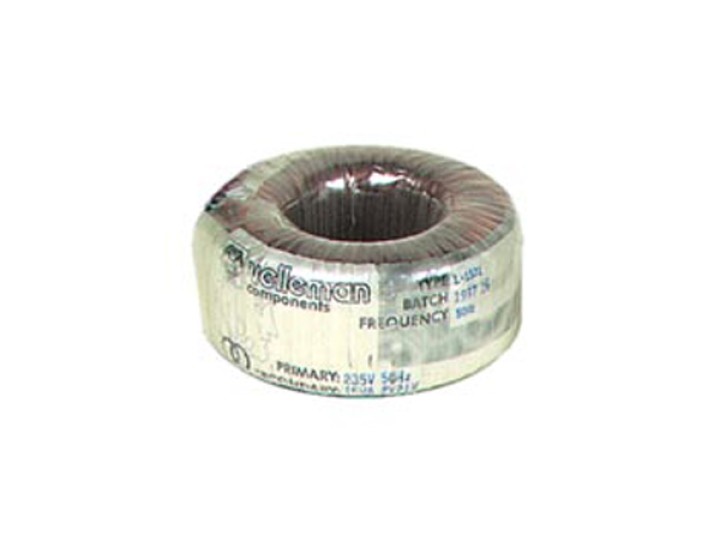

50va trasformatore toroidale 230v 50hz 2 x 2 x 12v 2.08a alimentazione convertitore di potenza 220vac 5012 jr  international - 1

50va trasformatore toroidale 230v 50hz 2 x 2 x 12v 2.08a alimentazione convertitore di potenza 220vac 5012

REF : 5012

66,58 €
Features approvals: EN 60742/BS3535 fuse: 130°C thermal fuseSpecifications voltage: 2 x 12V current: 2 x 2.08A regulation: 12% weight: 0.79kg Ø: 93mm max.

Sconti sul volume

5
63,25 €
10
59,92 €
20
53,27 €
50
49,94 €
100
46,61 €
200
43,28 €
500
39,95 €
1000
36,62 €
: 3 Articoli

Emplacement : -()R9C3


Features

approvals: EN 60742/BS3535
fuse: 130°C thermal fuse

Specifications

voltage: 2 x 12V
current: 2 x 2.08A
regulation: 12%
weight: 0.79kg
Ø: 93mm max.
height: 40mm max.
fixing bolt: M6 x 45mm
nut: M6
metal washer: Ø72mm
rubber washer: Ø74mm
connections: 200mm PVC, 10mm stripped and tinned leads
primary: 1672 18AWG black - black : 1 x 230V
secondary: *red - yellow / *blue - grey (* = start)
primary voltage: 230V / 50Hz
primary-secondary insulation: 500Vdc
secondary-secondary insulation: 500Vdc
insulation category: class A, 105°C
5012
3 Articoli
