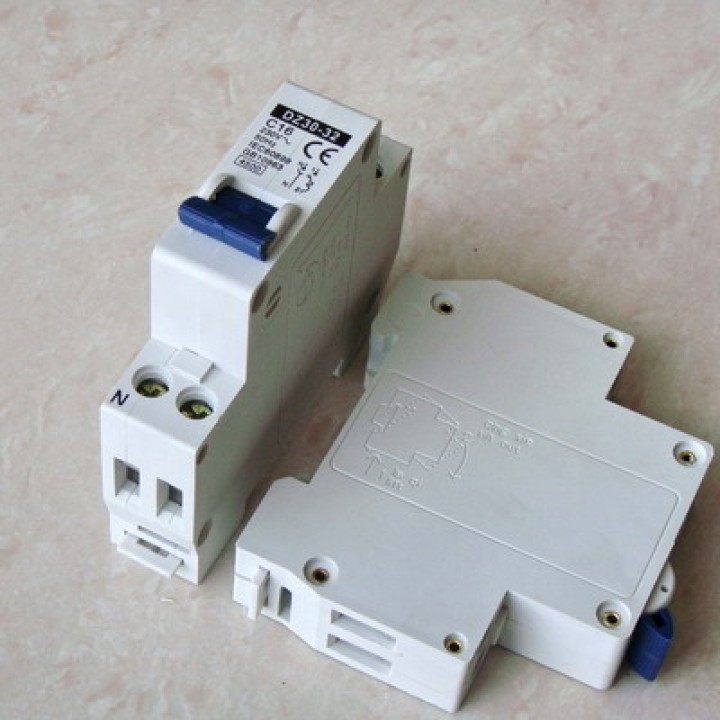

Modulare dpn interruttore 1p + n 16a 4,5 ka calibre 230 su guida din jr international - 1

Modulare dpn interruttore 1p + n 16a 4,5 ka calibre 230 su guida din

REF : DPN16

7,94 €
DPN MCB Technical Data ( DPN MCB ):Model: DPN MCBStandard: IEC60898Rated current In: 6, 10, 16, 20, 25, 32ARated voltage Un: 230VPoles: 1P+NRated insulation voltage U

Sconti sul volume

5
7,54 €
10
7,15 €
20
6,35 €
50
5,96 €
100
5,56 €
200
5,16 €
500
4,76 €
1000
4,37 €
: 17 Articoli

Emplacement : -()R2L5


DPN MCB



Technical Data ( DPN MCB ):

Model: DPN MCB

Standard: IEC60898

Rated current In: 6, 10, 16, 20, 25, 32A

Rated voltage Un: 230V

Poles: 1P+N

Rated insulation voltage Ui: 500V

Rated impulse withstand voltage Uimp: 6000V

Energy limiting class: 3

Thermal operating limit: (1.13 ~ 1.45)x In

Tripping characterstic: B, C, D

Ambient temperature: -5 to 40°C

Installation: Mounting on 35mm DIN rail

Degree of protection: IP 20



Function ( DPN MCB ):

1. Protection against short circuit current and overload current

2. Isolation

3. Control

Breaking capacity ( DPN MCB ):
Model Tripping curves Rated voltage Poles Rated current In Breaking capacity Width/pole
EBS1B DPN C 230VAC 1P+N 6,10,16,20,25,32A 4500A 18mm



Connection Capacity ( DPN MCB ):

1.Type of terminal: Lug type and Pin type

2. 16mm2 rigid up to 25A ratings





Tripping Curve( DPN MCB ):

Curve C:(5~10 In) protect and control circuit against overload and short circuit; protect resistive and inductive loads with low inrush current.
DPN16
17 Articoli
