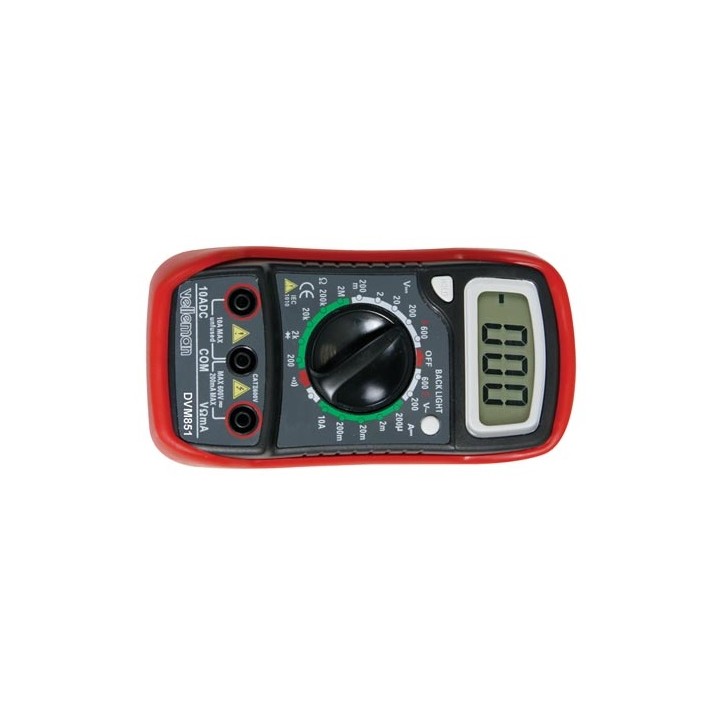

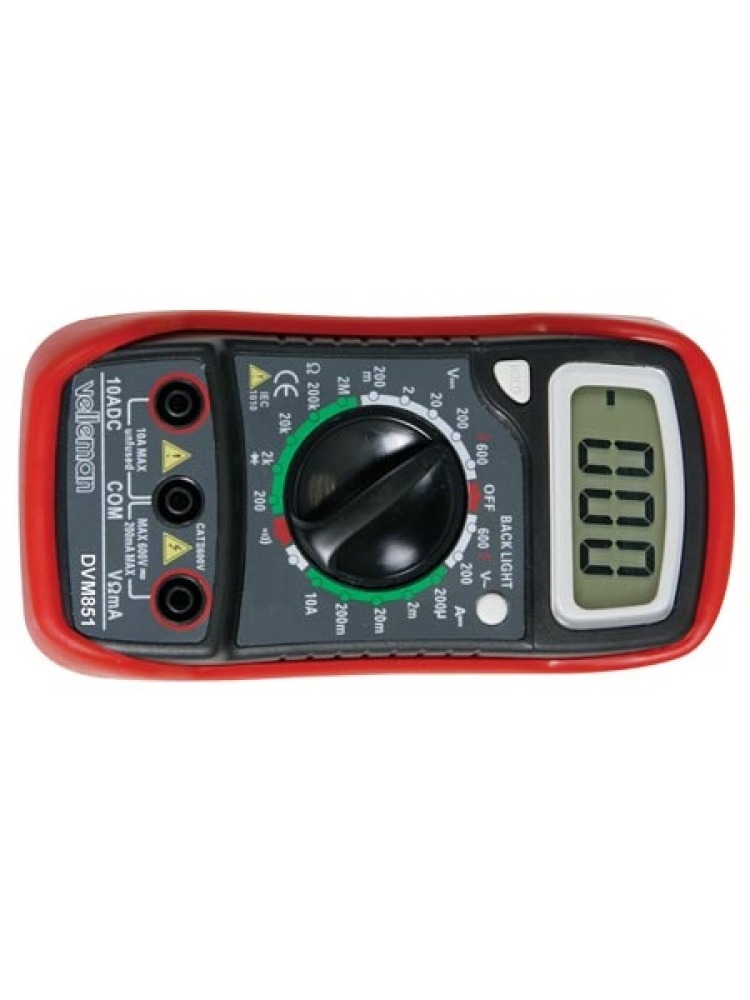

copy of 3 1 2 dmm 10a hold function backlight

Features

* DMM with automatic polarity indication and 3 ½-digit LCD display
* measurements: DC current up to 10A, AC and DC voltage up to 600V, resistance up to 2Mohm
* diode, transistor and continuity test with buzzer
* data-hold function and backlight
* with protection holster
* CAT. II 600V
* Important safety information

Specifications

* DC voltage: 200m/2/20/200/600V
o basic accuracy: ± 0.5% of rdg ± 2 digits for 0.2V range / ± 0.8% of rdg ± 2 digits for 2V~200V range / ± 1.0% of rdg ± 2 digits for 600V range
o input impedance: 1Mohm
o maximum input: 600V
* AC voltage: 200/600V
o basic accuracy: ± 1.2% of rdg ± 10 digits
o input impedance: 1Mohm
o frequency range: 40 to 400Hz
o maximum input: 600V
* DC current: 200µ/2m/20m/200m/10A
o basic accuracy: ± 1.0% of rdg ± 2 digits for 200µA~20mA range / ± 1.5% of rdg ± 2 digits for 0.2A range / ± 3.0% of rdg ± 2 digits for 10A range
o overload protection: F500mA/250V - 10A/250V
* AC current: -
o basic accuracy: -
o overload protection: -
* resistance: 200/2k/20k/200k/2M
o basic accuracy: ± 0.8% of rdg ± 2 digits for 200 ohms~200k range / ± 1.0% of rdg ± 2 digits for 2M range
o overload protection: 250VDC or rms AC on all ranges
* capacitance: -
o accuracy: -
* inductance: -
o accuracy: -
* frequency: -
o basic accuracy: -
o overload protection: -
* temperature: -
o basic accuracy: -
* overrange: yes '1'
* continuity buzzer: yes
* transistor test: yes
* diode test: yes
* low-battery indication: yes
* maximum display: 1999
* LCD display size: 45 x 18mm
* ranging mode: manual
* data hold: yes
* backlight: yes
* dimensions: 68 x 138 x 30mm
* weight (with battery): -
* power supply: 1 x 9V 6LR61 battery (incl.)
* packing: blister
* accessories: -
* auto power-off: no
