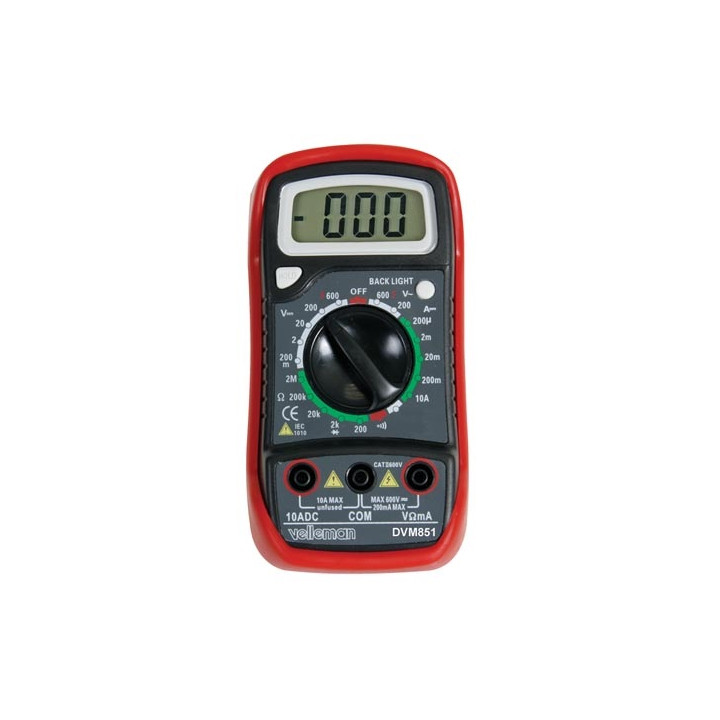

3 ½ dmm 19 ranges

Features

DMM with automatic polarity indication and 3 ½-digit LCD display
measurements: DC current up to 10A, AC and DC voltage up to 600V, resistance up to 20Mohm
diode and continuity test with buzzer
CAT. III 600V
Important safety information

Specifications

DC voltage: 200m/2/20/200/600V
basic accuracy: ±(0.5% of rdg + 4 digits) for 0.2~200V range / ±(1.0% of rdg + 5 digits) for 600V range
input impedance: 1Mohm
maximum input: 600V
AC voltage: 200/600V
basic accuracy: ±(1.2% of rdg + 10 digits)
input impedance: 1Mohm
frequency range: 40 to 400Hz
maximum input: 600V
DC current: 200µ/2m/20m/200m/10A
basic accuracy: ±(1.5% of rdg + 3 digits) for 200µA~0.2A range / ±(2.0% of rdg + 5 digits) for 10A range
overload protection: 200mA/250V - 10A/250V (5 x 20mm)
AC current: -
basic accuracy: -
overload protection: -
resistance: 200/2k/20k/200k/20M
basic accuracy: ±(0.8% of rdg + 5 digits) for 200 ohms range / ±(0.8% of rdg + 3 digits) for 2k~200k range / ±(1.0% of rdg ± 15 digits) for 20M range
overload protection: 250VDC or peak AC on all ranges
capacitance: -
accuracy: -
inductance: -
accuracy: -
frequency: -
basic accuracy: -
overload protection: -
temperature: -
basic accuracy: -
overrange: yes '1'
continuity buzzer: yes
transistor test: no
diode test: no
low-battery indication: yes
maximum display: 1999
LCD display size: 55 x 27mm
ranging mode: manual
data hold: no
backlight: no
dimensions: 145 x 85 x 30mm
weight (with battery): ±170g
power supply: 1 x 9V 6LR61 battery (incl.)
packing: blister
accessories: manual / test leads / battery
auto power-off: no
