Interruttore invertitore verticale dpdt on (on) interruttore interruttori a leva interruttore

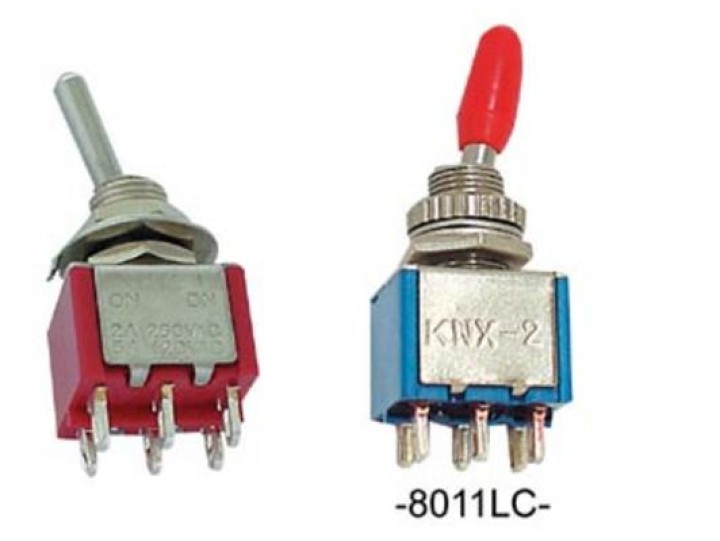

REF : 8011LC
2,25 €
Specifications
switching position:
2-3, 5-6: ON
OPEN: NONE
2-1, 5-4: ON
remark: 2A / 230Vac
contact rating: 5A with resistive load of 120Vac or 28Vdc
electrical life: 50000 make-and-break c
:
711 Articoli
Emplacement : -()R1L1

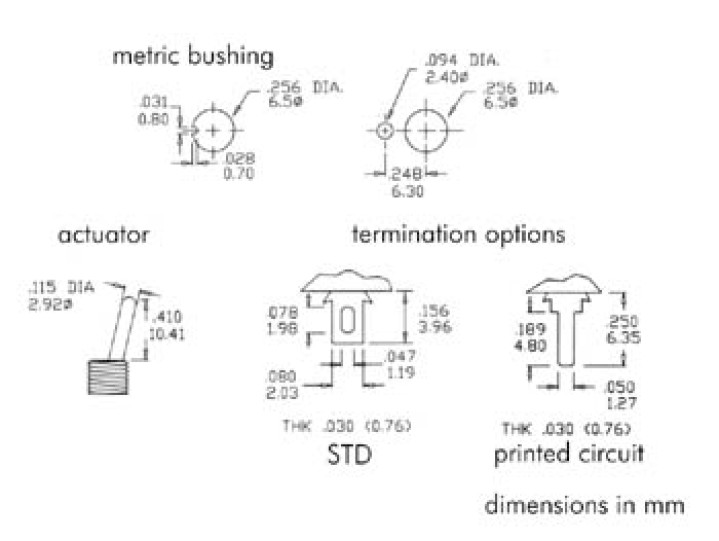

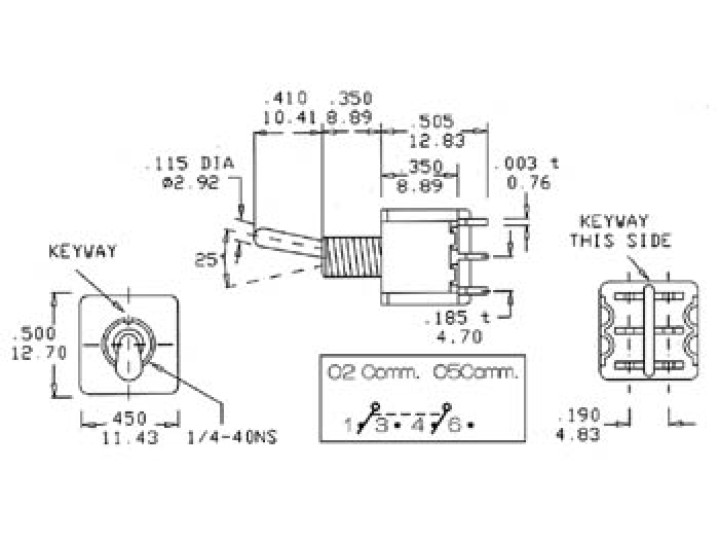

Dimension 35x13x11mm . Weight 5gr
Specifications switching position: 2-3, 5-6: ON OPEN: NONE 2-1, 5-4: ON remark: 2A / 230Vac contact rating: 5A with resistive load of 120Vac or 28Vdc electrical life: 50000 make-and-break cycles at full load contact resistance: initially max. 10mohm at 2-4Vdc / 10mA for both coin silver and gold-plated contacts insulation resistance: min. 1000Mohm dielectric strength: 1000Vrms at sea level operating temperature: -30°C to +85°C materials: case: melamine or diallyl phthalate (DAP) toggle handle: brass, chrome-plated bushing: brass, nickel-plated housing: stainless steel end contact: coin silver, silver-plated end terminal: brass, silver-plated centre contact and terminal: brass, silver-plated
Specifications switching position: 2-3, 5-6: ON OPEN: NONE 2-1, 5-4: ON remark: 2A / 230Vac contact rating: 5A with resistive load of 120Vac or 28Vdc electrical life: 50000 make-and-break cycles at full load contact resistance: initially max. 10mohm at 2-4Vdc / 10mA for both coin silver and gold-plated contacts insulation resistance: min. 1000Mohm dielectric strength: 1000Vrms at sea level operating temperature: -30°C to +85°C materials: case: melamine or diallyl phthalate (DAP) toggle handle: brass, chrome-plated bushing: brass, nickel-plated housing: stainless steel end contact: coin silver, silver-plated end terminal: brass, silver-plated centre contact and terminal: brass, silver-plated
