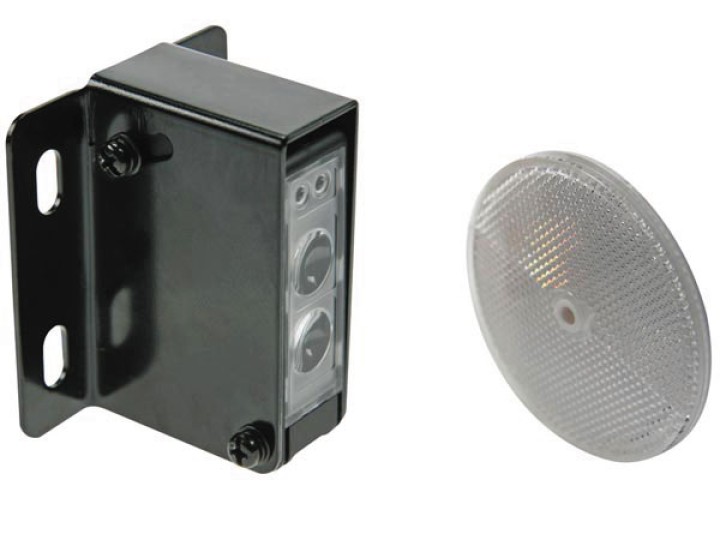

REF : I10220
Features * universal AC/DC input voltage * water-resistant according to IP-66 * N.O. output * ±1.8m of cable * mounting bracket/screws includedSpecifications * de
Emplacement : -()R4F3
Dimensions: 20x39x63mm
Features
* universal AC/DC input voltage
* water-resistant according to IP-66
* N.O. output
* +-1.8m of cable
* mounting bracket/screws included
Specifications
* detection method: retro-reflection
* sensing range: 10m
* input voltage: AC/DC 12~250V +- 10%
* response time: 5 - 100ms
* emitting element: IR LED
* operation indicator: yellow LED (turn on when beam is broken)
* dimensions: 20 x 39 x 63mm
* current consumption: +-50mA
* output method: relay output
* contact current: 1A/250VAC
* illumination:
o lamplight: < 10000lux
o sunlight: < 30000lux
* connection method: multicore cable (brown/blue/white/black/grey)
* noise resistance: 1500Vpp/1µs
* housing material:
o case: PC
o lens: PC
* operating temperature: -10° to +55°C
* water-resistant: IP-66
