Professional 2.4GHZ 4W Wifi Wireless Broadband Amplifier Router Power Range Signal Booster For Wifi Router

Professional 2.4GHZ 4W Wifi Wireless Broadband Amplifier Router Power Range Signal Booster For Wifi Router
Description:
This 4W wifi signal booster MS-4W is released by izonemall New, High quality with reasonable price that you worth to buy. it can improve your home or anywhere your router can not cover, boost the wireless signal to every corner, so that you can communicat fluently, easy installation and operate it even you can hang up it with 2 hole , compact and very good helper to control your smart home equipment for instance : ip camera , Air Conditioning, washer, cooker, light and so on. bring you compatible life , ok. go buy it now and begain to enjoy it. 2 year warranty promised.

Key Features:
20x the powre, improving the link quality and coverage of certified WLAN devices
2.5dB ultra-low noise
Wide 6V to 16v operating input voltage range
working with certified IEEE 802,11 b/g/n wireless Lan devices
Simply plug and play, no software is required

Specification:
Frequency range : 2.4~2.5Ghz
Operating voltage : 6~16V
Receiving gain: 10dB +/- 1
Transmission gain : 13dB +/- 1
Input trigger power : Min 3dBm Max : 20dBm
Maximum output Power : 36dBm (4W)
EVM : 3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20Mhz
DC supply current : 435mA@pout 28dBm 9V
Noise figure: <2.4dB
TX/RX switch time delay : 1us
LED indicator : Transmitter : Green, Receiver : Red
Operating ambient temperature : -40 deg +70 deg
operating humidity : up to 95% rel. humidity
Dimension : 82x50x21mm
Weight: 0.25kg net

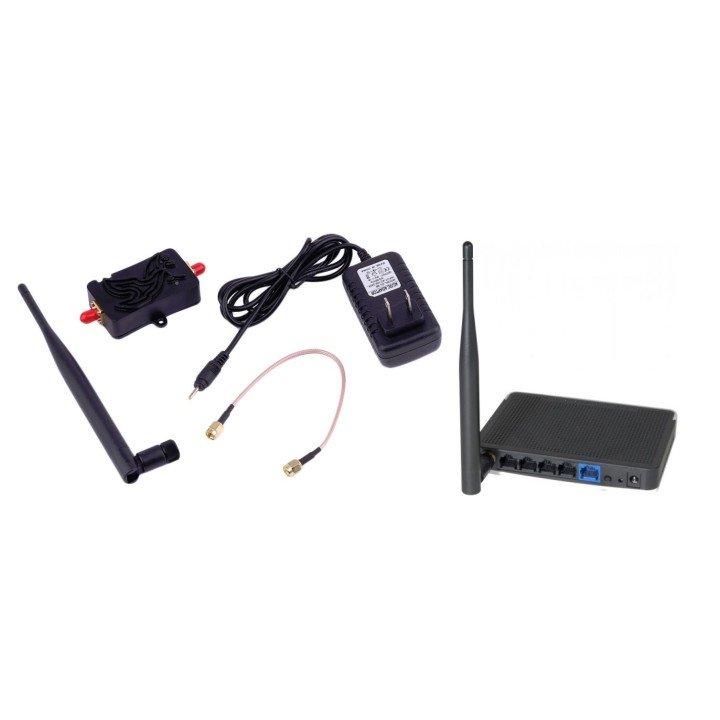

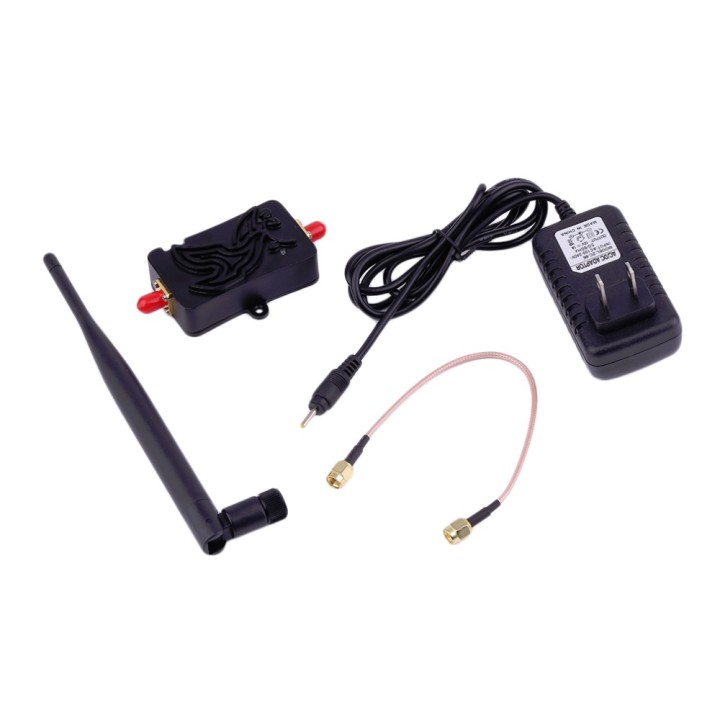

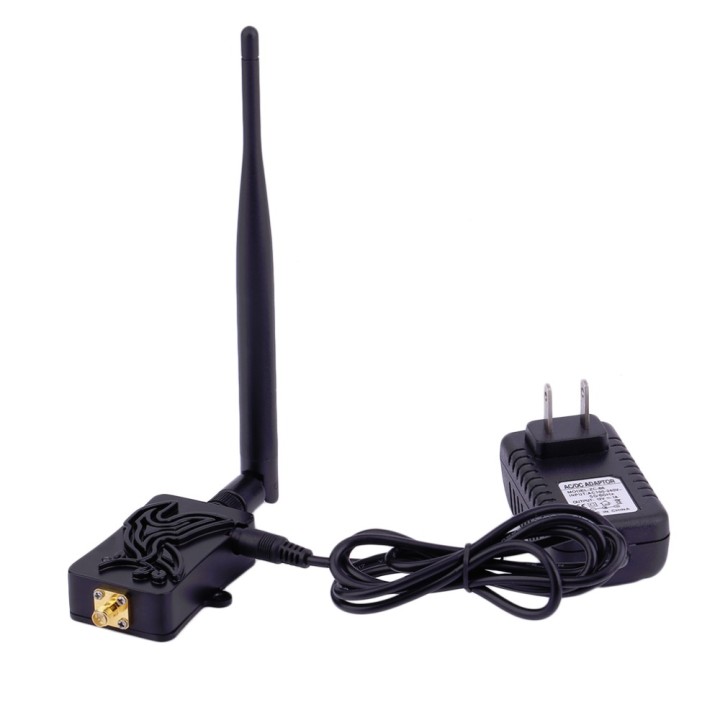

Package include:
1x 4W WiFi Signal Booster,
1x 9V 1A Power adapter,
1x 20cm RG316 Cable,
1x 5dBi Antenna,
1x Manual
