7 Inch 12V/24V Auto Car Monitor TFT LCD 5" HD Digital 16:9 800*480 Screen For Reverse Rear View Camera DVD VCD

7 Inch 12V/24V Auto Car Monitor TFT LCD 5" HD Digital 16:9 800*480 Screen For Reverse Rear View Camera DVD VCD

This is a multi-purpose LCD monitor for VCD/DVD/GPS/car rearview camera. With delicate design, stable performance, clear picture and excellent color effect. 9V-36V high-quality 7 inch car LCD monitor helps in preventing accidents while driving in reverse by avoiding children, traffic, pedestrians, toys and pets while backing out of the driveway or parking space.

Features:
7 INCH TFT/LED LCD MONITOR:
With 7" big screen to show you the image from the camera, providing better visual effects than 4.3"/3.5" monitor.
Support 800*480 pixels, digital module has higher resolution and clearer picture than analog module. The color of digital module can be more realistic than analog module.
Working perfectly with car DVD, VCD, GPS, camera, STB, satellite receiver, and other video equipment.
The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing your car; and it will close itself after backing. Screen will cut to rearview camera automatically while you're backing the car and change back to the original scene after backup.

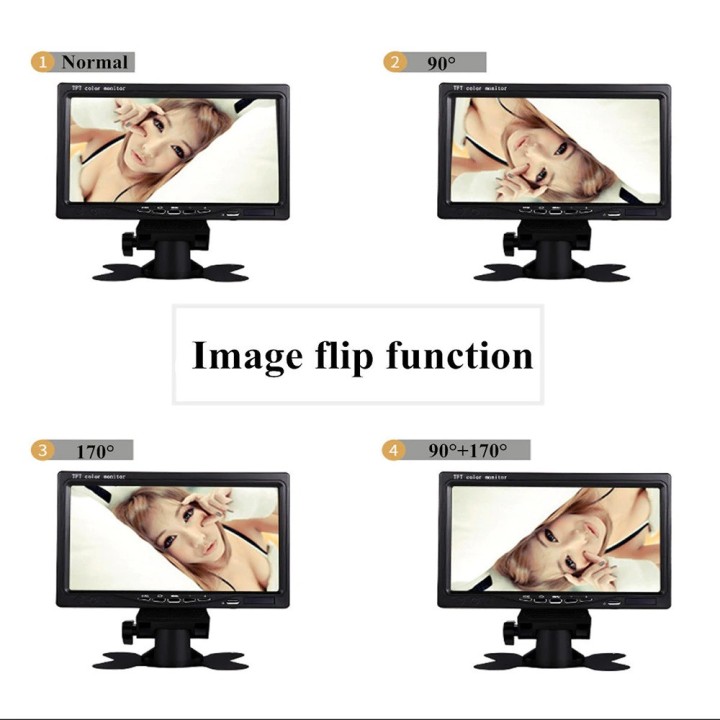

The screen could be adjustable by rotating the support stand to view different angle. For easy installation and stand alone.

Specifications:

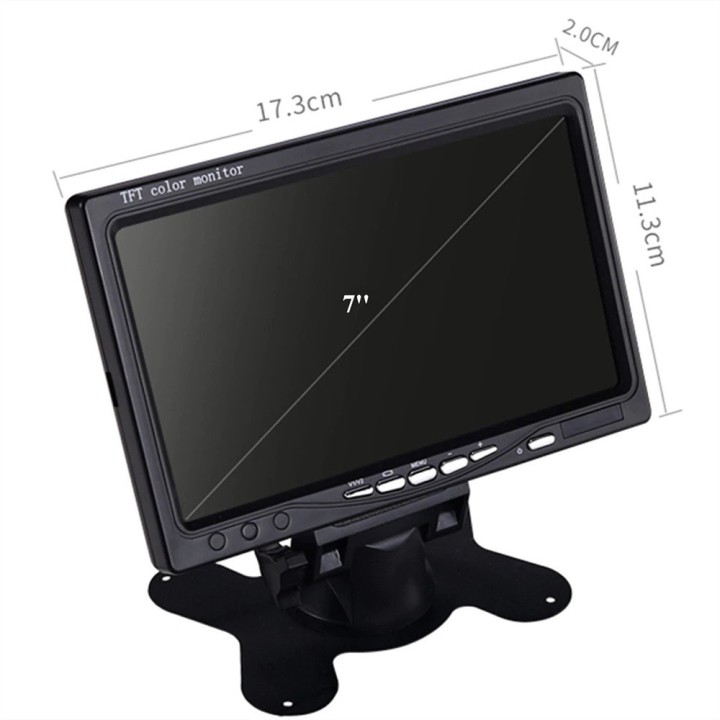

7" CAR TFT LCD MONITOR
Model: IV-6800-HD
Screen Size: 7 inch
Aspect Ratio: 16:9
Luminance: 250cd/m
Resolution: 800*480*RGB
Audio & Video: 2 ways video inputs
System: PAL&NTSC automatically
Voltage: 9V~36V
Language: Russian/English/French/Simplified Chinese/Traditional Chinese/Germany.etc.

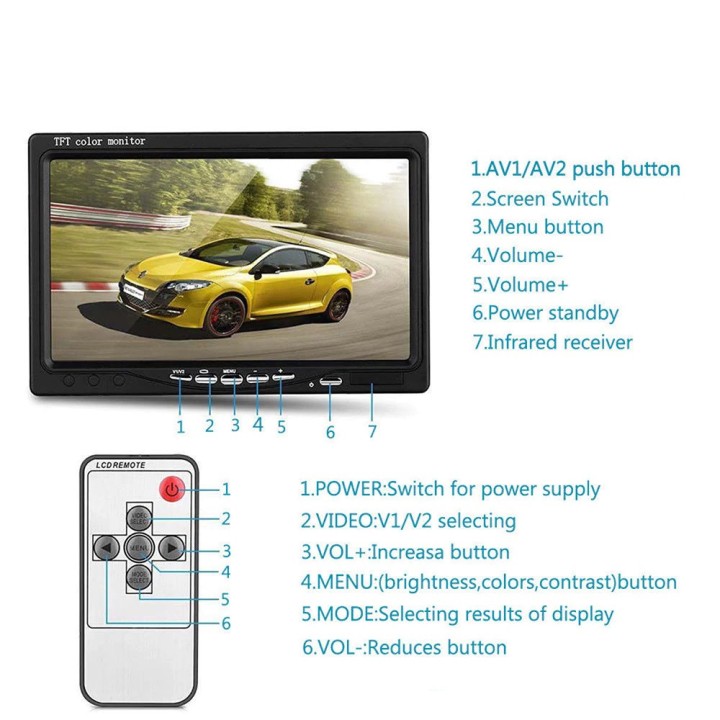

OSD Menu: Display menu, brightness, color, contrast adjustable
Bracket Accessories: Stand bracket
Sunshade: Yes
Mode: You need switch av1 and av2 to watch them

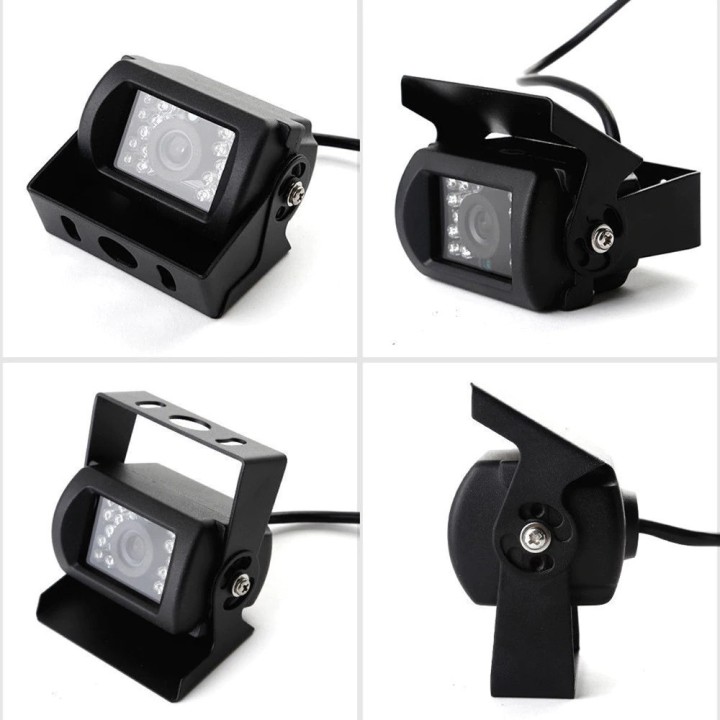

COLOR CCD CAMERA
Pick-up Device: 1/4" High Performance Color SHARP CCD
TV System: Pal(CCIR)
Scanning System:
PAL: 625 lines, 50 Field
NTSC: 525 lines, 60 Field
Len: 2.8mm(Option)
Number of Pixels:
PAL:720(H)*586(V)
NTSC:720(H)*480(V)
Horizontal Resolution: 480TV lines
Scan Frequency: 50HZ; 60HZ
Electronic Shutter: 1/50~1/100(sec);1/60~1/100,000(sec)
S/N Ratio: = 48dB(AGC OFF)
Minimun Illurnination: 0.8LUX/F1.2
BLC: Open
Waterproof: IP67
Shockproof: 10G
Video Output: 1.0Vp-p75O BNC Connector
Synchronous System: Internal Synchronous
Operating Temperature: -20?~+80?
Power Supply: DC9-36V

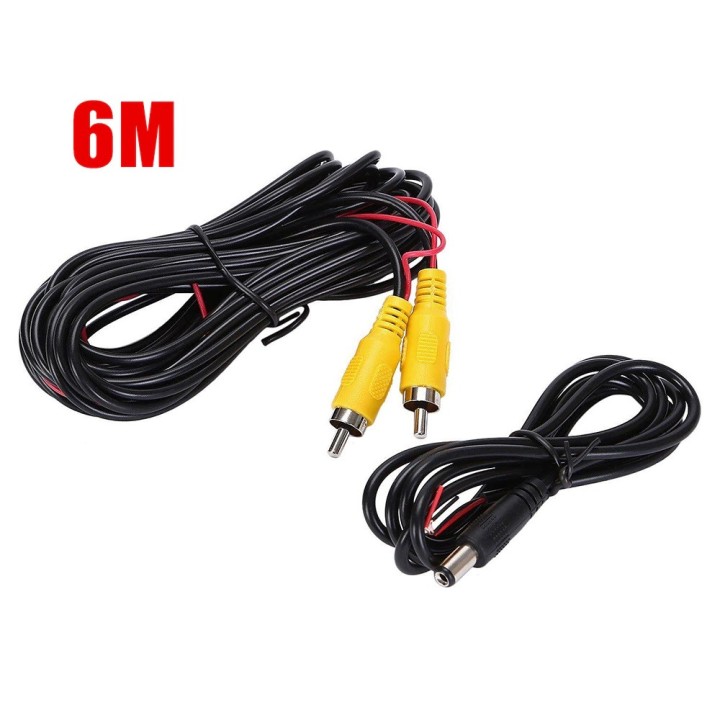

RCA EXTENSION VIDEO CABLE
Color: Black
Size: 6M
Connect Type: RCA
Material: Pure copper cores, PVC

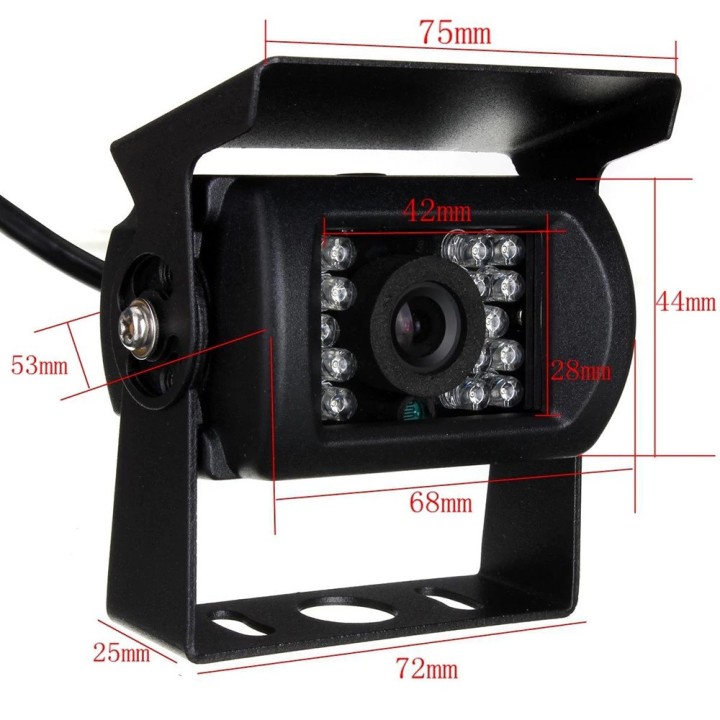

Camera Size: 68 * 44mm / 2.68 * 1.73in
Package Weight: 900g / 31.75ounces
Package Size: 210 * 150 * 85mm / 8.27 * 5.91 * 3.35in

Note:
The CR2302 battery of remote control is not included.

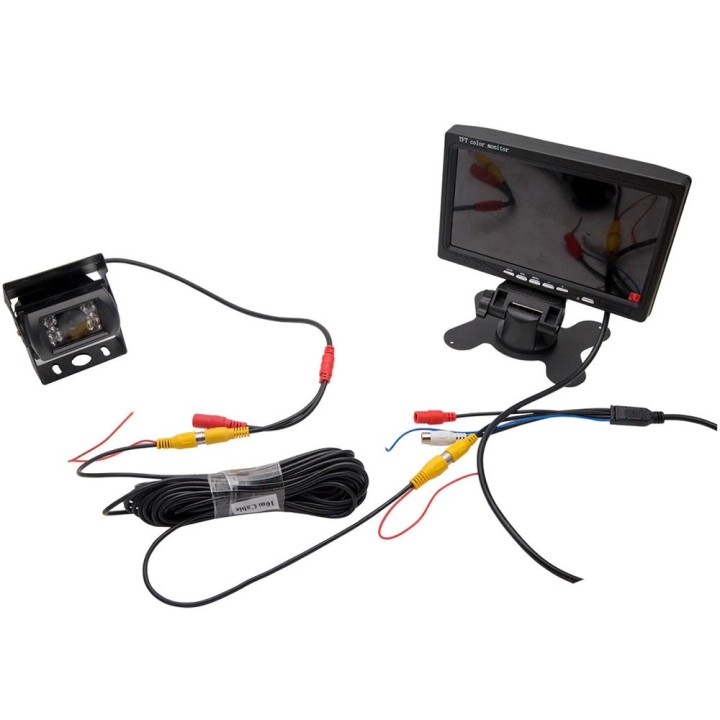

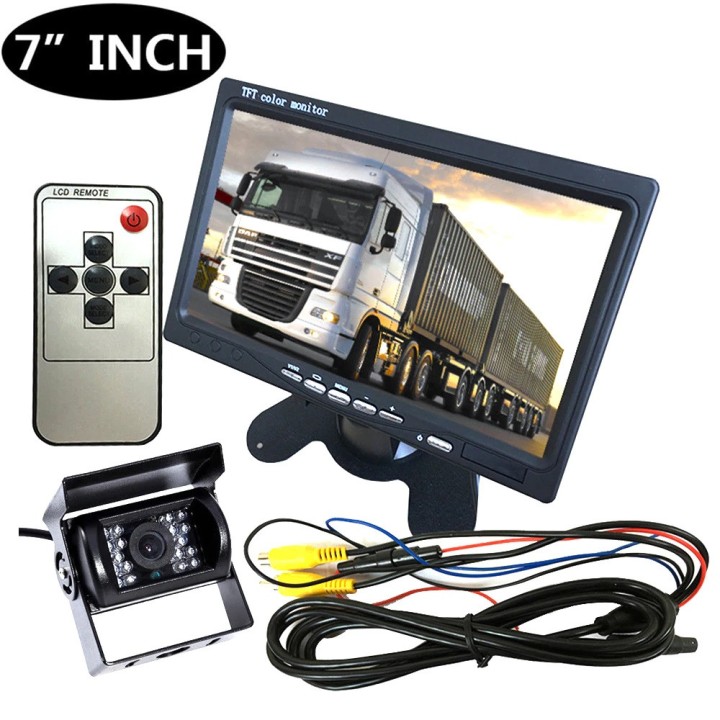

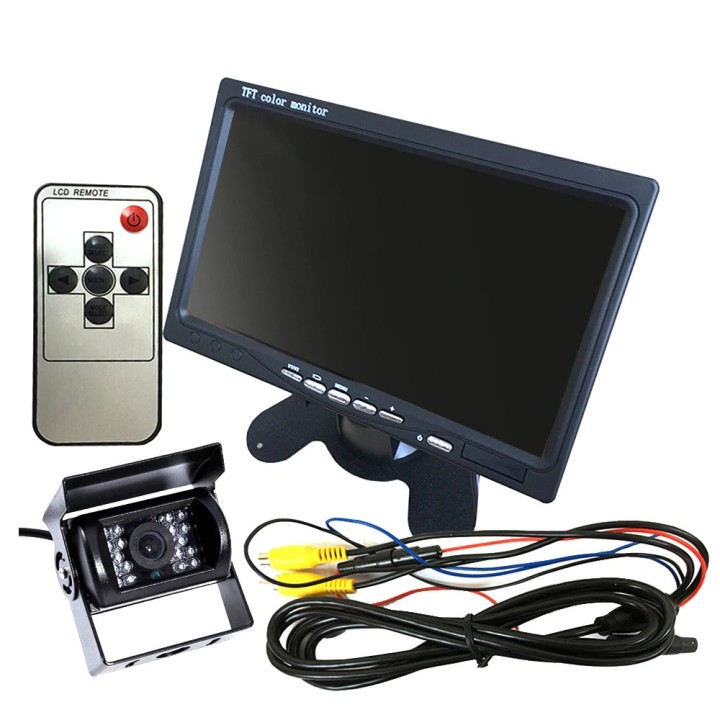

Package List:
1 * RCA Car Reversing Camera(DC9-36V)
1 * 7" Digital TFT LCD Monitor
1 * Mounting Plate
1 * RCA Power Cable for Monitor(DC9-36V)
1 * 6m RCA Video Cable
1 * Power Cable for Camera
1 * Remote Control (Without Battery)
