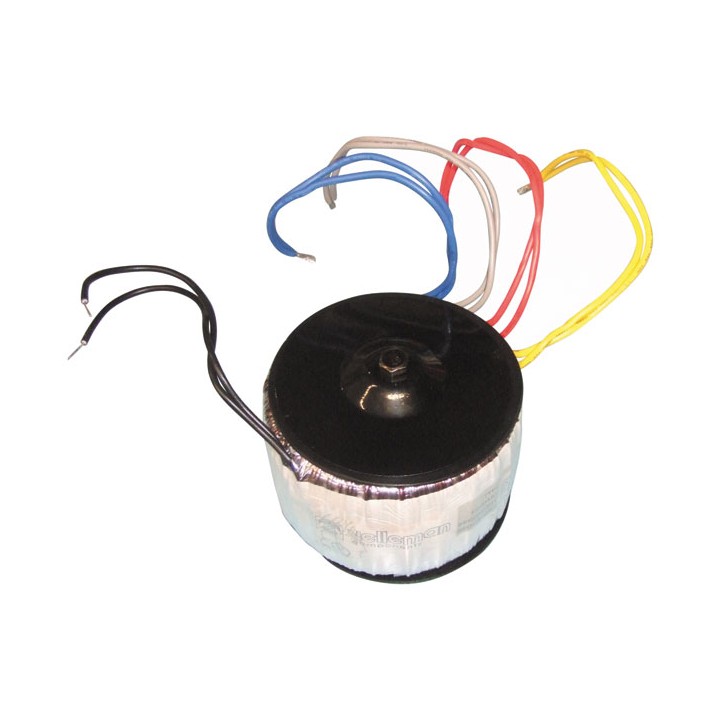

Toroidal transformer 625va 2 x 15v 2 x 20.83a
REF : 62515
€120.43
TRANSFORMERS & COILS > TOROIDAL TRANSFORMERS > 625VA > Features approvals: EN 60742/BS3535 fuse: 130°C thermal fuse Specifications voltage: 2 x 15V current: 2 x 20.83A reg
: 3 Items
Emplacement : -()G5()EUROPE
Security policy
Delivery policy
Terms of Sales
TRANSFORMERS & COILS > TOROIDAL TRANSFORMERS > 625VA >
Features
approvals: EN 60742/BS3535
fuse: 130°C thermal fuse
Specifications
voltage: 2 x 15V
current: 2 x 20.83A
regulation: 4%
weight: 6.50kg
O: 148mm max.
height: 93mm max.
fixing bolt: M8 x 90mm
nut: M8
metal washer: O120mm
rubber washer: O130mm
connections: 200mm PVC, 10mm stripped and tinned leads
primary: 1672 18AWG black - black : 1 x 230V / brown - brown : 1 x 110V
secondary: *red - yellow / *blue - grey (* = start)
primary voltage: 230V / 50Hz
primary-secondary insulation: 500Vdc
secondary-secondary insulation: 500Vdc
insulation category: class A, 105°C
