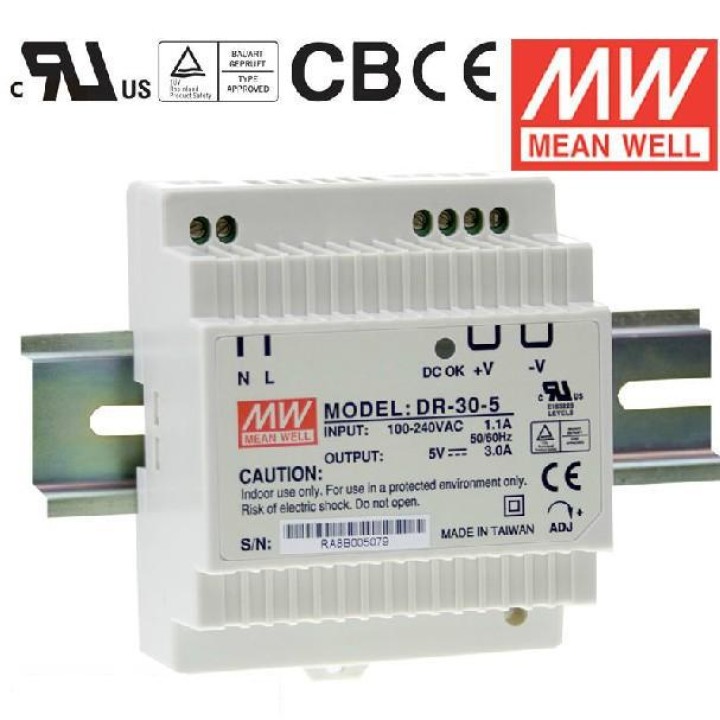

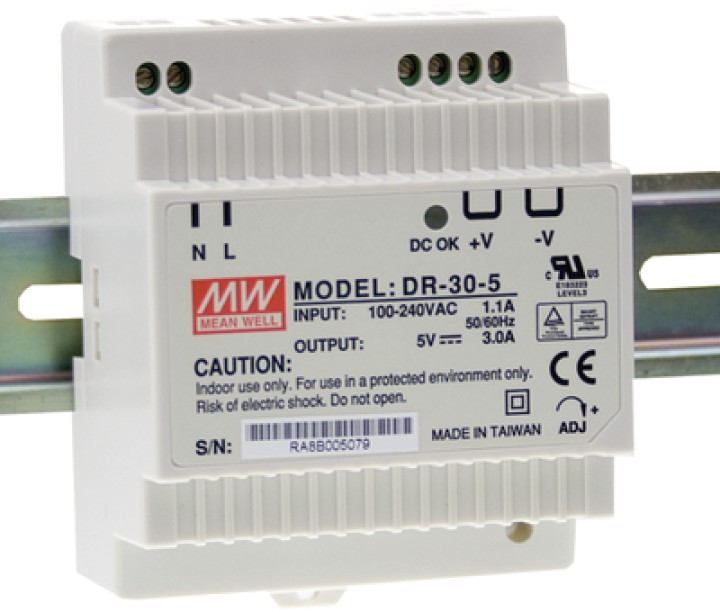

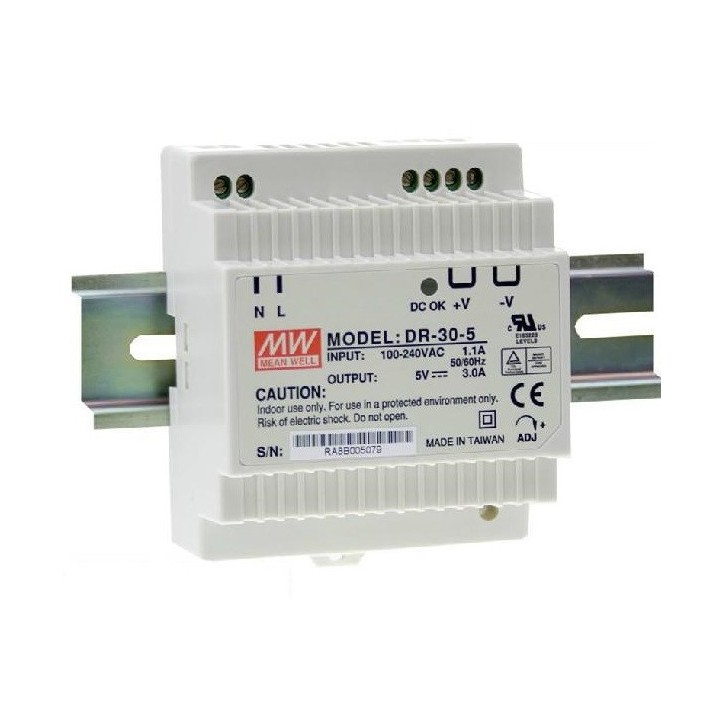

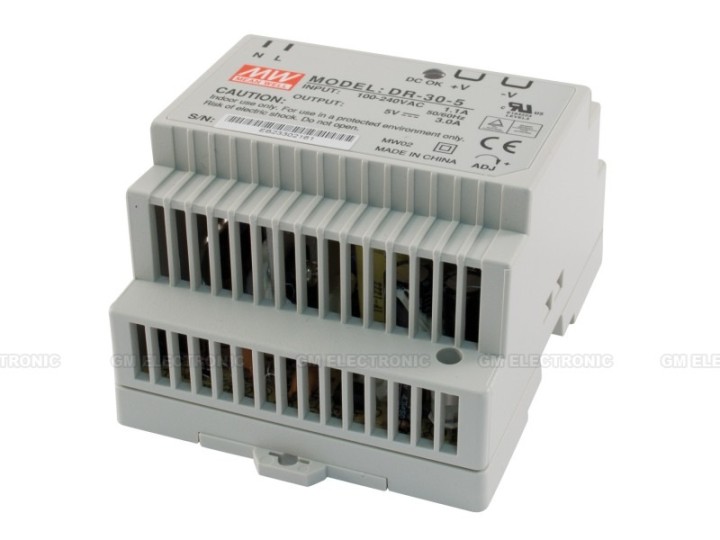

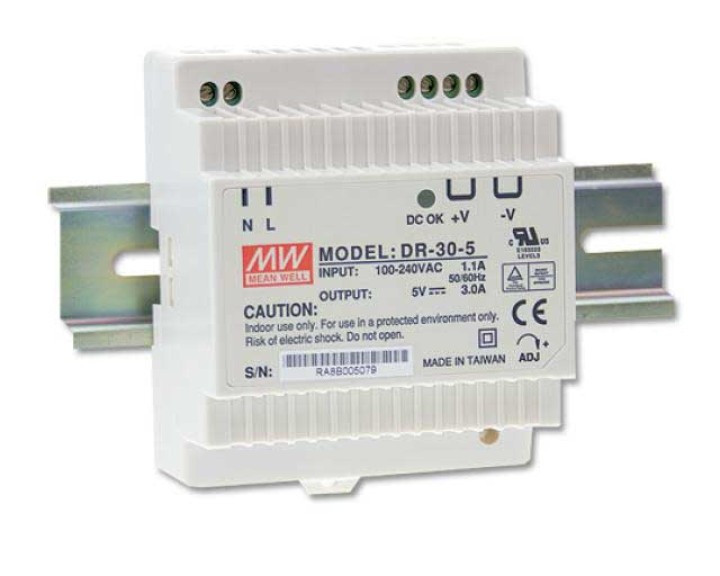

Din rail power supply 30w 5V power meanwell ac dc converter dr-30-5 DR-30W

Features:universal AC input range
Small volume,low weight,high efficiency
Protection:short circuit/over load/over voltage
cooling by free air convection
can be installed on DIN rail: TS-35/7.5or TS-35/15
LED indicator for power on
100% full load burn-in test

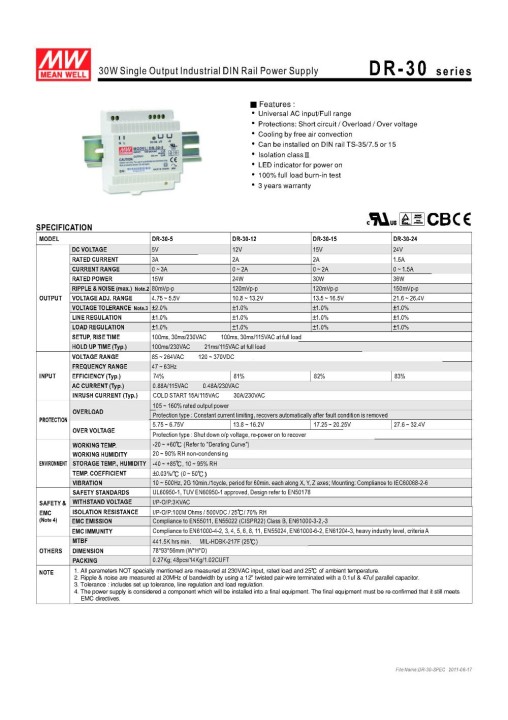

Model DR-30-5
output DC voltage 5V
Voltage tolerance ±2%
Rated current 3A
Current range 0~3A
Rated power 15W
Ripple&noise 80mvp-p
Dcvoltage ADJ.range -9%~+10%
input
Voltage range 90~264VAC,127~373VDC
frequency 47~63HZ
AC current 0.88A/110VAC,0.48A/220VAC
efficiency 75%
Inrush current

Cold start current 15A/115VAC,30A/230VAC

Leakage current < 1mA/240VAC
protection Over load

Rated output power105%~150% start over load protection

protection type:hiccup mode,auto-recovery after fault condition is removed

over voltage 6.8~8.2V
protection type:cut off output voltage,diode clamp

environment
Working temp,humidity -20°C~+60°C,20%~90%RH

Storage temp,humidity -40°C~+85°C,10%~95%RH non-condensing

Withstand vibration10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

safety Withstand voltage
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance
I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fit standard
Safety standard Compliance to UL1012

EMC standard Compliance to EN55022,CLASSA

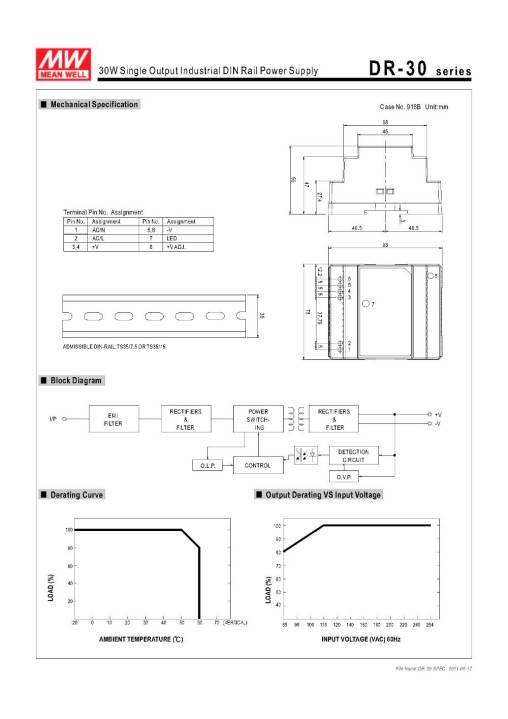

Dimension78*93*56mm(L*W*H)

Weight/packing 0 .27kg/48pcs/14kg/0.03m³/1.07CUFT

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25°Cof ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
