Detector has ultrasound and high test voltage detector ultrasound extreme reactionary its electricity ultrasounds mouse kemo - 1

Detector has ultrasound and high test voltage detector ultrasound extreme reactionary its electricity ultrasounds mouse

REF : ULTRASON

€39.80
Marten Repellent Tester
Testing instrument to prove existing ultrasonic sounds (15…29 kHz) and high voltage (150...700 V=) at the contact plates. Thus the function of ult

Volume discounts

5
€37.81
10
€35.82
20
€31.84
50
€29.85
100
€27.86
200
€25.87
500
€23.88
1000
€21.89
: 11 Items

Emplacement : -()R1B2

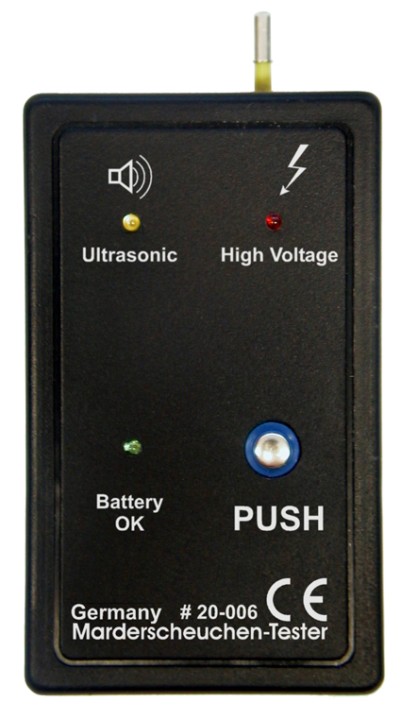

Marten Repellent Tester
Testing instrument to prove existing ultrasonic sounds (15…29 kHz) and high voltage (150...700 V=) at the contact plates. Thus the function of ultrasonic and / or contact plate marten repellents may be tested. O-perating voltage: 9 V battery.

Circuit description:
Ultrasonic sounds as far as existing in the range of 15...29 kHz are recorded and indicated via a light-emitting diode by means of the ultrasonic microphone installed at the front side (beside the high voltage contact pins). In case of high voltage contact plate-marten repellents the existence of a voltage of > 150 V is indica-ted via a light-emitting diode upon touching a contact plate with the test pin.

Use as directed:
Testing instrument to check the correct function of ultrasonic marten and vermin repellents as well as high voltage-contact plate-marten repellents in vehicles.

Setting into operation:
Please install a commercial 9 V block battery into the instrument. If you press the push-button "push", the instrument switches on and the LED „battery OK" lights up. If this LED does not light up, the batte-ry is not connected or empty.
When holding the front side (test pin) of the instrument approx. 10...40 cm in front of the loudspeaker opening of an ultrasonic instrument and pressing the push-button "push" at the same time, the LED "ultrasonic" lights up. This LED lights up, if the ultrasonic sound is present. In case of marten repel-lents with continuous tone or increasing and decreasing tone in the range of 15...29 kHz, this LED lights up continuously. In case of marten repellents with pulsating ultrasonic tone, the LED "Ultrasonic" always flashes when the ultrasonic tone is just pulsating.
If you want to test a marten repellent with high voltage-contact plates in a car, touch the bare high vol-tage contact plates in the car using the contact pin at the testing instrument. Press the push-button "push" at the same time and with the other hand touch a bare earth at the car. You must touch the push-button "push" with a bare finger and with your bare hand (without gloves) a bare metal part at the car which is connected with car earth. If there is high voltage at the contact plate, the light-emitting diode „High Voltage" lights up. Important: The instrument only indicates high voltage, if the contact plates are loaded with a DC voltage in the range of 150...700 V (a technique usual with mar-ten repellents). It does not react to contact plates which only receive very short high voltage impulses!

Important notes:
1.The testing instrument can only prove that there are ultrasonic sounds in the range of approx. 15...29 kHz. A comparison of capacity between different marten repellents cannot be made by comparing the distance between the marten repellent and testing instrument! The radiation cha-racteristics are different and the microphone is not linear!
2.An electrically perfect connection must be made when testing the high voltage contact plates. If necessary, the contact plates have to be cleaned, so that the test pin has a good contact. The earth connection to the car is made through the body of the testing person. There is a metal but-ton on the push-button "push" which must be touched with the bare finger. An electrically con-ductive connection to the car earth must be produced with the other hand. For this purpose a clean, bare metal part at the car which is connected with the car chassis must be touched. This is not harmful to the body, as only a static connection takes place. The resistance of connection in the instrument amounts to 36,000,000 ohms.
3.The testing instrument is only suitable for the above mentioned tests of marten repellents! It must not be used for other electrical tests such as e.g. house electricity or at the ignition system in the car!!!!

Technical data:
Operating voltage: 9 V battery
Current consumption operation: 10...15 mA
Battery check: automatically, if the instrument is switched on
Frequency range: reacts to ultrasonic sounds in the range of 15...29 kHz (- 20 dB)
Sensitivity: at 23 kHz approx. 40 dB
Series resistor high voltage-tracer pin: 36 M ohms
Dimensions: approx. 100 x 60 x 25 mm
kemo
ULTRASON
11 Items
