REF : EOL400C
Emplacement : R1H3

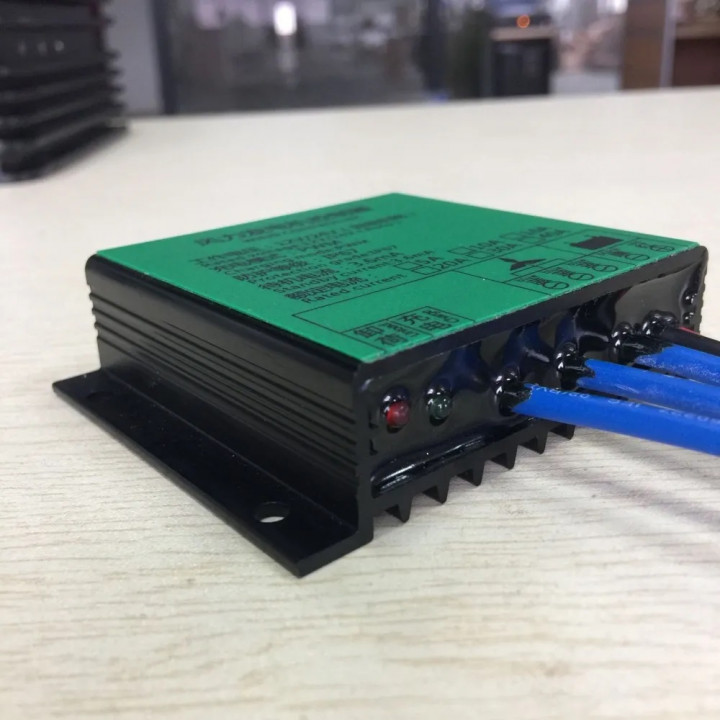

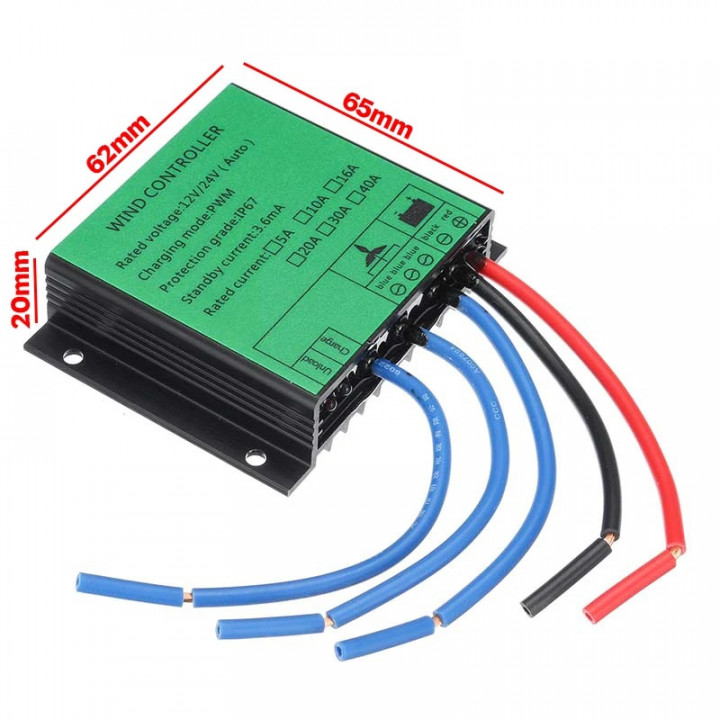

Controller Charge Regulator wind battery pwm turbine 400W 12V 24V 10a 16A wind generator
PWM automatic wind charge controller, wind turbine generator, high heat dissipation design, free energy, 400W, 12V, 24V
Wind turbine charge controller pwm, 12V, 24V, Auto, Small windmill generator 100W-3000W
Notice
1. Firstly, please connect the battery. Second, connect the wind turbine. If you connect the wind turbine before the battery, the controller may be burned if the wind is strong.
2. Please short circuit the 3 wires of the wind turbine to brake the turbine before connecting the turbine to the controller.
3. The controller chooses its working voltage model 12V or 24V by detecting the battery voltage. If the battery is 12V, the controller will work in 12V mode; if the battery is 24V, the controller will work in 24V mode.
Description
1. High quality technical components ensure its stability and reliability
2. Voltage/current control charging ensures that storage batteries are always at the best state of charge.
3. PWM charging efficiently collects energy from the generator to charge storage batteries. Voltage/current control charging ensures storage batteries are
4. Aluminum alloy shell makes it lightweight and has good heat dissipation. Alloy design, small size, good for heat dissipation.
5. Comprehensive protections: overcharge, overdischarge, reverse connection of batteries, overload, lighting, current control, wind turbine automatic braking
6. Comprehensive electrical protection features which make the system more reliable.
7. Anti-water, dust-proof shell make it applicable in various outdoor environments.
Suitable for voltage: DC12V/24V
Maximum wind power: 0-3000W
Waterproof: ip67
Protection: Battery overvoltage protection, wind generator current limit, wind generator brake, speed protection
Indicator: LED
Capacity: Charging Mode
Discharging way: Electrodeless and silent pwm discharging
Operating temperature: -35℃+75℃/85% RH (non-condensing)
1. Safety instructions
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR OPERATING THIS PRODUCT.
1.1 Please make sure the output voltage of the wind turbine matches the rated voltage of the battery.
1.2 Please connect the plus-n-minus cables of the battery first, then connect the three cables of the wind turbine.
1.3 Please be sure to connect the battery and wind turbine to the controller according to this instruction, opposite polarity or wrong connection position will cause abnormal system operation or damage to system components.
2. Wiring

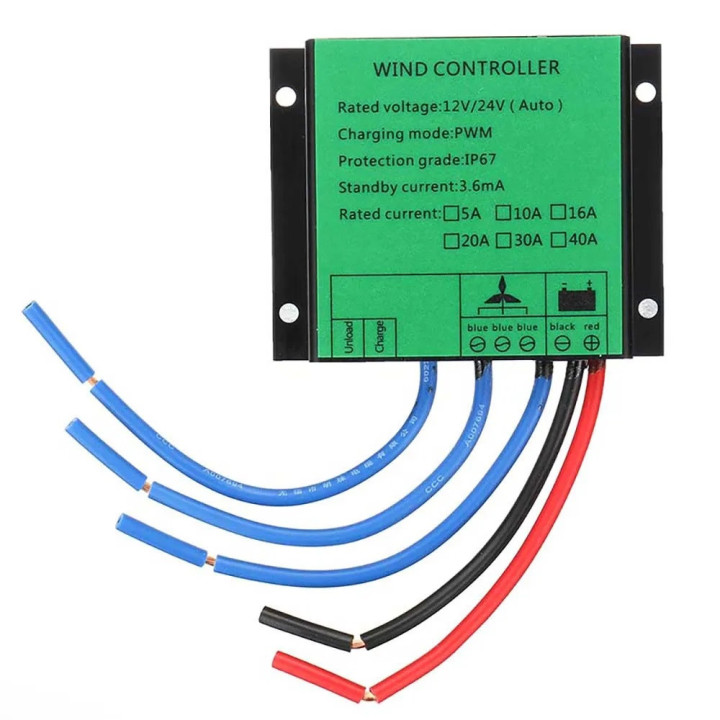

2.1 Connect the “+” and “-” of the battery with the red and black input wires of the controller.
2.2 Connect the three wires from the wind turbine with three blue wires from the controller.
3. Lights
3.1 When the wind turbine indicator light (green) is on, it indicates that the connection of the wind turbine is normal, and it shows the rotation speed of the wind turbine by flickering speed.
3.2 When the brake indicator light (red) is on, it indicates that the controller brakes automatically due to the fully charged battery or the operation of the overcurrent protection function of the controller.
