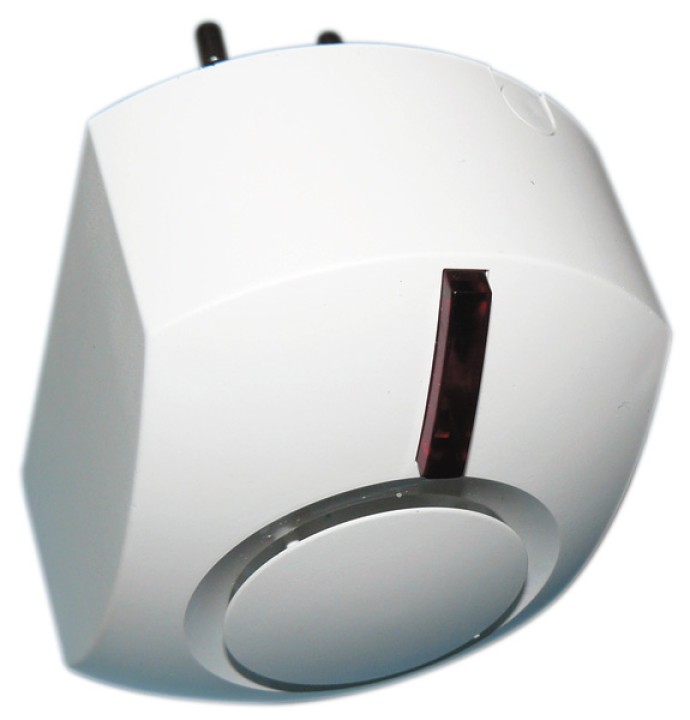

The internal siren JA-80L wireless
This siren is designed for indoor use, it is supplied with 230V and plugs directly into an AC outlet. It is possible to connect several sirens at the plant.
This component is like any other, protected against sabotage.
The JA-80L indoor siren has many feature that can be combined:
- Siren (sounds when intrusion)
- Timing information of the input and output
- Doorbell (function gong melodies with 8 choices)
This component comes with the kit, or can be ordered separately.
The JA-80L is a component of the alarm system 8x Oasis JABLOTRON. The siren communicates strength and is operated via OASIS radio protocol. It can be used as indoor siren alarm signal to sound signals input delay and output and a chime (sensor-triggered). It also sounds an alarm when a burglar was triggered and confirms the actual presence of an intruder in the building by sending a signal when it is disconnected self. It can be used as a standalone device, such as wireless doorbell or calling for help. In combination with a smoke detector or gas it will trigger a warning alarm for two minutes the danger of fire. Join the JA-80L to a central oasis
1. The central switch to service mode and enter 1 to enter the registration mode.
2. Connect the siren to an electrical outlet indicator of the JA-80L turn on and off confirming registration.
3. Cancel the registration by # on the keypad of the system.
Rating:
a) Several sirens can be included in the unit if desired.
b) If the siren does not fit (its indicator will not turn off), check:? A central way she enrollment? The siren is it placed to factory default settings? Otherwise, put the siren to zero.
c) A registered siren produces a siren sound when an alarm is triggered in the plant and can produce audible timers for input and output (programmable in the center).
d) The siren can be simultaneously used as a wireless doorbell or chime sensor-triggered. To do this the doorbell and appropriate detectors must be registered to the siren (after the siren has been included in the plant - see later text).
e) If the siren is disconnected from the outlet when dune alarm, the siren immediately sends a signal to trigger a tamper alarm control panel.
Radio signals from the siren can be checked and measured by the central service mode. To send a test signal of the siren, press the button. Recordings of multiple siren
Specifications JA-80L indoor siren
- Power supply: 230V AC
- Communication frequency: 868 MHz
- Range: 100m
- Volume of siren: 95 dB / 1m
- Operating temperature: -10 ° C to +40 ° C
- Color: White
- Dimensions (W x H x D): 100 x 73 x 39 mm
