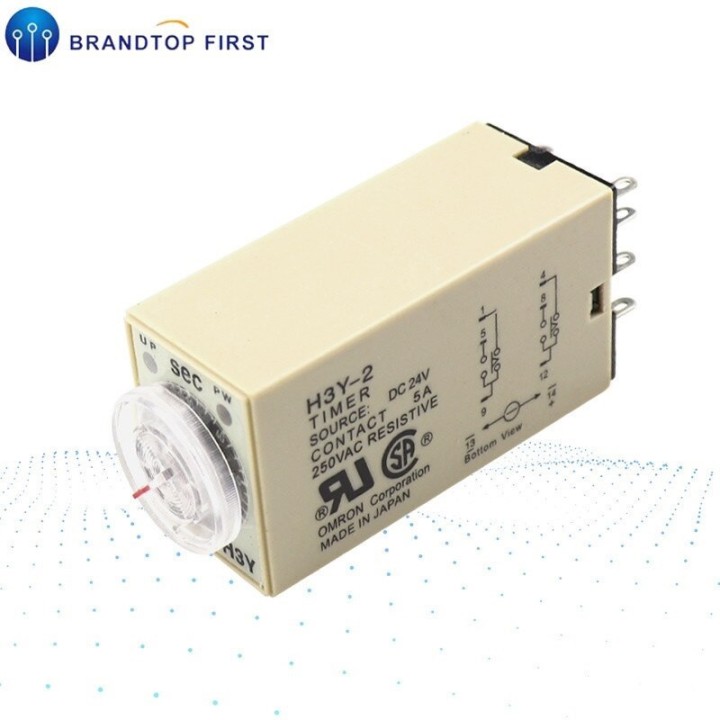

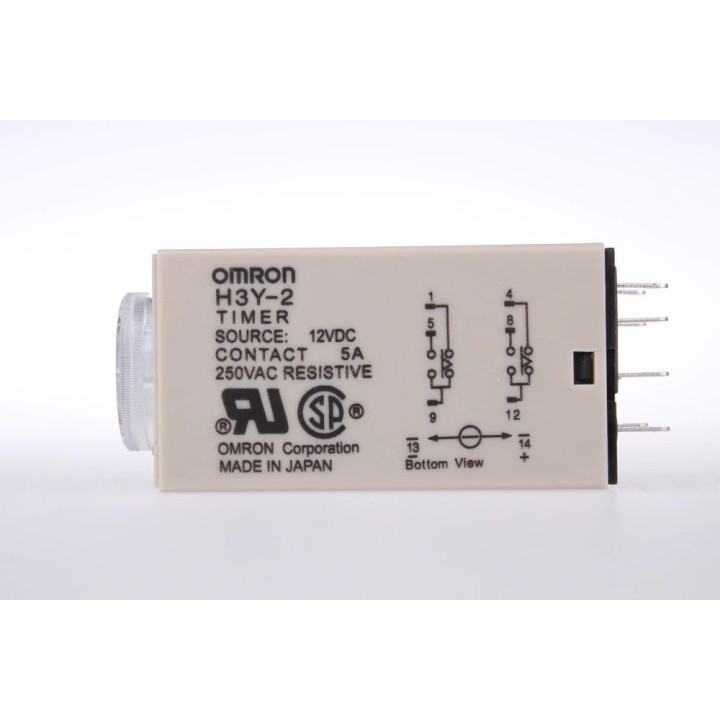

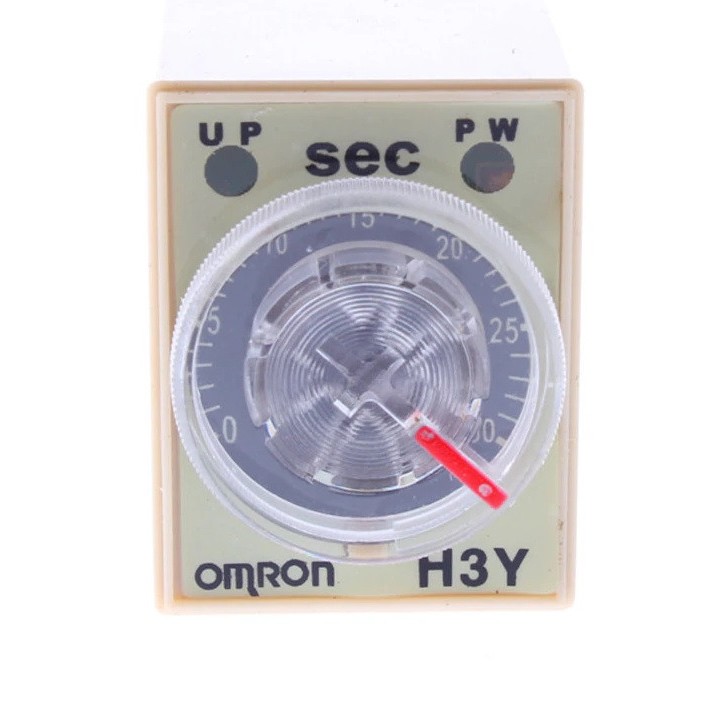

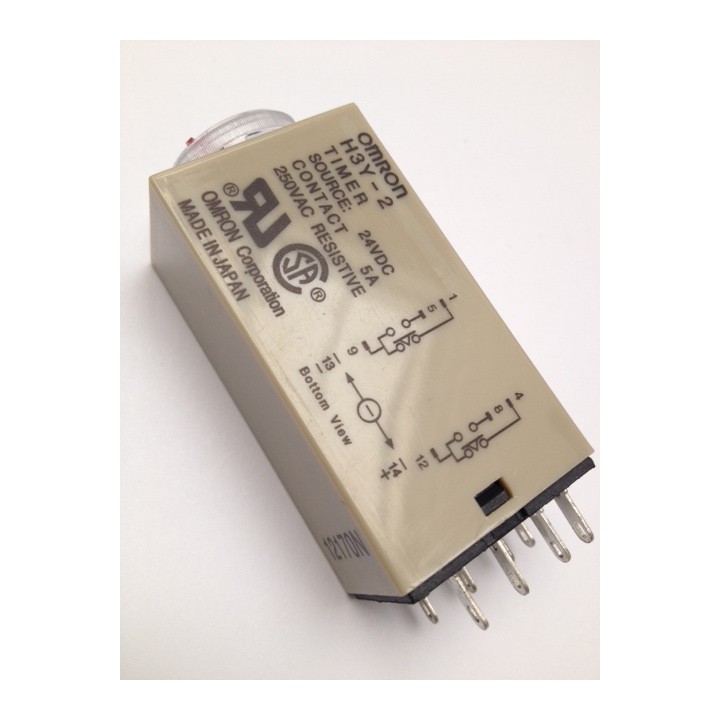

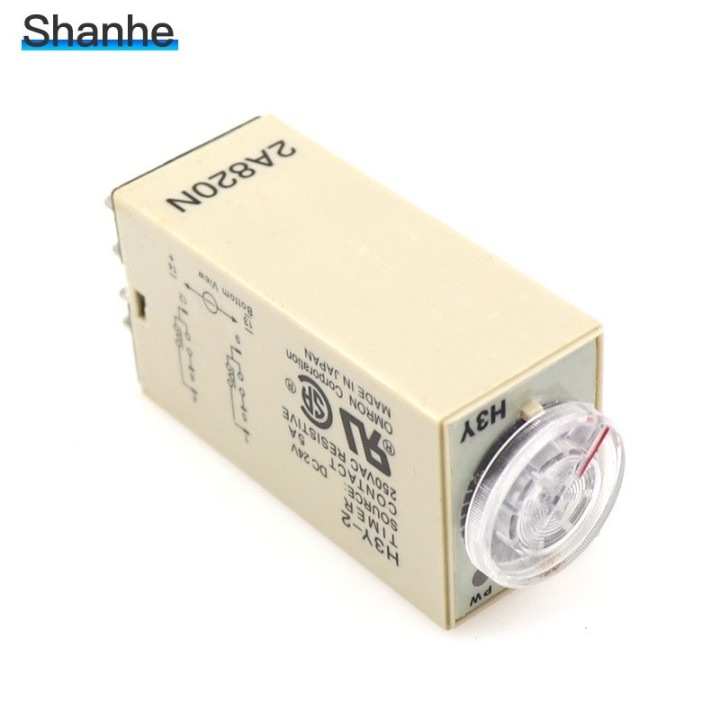

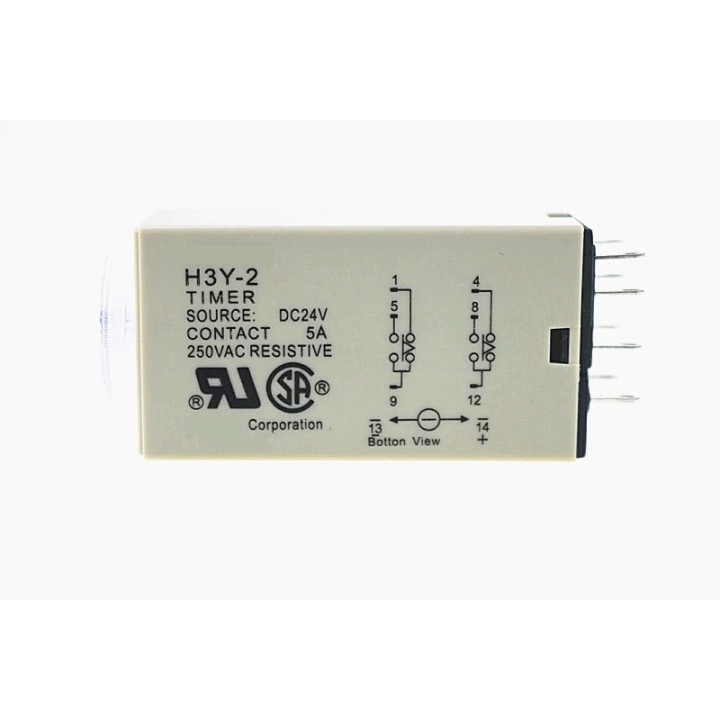

Omron relay 24v 5a h3y-2 timer 1 sec to 30 sec 230v 240v 2 no / nc in work or rest

SpecificationsKnob adjustable time delay (time switch relay) Contact form: On-delay DPDT Delay range: 1s...60minKnob adjustable time delay (time switch relay) specifications Model number H3Y

20,02 €

8 Items

Quantity
Price
5
19,02 €
10
18,02 €
20
16,01 €
50
15,01 €
100
14,01 €
200
13,01 €
500
12,01 €
1000
11,01 €

RT2430S

Description


Specifications
Knob adjustable time delay (time switch relay)
Contact form: On-delay DPDT
Delay range: 1s...60min
Knob adjustable time delay (time switch relay) specifications
Model number H3Y-2
Contact form On-delay DPDT
Delay range 1s...60min
Power consumption 3W max
Setting method Knob
Indication method LED

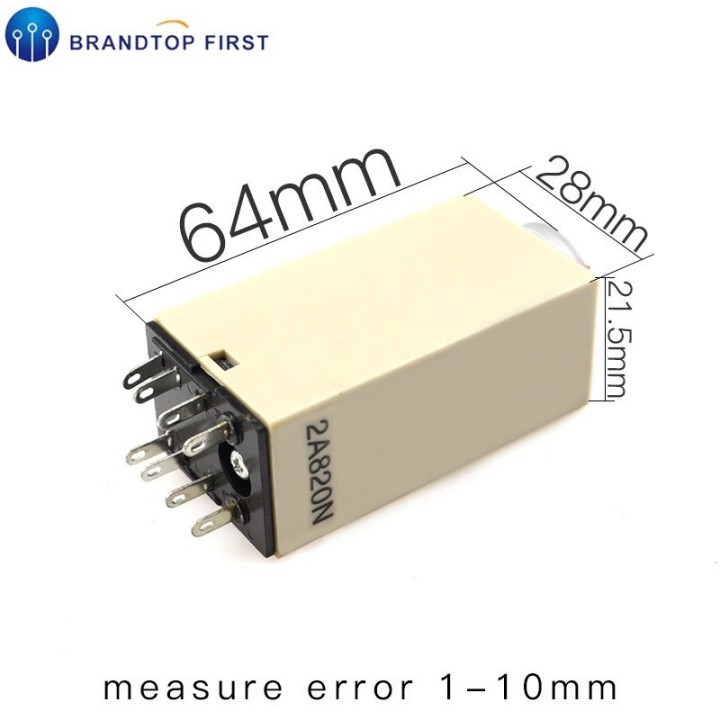

Perforate dimensions (mm) 50.50+1x40.50+1
Contact rating [email protected], [email protected]
Repeat accuracy ±0.3%, ±0.05 sec
Setting error ±0.5%, ±0.05 sec
Supply voltage 12, 24, 36, 48, 110, 220 or 380 Vac; 12 or 24 Vdc
Tolerance
AC -15% ... +10% rated supply voltage
DC -10% ... +10% rated supply voltage
Line frequency 50 ... 60 Hz
Mounting Plug-in socket

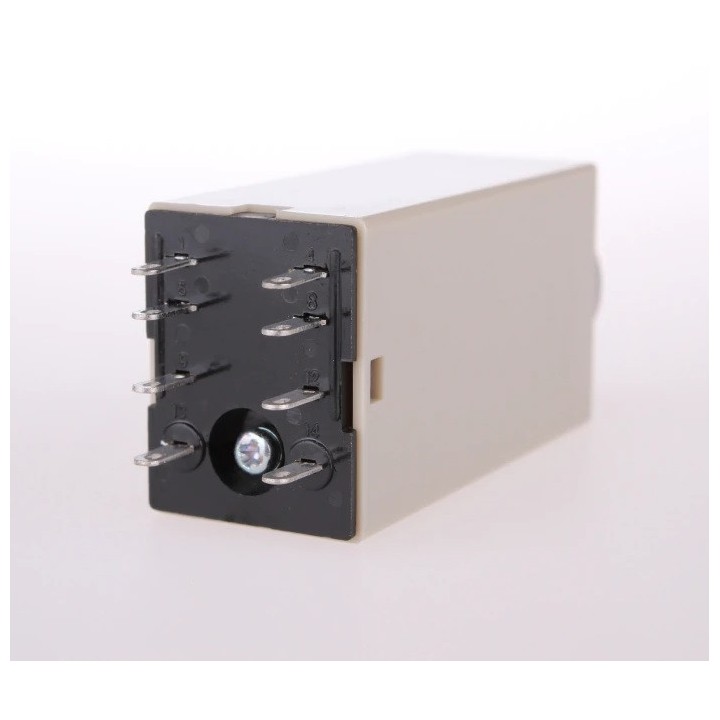

Termination Octal plug-in (8 pin)
Life Mechanical--1x106; Electrical--1x105
Operating temperature 0 to 50 °C (32 to 122 °F)
Operating humidity 95% RH max, non-condensing
