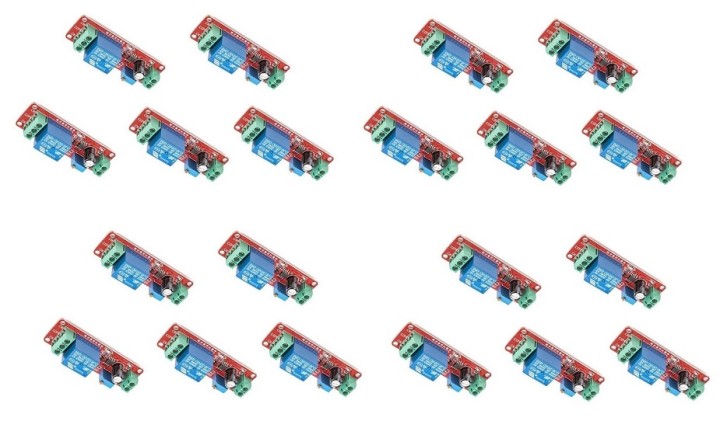

20 pcs Red DC12V Pull Delay Timer Switch Adjustable Relay Module 0 to10 Second T1098 P jr international - 1

20 pcs Red DC12V Pull Delay Timer Switch Adjustable Relay Module 0 to10 Second T1098 P

REF : RT12V10SX20

€198.83
Description: input voltage: 12 v Quantity : 1pc Size: 68mmX21mmX18mm Color : as show the picture Module based on: NE555 chip Adjustable time: 0 to 10 seconds Max. l

This pack contains

Volume discounts

5
€188.89
10
€178.95
20
€159.06
50
€149.12
100
€139.18
200
€129.24
500
€119.30
1000
€109.36
: 2 Items

Emplacement : egaleRT12V10S X 20 -()R3N2

DC 12V Delay relay shield NE555 Timer Switch Adjustable Module 0~10S
One size: 6.8CM * 2.1CM
Second, the main chip: NE555
Third, the working voltage: 12V
Four characteristics:
1, power relay delay pull. Specifically: 12v power supply to the relay, the relay will not immediately sucked and status relay outputs are: normally open disconnected public, normally closed and public conduction; wait until the delay 1-10s (adjustable), the relay suction and, this time, the relay output status is: normally open and public conduction, normally closed and public disconnected; as long as uninterruptible power module, this state will remain.
2, the delay time is adjustable, (0 to 10 seconds)
4, increasing the potential can increase the delay time
5, increasing the capacitor C1 can increase the delay time
6, with input power indicator
7, with relay indicator
8, can control AC 220V / 10A about equipment. (Maximum control equipment 2000W)
9, with freewheeling protection relay.
10, the delay time formula: T = 1.1RC. For example: a resistor capacitor 100uf 100K T = 1.1 * 100000 * 0.0001 = 11 seconds
[Applications]
1, the delay-vehicle device is turned on, to prevent excessive current when the car ignition burn-vehicle device.
2, you need to have in order to start the occasion, to prevent multiple devices simultaneously starting current is too large burning appliances.

Description:
input voltage: 12 v
Quantity : 1pc
Size: 68mmX21mmX18mm
Color : as show the picture
Module based on: NE555 chip
Adjustable time: 0 to 10 seconds
Max. load: 2200W

package includes

1pc X New DC 12V Delay Timer Switch Adjustable Module 0 to 10 Second

RT12V10SX20
2 Items
