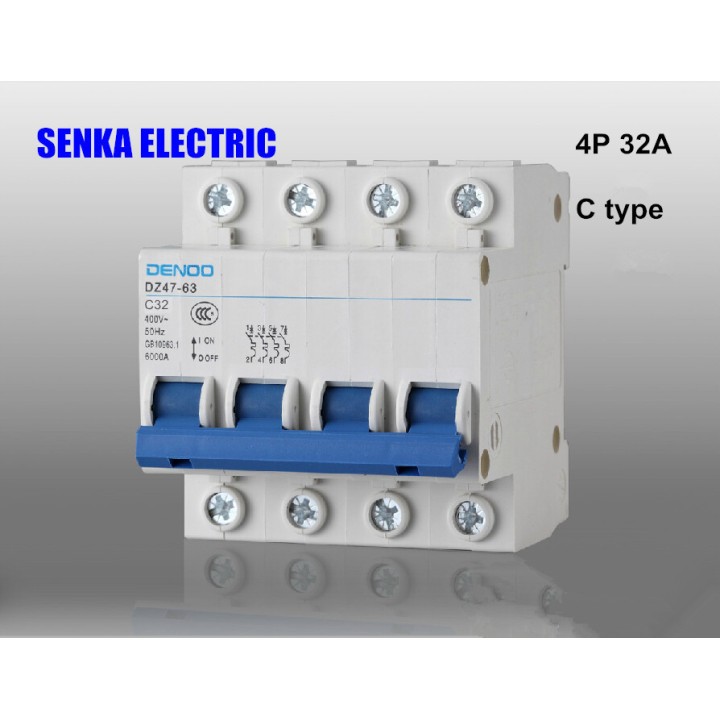

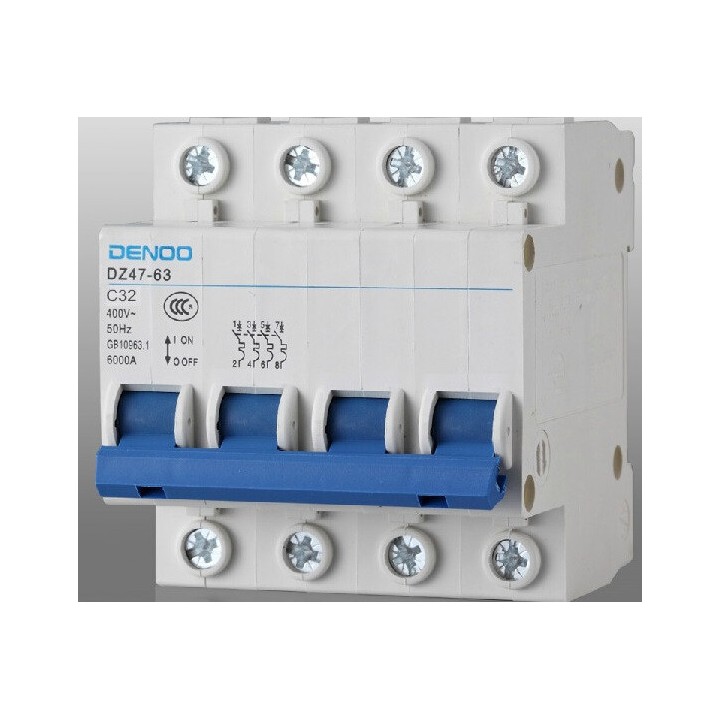

3p +n 32a 400v circuit breaker break electrical dz47-63 4-pole 320 amp

Modular pole breaker , 32A caliber to supply three-phase electrical circuits

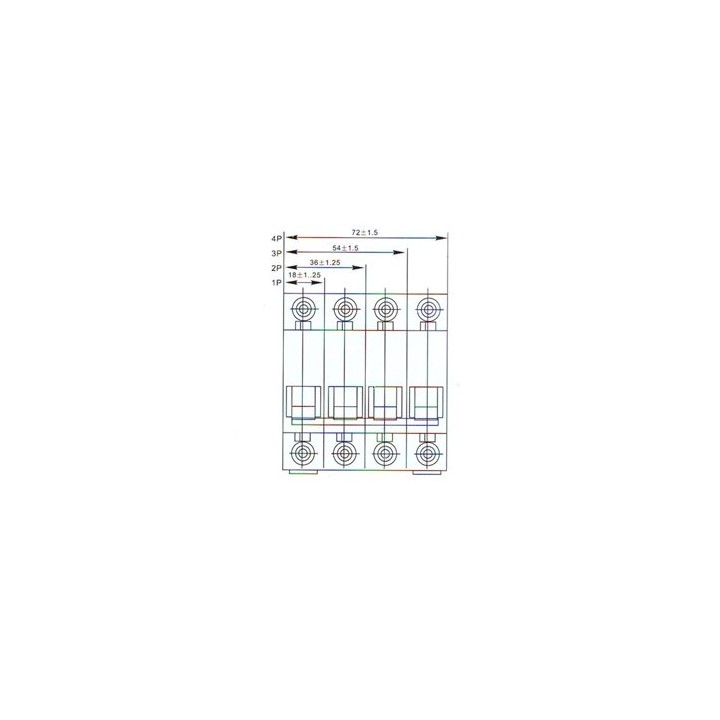

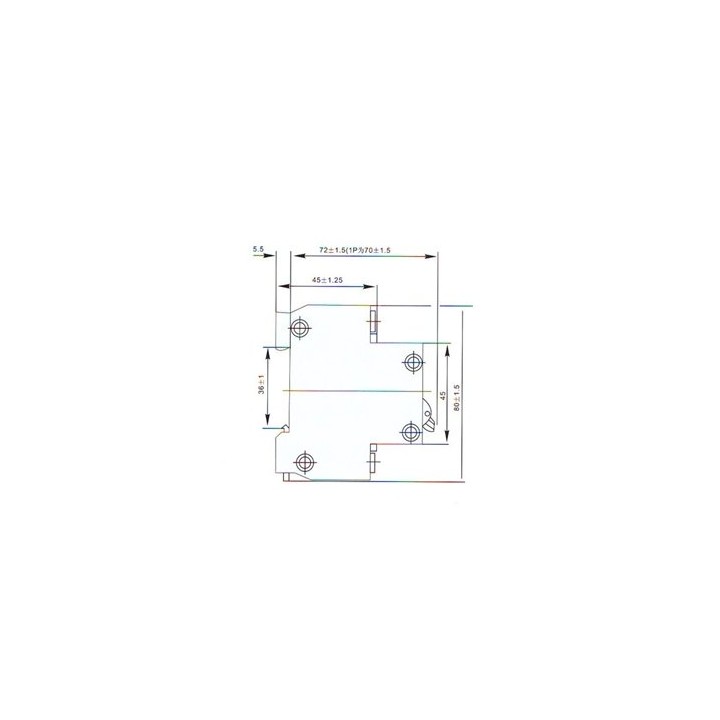

Curve C , breaking 4000 A. 72mm width
Cup circuit in case of overload or short circuit This circuit breaker is recommended for demanding applications
CE compliance
Screw terminals can accommodate a driver up to 25mm ²

c32 DZ47 -63 series circuit breaker is applied to protect the flow of electrical

50Hz / 60Hz Rated max

400V, rated current 63A max . Under normal conditions, it can also be applied as a circuit breaker infrequent operation.

   The product is constituted by a plastic cover , the actuating mechanism , the contact system , the arc system , the magnet system

and trigger mechanism . It has features such as high flame retardant , high strength and light weight .

    Product compliant with the international standard IEC60898 -1, GB10963.1 .

1 . Model : DZ47 -63 4-pole 32 Amp

2 . Product Name : Circuit Breaker

3 . Voltage : 400V

4 . Frequency: 50Hz/60Hz

5. Rated current ( A): 1A, 2A , 3A, 4A, 6A , 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A

6 . 4 poles

7 . Nominal operating shorting interruptingcapacity : 4000

8 . Carton Size: 22.1 × 31.2 × 8.5 (cm)

9 . Qty of package: 12 PCS / lot

10 . Instant-release type : B, C , D

11 . Weight MCB : 0.303KG/PCS (1- 25Amp ) 0.348KG/PCS (32 - 63Amp )
