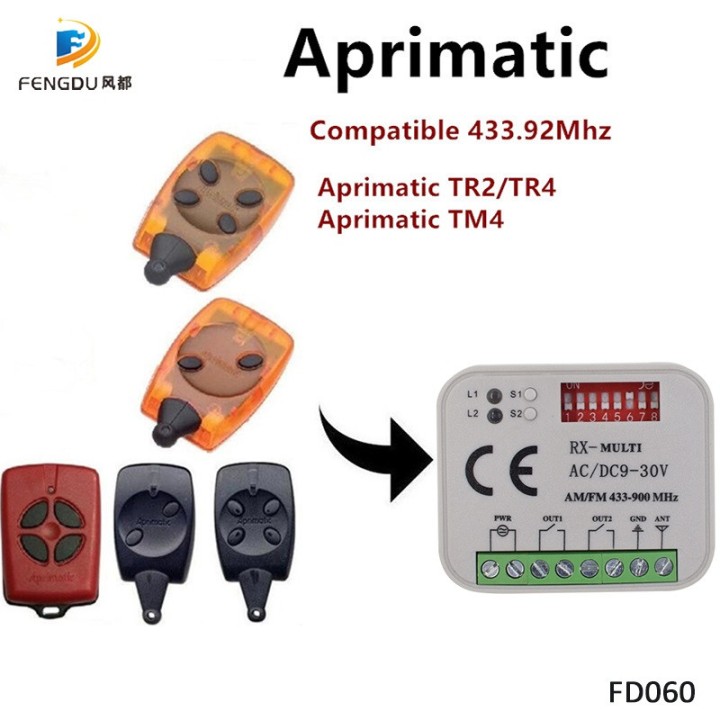

Receiver 300MHz 310MHz 315MHz 318MHz 390MHz 433.4MHz 433MHz 433.92MHz 868MHz 868.8MHz

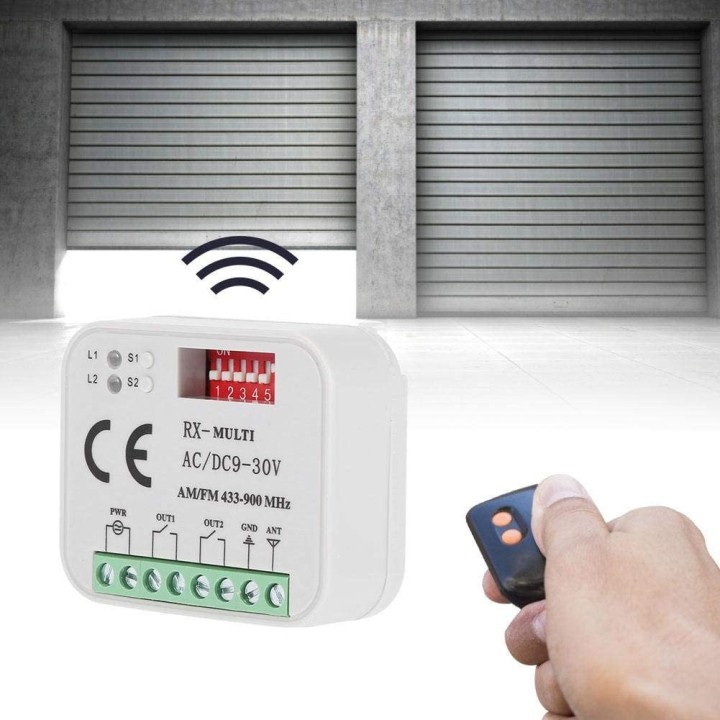

Garage door remote receiver, door control transmitter, RX Zagreb TI 300-900 Z successive AC/DC 9-30V
Remote Control Switch Receiver 433MHz 868MHz 390 MHz RX Multi-Frequency Receiver AC/DC 9-30V 300-868MHz Garage Door Reception
multi-frequency receiver Operating voltage: AC/DC 9v-30v Channel: 2 Operating frequency: compatible with 300MHz-868MHz Distance: 30-50m Type: rolling code, fixed code, learning code Uses: garage doors, gate doors gate, motorcycles, car alarm products, home security products, short-range wireless remote control products, industrial control products, alarm systems, etc. Working frequency: 300-868MHz 300MHz, 310MHz, 315MHz, 318MHz, 390MHz, 433.4MHz, 433MHz, 433.92MHz, 868MHz, 868.8MHz

Specifications:

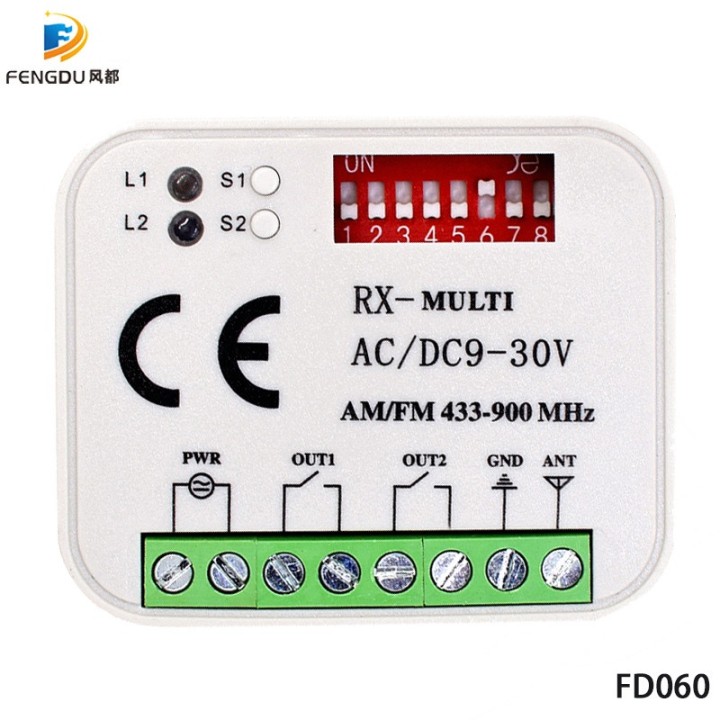

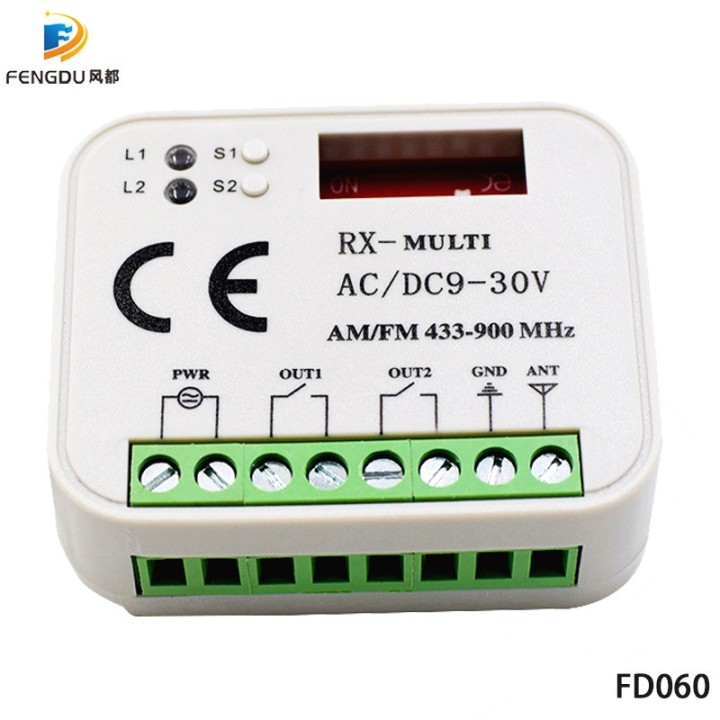

1) Name: RX MULTI universal receiver 2) Working voltage: 9V-30V AC DC 3) Channel: 2 4) Frequency: 300MHz - 900MHZ 5 Code: rolling and fixed code and learning code 6) Distance: 30-50 meters. 7) Very mini size: 5.5cm*4.5cm*1.0cm. 8) A receiver can work with 400 codes. 9) It does not interfere with other remote controls and receivers. 10) Brand Selector: With 8 dip switches, user can make different combination for different brands remotely. 11) Power Input Selector: This receiver can work at AC/DC 9V~30V. However, it is better to change the PIS according to the power input. If the input is more than 24V, shorten pins 2 and 3; shorten 1 and 2 if input is less than 24V.

1) Name: Universal Receiver SMG-662.
2) Working voltage: 9V-30V
3) Channel: 2.
4) Frequency: 300MHz - 900MHz.
5) Distance: 30-50 meters.
6) Very mini size: 5.5cm*4.5cm*1.0cm.
7) A receiver can work with 400 codes.
8) It does not interfere with other remote controls and receivers.
9) Brand Selector: With 8 dip switches, user can make different combination for different brands remotely.
10)Code: Rolling and fixed code and learning code.
11) Uses: The receiver is designed to control any door automation system, burglar alarm system, electric doors, windows, lifting equipment, passages, lifting devices. This is easy to use, beautiful, low power consumption and is easy to connect to your existing system.
Working frequency: 300-900MHz (rolling code and fixed code)
300MHz
310MHz
315MHz
318MHz
390MHz
433.4MHz
433MHz
433.92MHz
868MHz
868.3MHz
868.8MHz

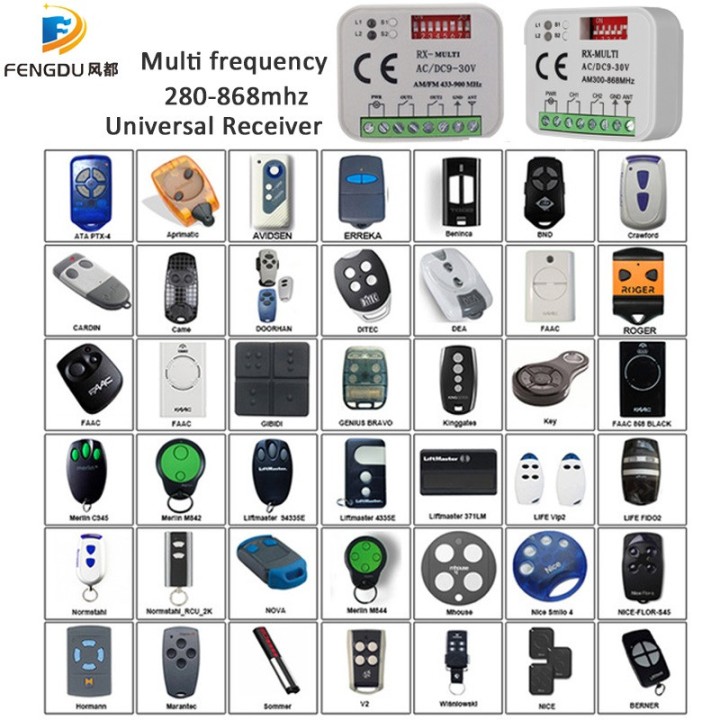

Can identify ALL fixed codes (2262, 2260, 2264, 5326, M1E, M5E, etc.). All learning codes (1527, 2240, 6P20B, 6P20D, etc.), rolling codes (HCS301, HCS300,HCS200, HCS201, HCS100, HCS101),

Characteristic
1) Distance: 30-50 meters.
2) Very mini size: 5.5cm*4.5cm*1.0cm.
3) One receiver can work with 400 codes.
4) It does not interfere with other remote controls and receivers.
5) Brand Selector: With 8 dip switches, user can make different combination for different remote brands.
6) Power Input Selector: This receiver can work at AC/DC 9V~30V. However, it is better to change the PIS according to the power input. If the input is more than 24V, shorten pins 2 and 3; shorten 1 and 2 if input is less than 24V

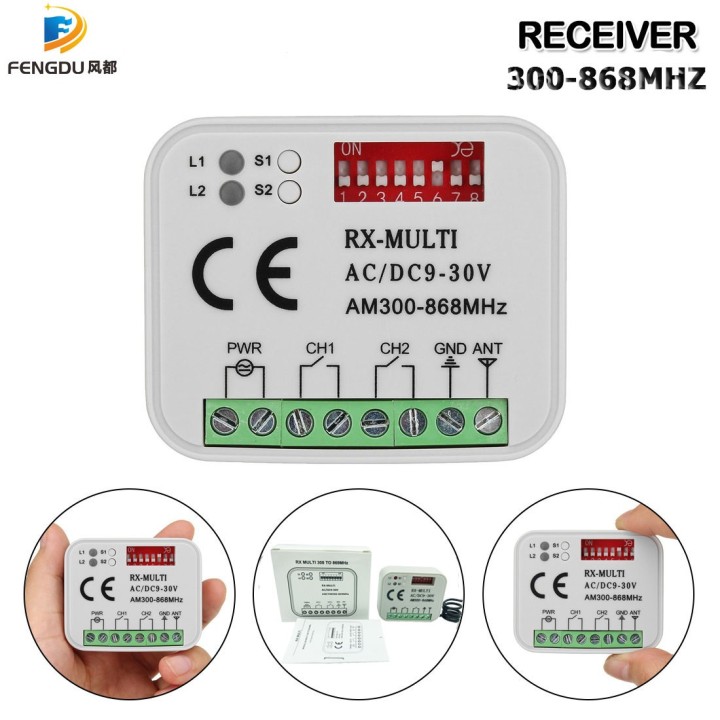

Include
1x Receiver
1x Small antenna

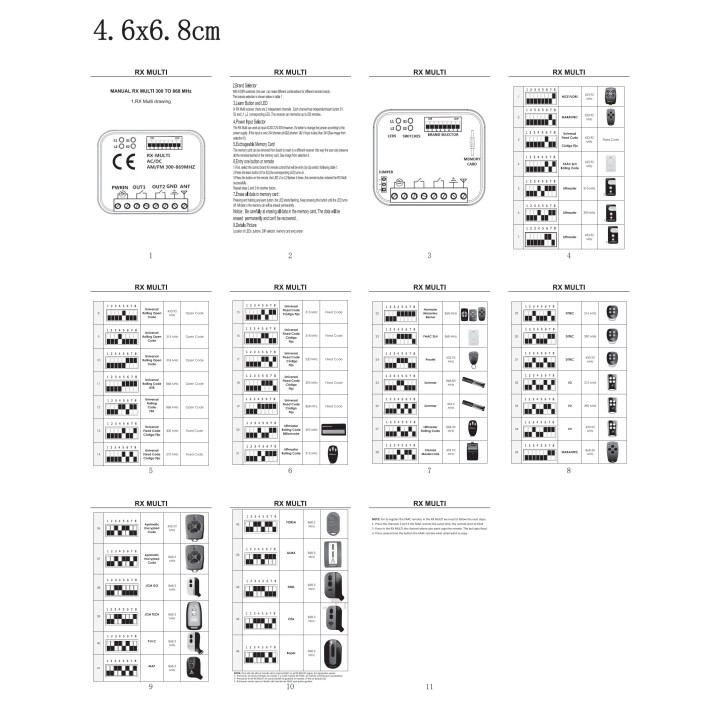

1x English Manual

Programming a new remote control
1) Select the correct brand for the remote control to be programmed by moving the DIP switches UP or DOWN. For example, Marantec 433.92Mhz remote controls, just move the Dip switch 7 UP.
2) Press the learning button. The LED lights up.
3) Press the button on the remote control, the LED flashes 4 times. This means the remote has been programmed successfully.
4) Repeat step 2 for another button.
5) The procedure for programming the 2nd channel is the same.

Erase all data from memory card: Press and hold the learn button. The LED starts flashing. Hold this button until the LED turns off. All data saved in the memory card will be permanently erased and cannot be recovered.
