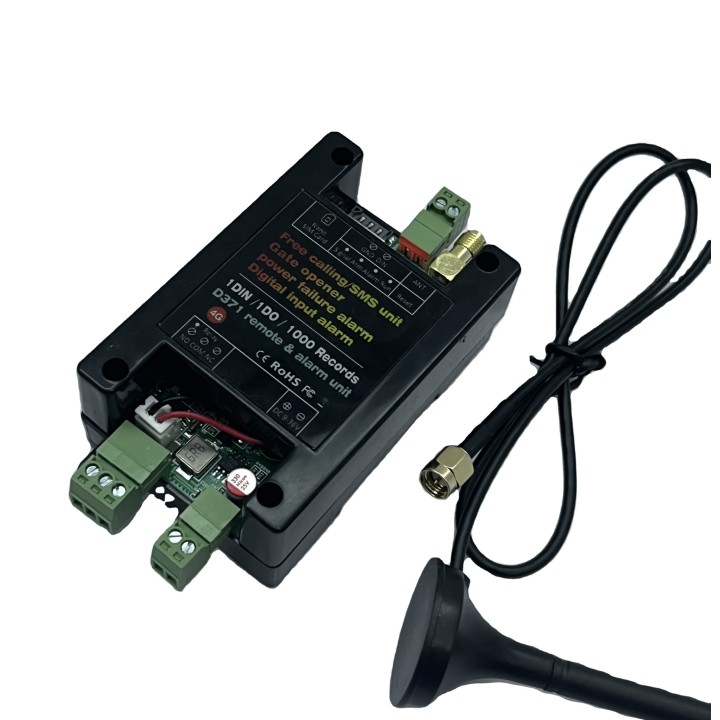

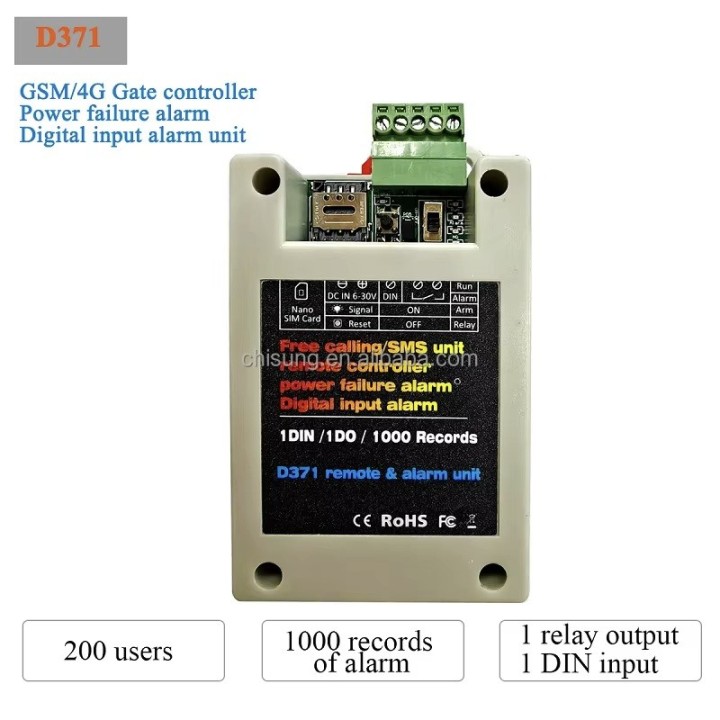

D371 4G GSM Transmitter, Power Outage Alarm, 9V 12V 24V 36V

D371 4G GSM Transmitter, Power Outage Alarm, 9V 12V 24V 36V Smart Security Alarm System, Call Notification
D371 Free Call/SMS Unit, 4G GSM Door Controller, Power Outage Alarm, and Digital Entry Alarm Unit
4G GSM Remote Control, Power Outage Alarm, Switch Entry Alarm

1. Remote Control Method: Freephone calls, text message instructions on the device.

2. Equipment alarm method: Freephone call, text message to designated recipient

3. Alarm records: 1000 records

4. Users: 200 users

5. Voltage input: 9-36V DC, 1A, 2A, 3A, 4A, 5A...

6. Product size: 96.5*50*31.5mm

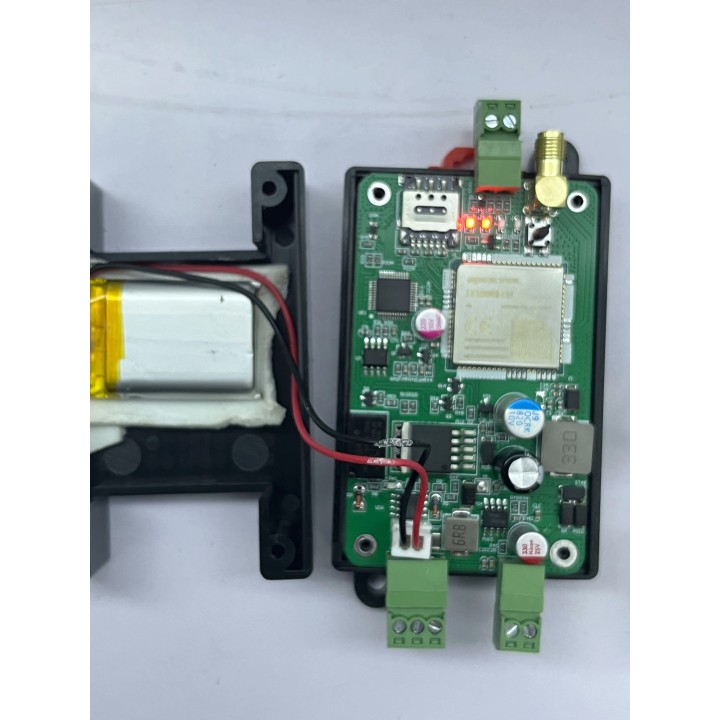

7. Battery: Built-in lithium battery

Ports: 1 relay output, 1 DIN input
Application scenarios: Remote control of electrical switches, which can be connected to door sensors, water level sensors, human body sensors, barriers, roller shutters, sliding doors, etc., to provide remote control, remote alarm, remote power failure alarm, etc.

4G GSM door controller,

suitable for barriers, shutters, garage doors, and gate openers. Control a gate or garage door with a FREE call from your mobile phone! Remotely switch machines with a FREE call from your mobile phone!

4G GSM DIN Alarm Unit

Can be connected to door magnets, water level switches, human body sensors, and other sensors. When the sensors are triggered, the DN371 sends an alarm by calling and SMSing the designated users. You can also configure it to arm/disarm.

4G GSM Power Failure Alert

When the external power supply is switched on/off, the DN371 will send a real-time alarm via call and SMS. Installation

1. A nano SIM card supports basic communication functions for SMS and calls. Enable PIN lock.
2. Connection diagram

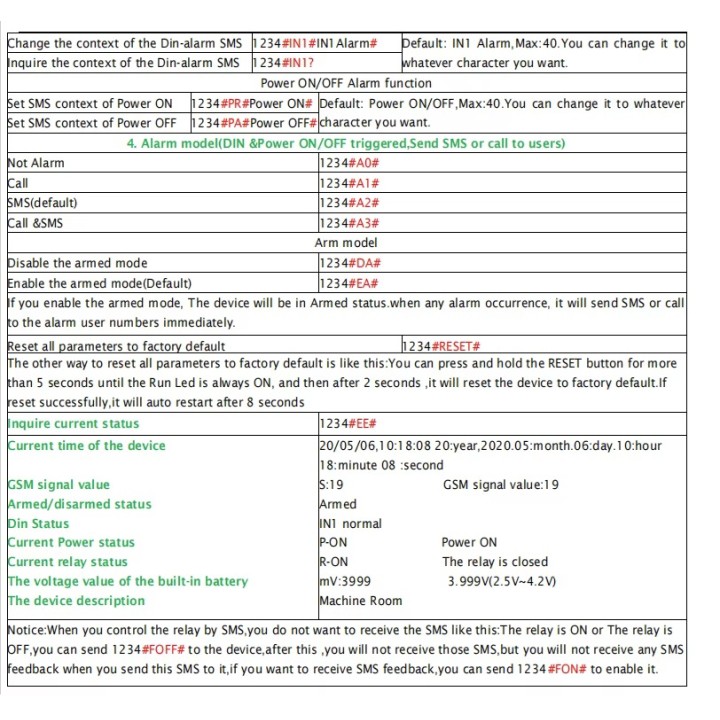

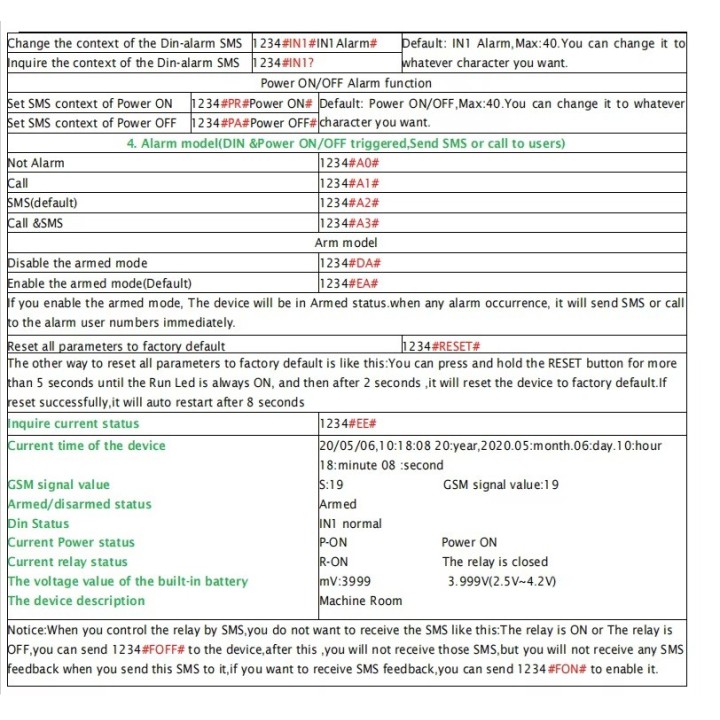

3. Follow the command list to operate the device.
4. After successful initial authorization, follow the command list and user manual to configure other settings. Connection diagram:

Application scenarios:
The remote control for electrical switches can be connected to door sensors, water level sensors, human body sensors, barriers, rolling gates, sliding doors, etc. For use as a remote control, remote alarm, remote power outage alarm, etc.
Model Number D371
Rated Voltage: DC 9V ~ 36V/1A
Operating Temperature: -10℃ to +60℃
Storage Temperature: -20℃ to +60℃
Relative Humidity: 10-90%, non-condensing
Relay Output Voltage: 3A/240V AC
SIM Card: Nano Type, 3V
Antenna: 50Ω SMA
Dimensions: 96.5 x 50 x 31.5 mm
User Capacity: 200
