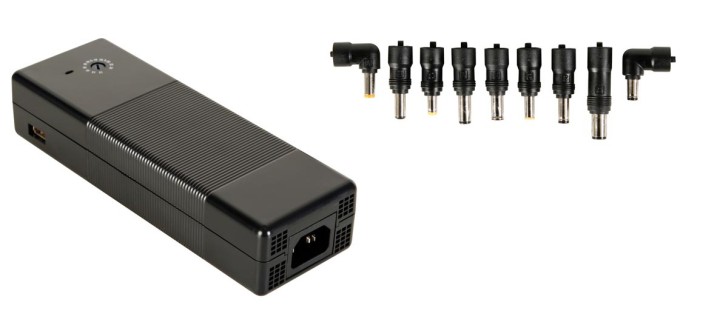

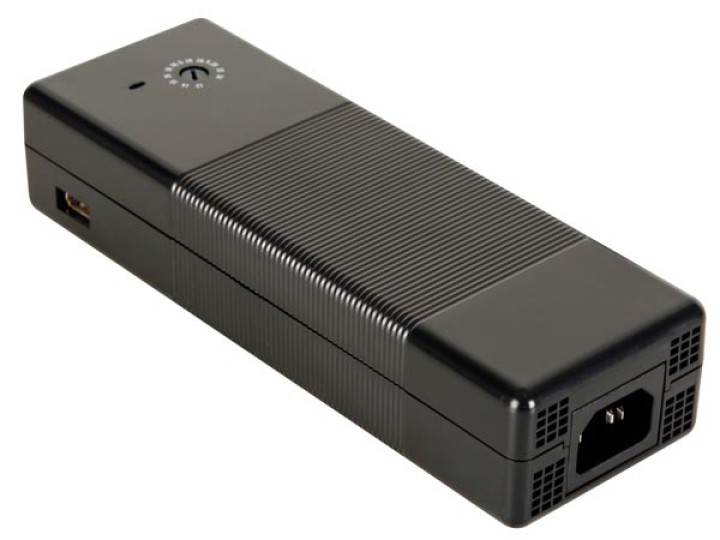

Universal switching mode adapter output: 12 to 24vdc + 5v usb output 146.5w

Features

with 9 detachable DC plugs for most common laptop brands
additional 5V/500mA USB output
for notebook computers & digital electronic devices
selectable stabilised output, low ripple & noise
high efficiency & low energy consumption
power LED

Specifications

supply voltage: 100 ~ 240VAC 50/60 Hz
power: 146,5W max.
selectable output voltages: 12 - 14 - 15 - 16 - 18 - 18.5 - 19 - 19.5 - 20 - 22 - 24
dimensions: 30 x 60 x 145mm

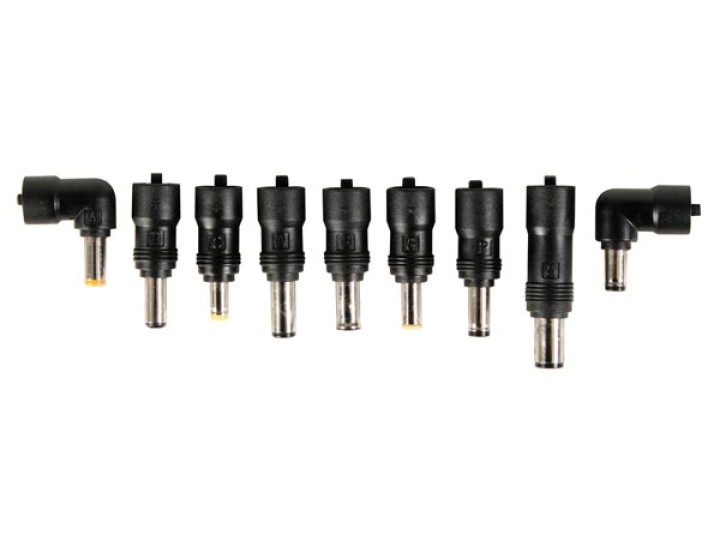

plugs: see 'Files' for a graphical overview
bent plugs: 2 pcs
(A): ID: 2.1mm, OD: 5.5mm
(R): ID: 1.7mm, OD: 5.5mm
straight plugs: 9 pcs
(C): ID: 1.7mm, OD: 4.75mm
(D): ID: 3.0mm, OD: 6.3mm
(E): ID: 1.4mm, OD: 6.5mm
(F): special Dell 3-pin plug
(G): ID: 1.0mm, OD: 5.0mm
(H): ID: 1.9mm, OD: 5.5mm
(I): ID: 2.5mm stereo plug, OD: 6mm
(J): ID: 3.5mm stereo plug, OD: 9.3mm
(K): ID: 0.6mm, OD: 7.4mm
spare plugs: PLUGSPSET2
