The FC80 is designed to be connected to an alarm control panel using the 4 wires (2 for the contact, 2 for anti tamper). The FC80 detects an opening of 15mm.Output on NC contact.

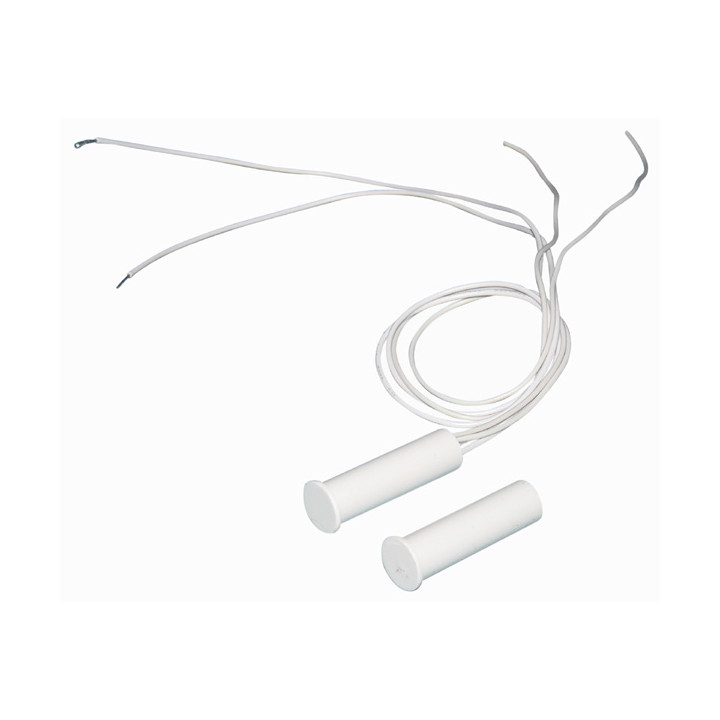

Detector flush fitting 9mm nc magnetic contact for electronic alarm system contact sensors magnetic door sensors flush fitting
REF : FC804F
€12.42
The FC80 is designed to be connected to an alarm control panel using the 4 wires (2 for the contact, 2 for anti tamper). The FC80 detects an opening of 15mm.Output on NC contact.
: 992 Items
Emplacement : R1M1
Security policy
Delivery policy
Terms of Sales
Dimension O9x30mm . Weight 10gr
The FC80 is designed to be connected to an alarm control panel using the 4 wires (2 for the contact, 2 for anti tamper).
The FC80 detects an opening of 15mm.
Output on NC contact.
Colour: White (Brown also available –C50B) Contact Material: Rhodium Voltage Range: 1-100v DC 125v AC Max Switching Current: 500 mA Max DC 500 mA Max AC Temp Range: -40C to 50C Magnet: Alnico V Material: High Impact Polystyrene Operating Gap: 15mm Produced to BS4737: Part 3: Section 3 (1977) Packaging : Each unit is packed individually into a polythene bag with fixings . A Set of 25 Units are then packed into a further polythene bag. These bags are then packed into a cardboard box (normally 500 units per box).
