5 Contact nf 11mm flush white c30 sensor magnetic detector opening for alarm

The FC803 is predisposed for connection to an alarm center using two son. FC803 detects an opening of about 15mm. Exit NC type contact. current maximum 500mA/12Vcc

13,83 €

Instead of 16,05 €

11 Items

Quantity
Price
5
13,14 €
10
12,45 €
20
11,06 €
50
10,37 €
100
9,68 €
200
8,99 €
500
8,30 €
1000
7,61 €

FC803X5

Pack content

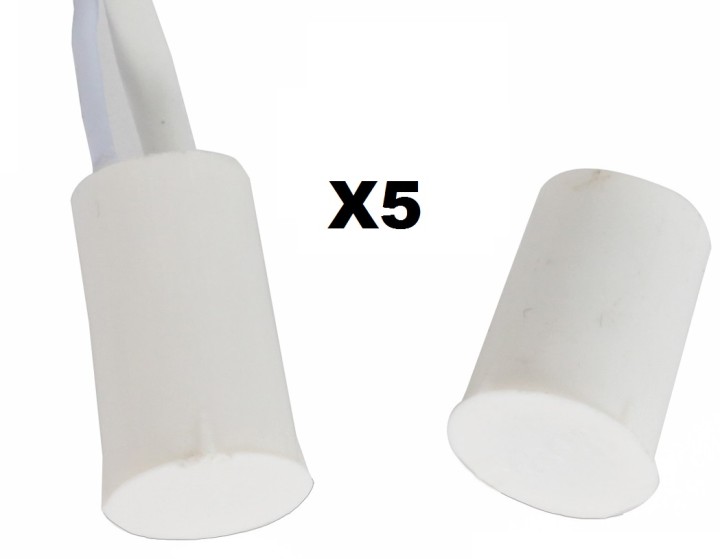

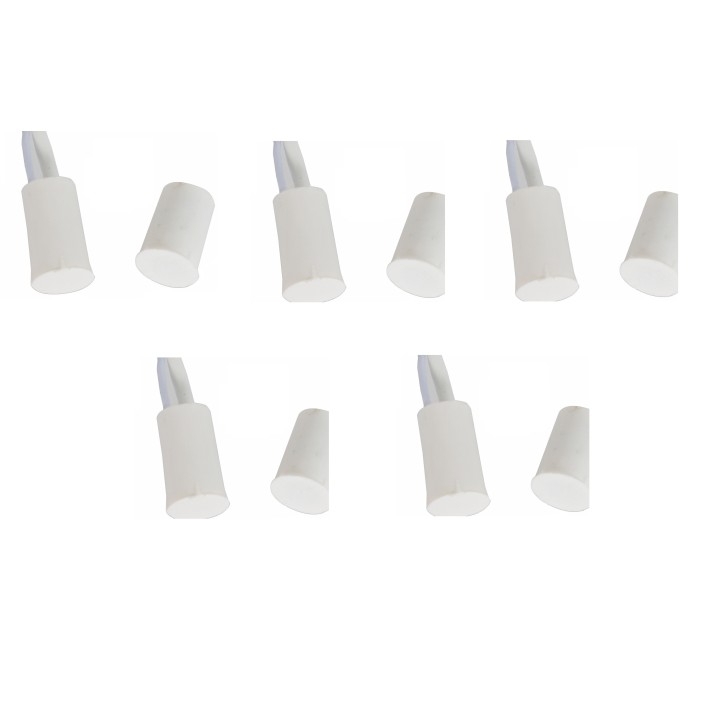

5 x Contact nf 11mm flush white c30 sensor magnetic detector opening for alarm

The FC803 is predisposed for connection to an alarm center using two son. FC803 detects an opening of about 15mm. Exit NC type contact. current maximum 500mA/12Vcc

Description


The FC803 is predisposed for connection to an alarm center using two son.
FC803 detects an opening of about 15mm. Exit
NC type contact.
current maximum 500mA/12Vcc

Rules mount magnetic contacts strong> td> tr> tbody> table>
opening contact consist of a magnet and the magnetic field creating a contact whose state is changed by the presence of this field.
In air or neutral materials (wood, aluminum, plaster ...) the magnetic field is evenly distributed around the magnet.
Near ferromagnetic material (steel, soft iron) the magnetic field of the magnet is fully attracted and captured by material and no longer acting in other directions.
Therefore, it is necessary to remove enough magnets and magnetic media contacts using special spacers. To verify that material is ferromagnetic or not, use the magnet contact. If there is attraction between the magnet material, it is ferromagnetic. Son length: 42cm
