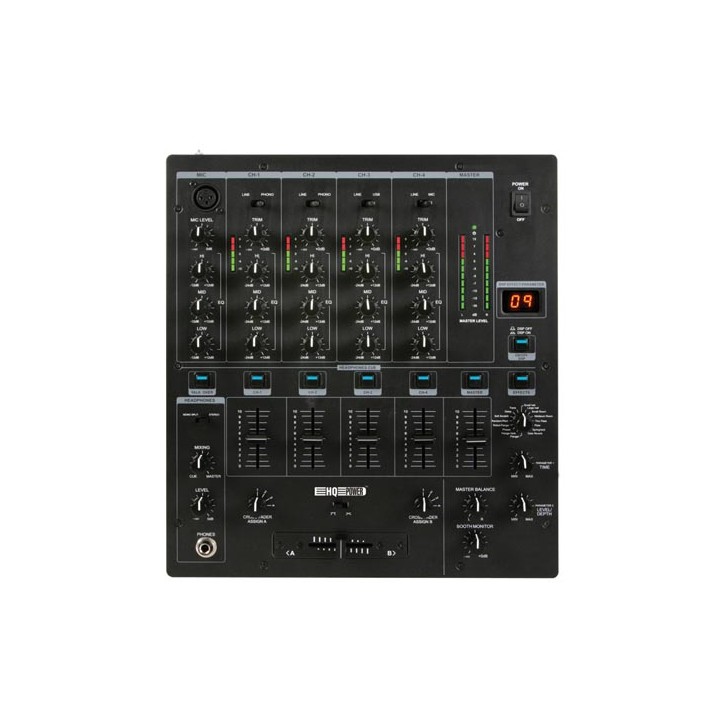

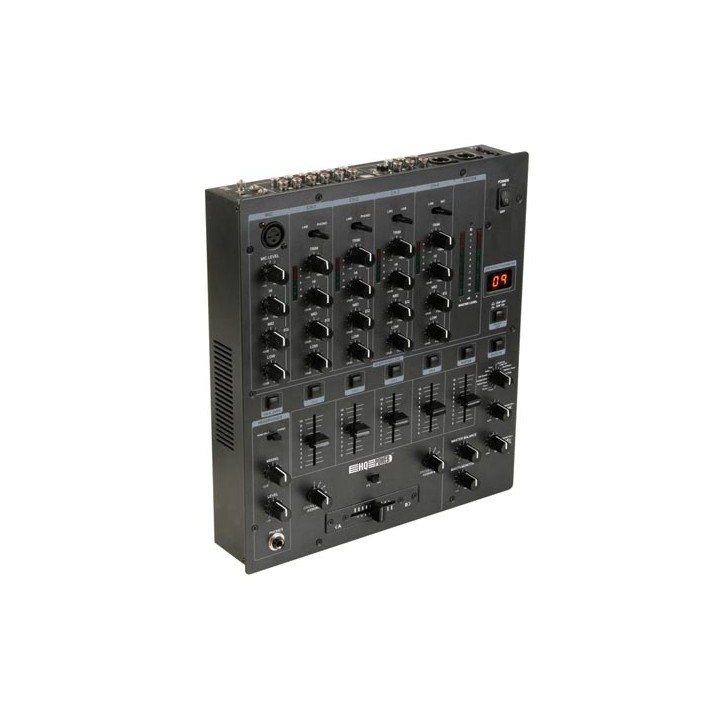

4 channel mixer with usb and effect generator promix400u2

Features

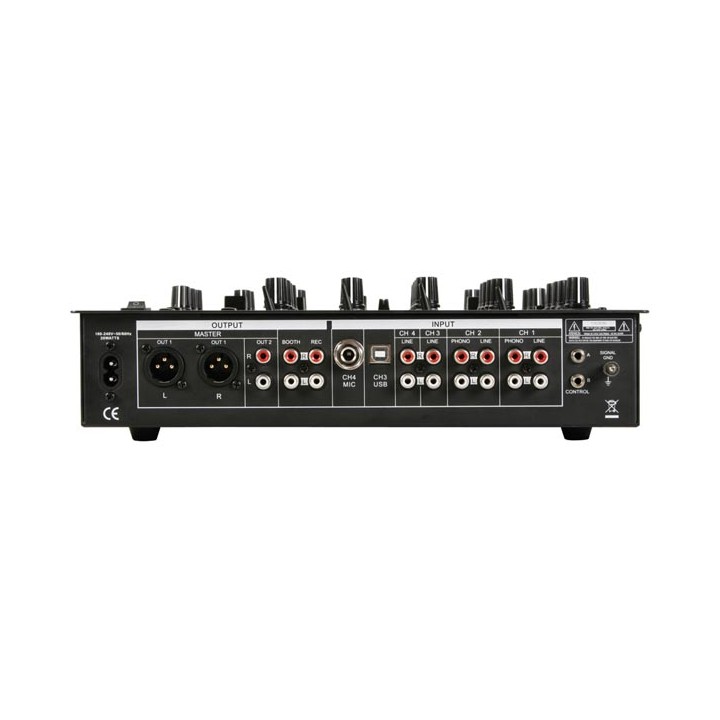

outputs: 2 Master (XLR and RCA), 1 Rec (RCA) and booth monitor output (RCA)
inputs: 2 Phono (RCA), 4 Line (RCA) and 1 MIC (Combi), USB
with Digital Signal Processor (DSP) effects and fader start control
trim: gain for each input channel
peak level meter: allows the user to instantly determine the source input condition for each channel
talk over: mutes -14dB all levels apart from the microphone MIC1
cross fader curve: choose from two types of cross fader start-up options
headphone monitor balance between cue and master out
freely assignable long life TCT cross fader (45mm) with adjustable curve
extra LED display per channel for pre-listening signal
gain control with 3-fold sound control (+12/-26dB) per channel
3-fold sound control (+12/-26dB) for microphone
CUE on and off switch for each channel
cue-split function: the cue signal is sent to one side of the headphones and the output-signal to the other side

Specifications

power supply: 100-240Vac ~ 50/60Hz
power consumption: 30W
input terminal:
CD/LINE: 300mV/22Kohm
PHONO: 5mV/47Kohm
MAIN MIC: 5mV/3Kohm
MIC: 5mV/3Kohm
USB: 300mV/22Kohm
frequency response: 20Hz - 20kHz
S/N ratio:
CD/LINE: 86dB (without effects)
PHONO: 76dB
MIC: 69dB
THD: Total Harmonic Distortion
CD/LINE/PHONO: < 0.02%
crosstalk: > 70dB
channel equalizer:
HI: +12dB, -24dB (13kHz)
MID: +12dB, -24dB (1kHz)
LOW: +12dB, -24dB (70Hz)
MIC equalizer:
HI: +12dB, -12dB (10kHz)
MID: +12dB, -12dB (1kHz)
LOW: +12dB, -12dB (100Hz)
dimensions: 320 x 350 x 65mm (12.6' x 13.8' x 2.6')
weight: 5kg (11lb)
