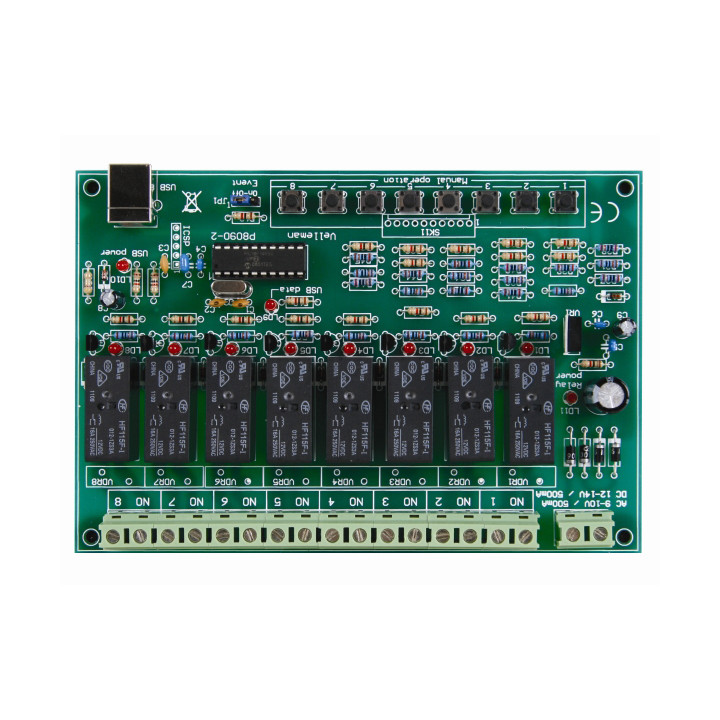

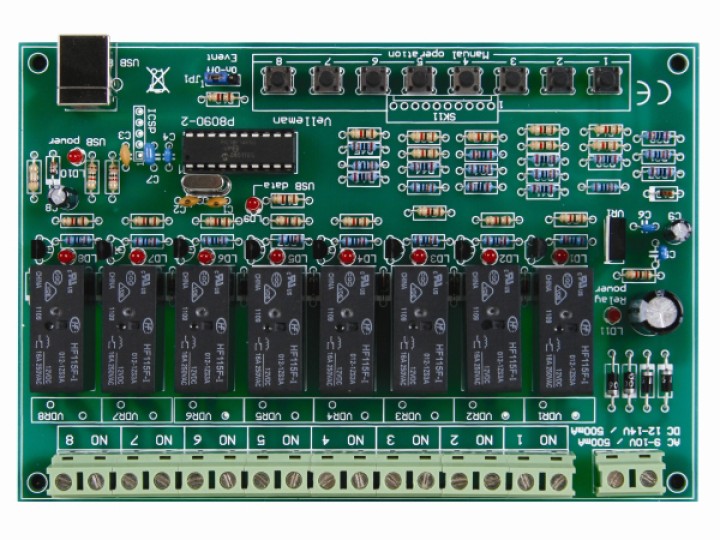

8 channel relay card vm8090 driven internet telephone ipad plug usb computer velleman - 1

8 channel relay card vm8090 driven internet telephone ipad plug usb computer

REF : VM8090

€99.50
Eight relay channels controlled by your computer!
Use your computer USB port to connect to the outside world
Connect up to 16A to each of the high power relays.

Comes complete wit

Volume discounts

5
€94.53
10
€89.55
20
€79.60
Last items in stock
: 1 Item

Emplacement : SUR COMMANDE


Eight relay channels controlled by your computer!
Use your computer USB port to connect to the outside world
Connect up to 16A to each of the high power relays.

Comes complete with VDR noise suppressors, on-board push buttons can be used to test/operate all the relays. A DLL for own software development can be downloaded from our web site.
Test software completes the package.
Features

manual operation for toggle, momentary or timer operation (selectable through software)
timer settings up to 18 hours (DLL function)
optional open collector connectivity (push button simulation
DLL for own software development (download only)
event-driven and open protocol
two way PC communication (USB Event return)
transient suppression VDR (type VDR300) for use with inductive loads
LED indication for power and relay action
minimum system requirements:
PC running USB compatible Windows version
USB1.1 and USB2.0 full speed compatible
internet connection for software download
optional DIN rail enclosure: B8006 (Note: cut out the USB connector)

Specifications

power supply for relays: 9-10Vac or 12 to 14Vdc (500mA), example: PS1205
8 high-power relays: 16A each (resistive load)
dimensions: 160 x 107 x 30mm / 6.3 x 4.2 x 1.2'
velleman
VM8090
1 Item
