Photoelectric barrier infrarouge12m (12v) set up electronic non b216n
Photoelectric barrier infrarouge12m (12v) set up electronic non b216n
REF : IR12
€10.75
Photoelectric barrier infrarouge12m (12v) set up electronic non b216n
: 3 Items
Emplacement : -()R2L4
Security policy
Delivery policy
Terms of Sales

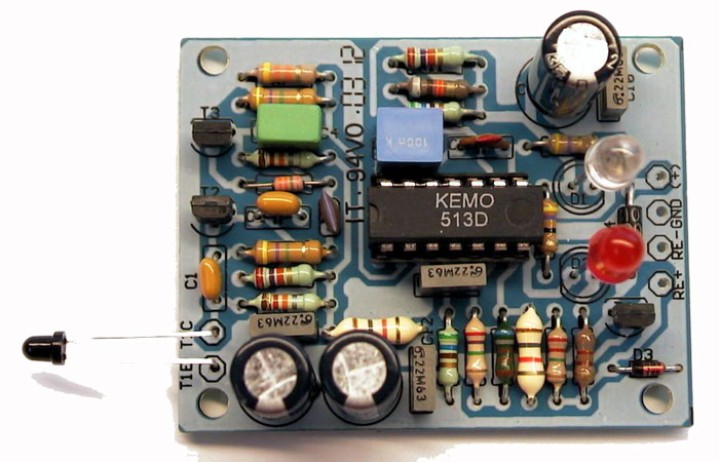

Board dimensions: approx. 58 x 45 mm
With invisible infrared light ray and a range of max. 5 m. If the light ray is interrupted (if a person walks through the light ray), this will be indicated by a flashing LED. Operating voltage: 12V.
If other instruments shall be switched with the light ray (e. g. a siren), a relay (12V > 600 Ohm) or the Kemo relay card B197 can be connected in addition (both not contained in this kit).
Recommended tilted mirror if the infrared ray shall be deviated: K002 Reflector Mirror.
Technical data:
- Operating voltage: 12V stabilised
- Current consumption: < 100mA
- Range: > 5m (with supplementary lens > 10m, not enclosed)
- Transmitting frequency: approx. 3.7 kHz
- Board dimensions: approx. 58 x 45 mm
With invisible infrared light ray and a range of max. 5 m. If the light ray is interrupted (if a person walks through the light ray), this will be indicated by a flashing LED. Operating voltage: 12V.
If other instruments shall be switched with the light ray (e. g. a siren), a relay (12V > 600 Ohm) or the Kemo relay card B197 can be connected in addition (both not contained in this kit).
Recommended tilted mirror if the infrared ray shall be deviated: K002 Reflector Mirror.
Technical data:
- Operating voltage: 12V stabilised
- Current consumption: < 100mA
- Range: > 5m (with supplementary lens > 10m, not enclosed)
- Transmitting frequency: approx. 3.7 kHz
- Board dimensions: approx. 58 x 45 mm
