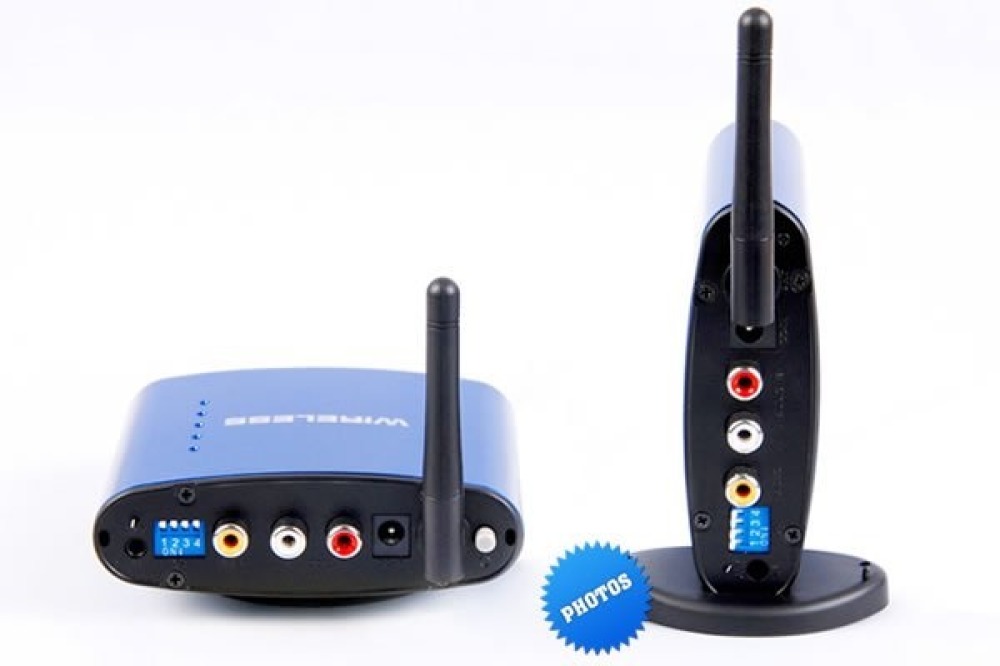

Transmitter receiver 2.4ghz 4 channel audio video transmitter wireless transmission system audio video transmitters receivers wi

Features

* wireless transmission of A/V signals through walls and between rooms
* uses 5.8GHz frequency which gives less interference with other wireless products than the 2.4GHz frequency
* use any A/V device as a broadcasting station:
o you can send music from your audio equipment to any powered speaker in another room
o watch DVD movies on your second TV without moving your DVD player
o share cable or satellite programming on different TV's in your house
o or even enjoy computer sounds and images (computer with video and sound output required) on a remote TV without running messy cables
* features an IR relay function: the signal from the remote can be sent back to the sender via the receiver, allowing it to be sent to the device you wish to operate e.g. a DVD or CD player, etc.
* comes with: 2 x SCART to RCA A/V cable, IR extender cable and 2 power adapters
* optional video cables:
o jack - RCA: AVB020/2.0, AVB020/5.0
o S-VHS: AVW084, AVW084G, AVW085, AVW085G

Specifications

* frequency: 5.8GHz
* transmission range: ±50m (clear line of sight)
* transmitter:
o frequency: 5790 - 5828 - 5847 - 5866 MHz
o channel selection: 4 channels, switch on side
o type of modulation: FM (video and audio)
o video input level: 1Vpp (RCA connector)
o audio input level: 1Vpp (RCA connector)
o S-video input level: Y: 1Vpp ±10%, C: 288mV ±5% (SVHS connector)
o video input impedance: 75 ohms
o audio input impedance: 2k ohms
o power supply: DC 12V / 250mA (adaptor included)
o dimensions: 120x100x43mm
o weight: 200g
o IR transmitter:
+ frequency: 433.92MHz
+ demodulation type: AM
* receiver:
o video output level: 1Vpp ± 0.2Vpp video (RCA connector)
o audio output level: 1Vpp ± 0.2Vpp audio (RCA connector)
o S-video output level: Y: 1Vpp ±20%, C: 288mV ±5% (SVHS connector)
o power supply: DC 12V / 250mA (adaptor included)
o dimensions: 120x100x43mm
o weight: 200g
o IR receiver:
+ built-in receiver
+ frequency: 433.92MHz
