DC 24V to AC 220V 2000w 4000w modified sine wave power inverter with LCD display remote control 5V USB

DC 24V to AC 220V 2000w modified sine wave power inverter with LCD display remote control 5V 2.1A USB off grid inverter

Specification

    Rated Power: 2000W

    Surge Power: 4000W

    DC Input Voltage: 24V

    AC Output Voltage: 220V~240V

    AC Output Frequency: 50Hz

    AC Output Waveform: Modified Sine Wave

    Waveform distortion: THD<3% (Linear load)

    Efficiency (>90% Load): >90%

    DC Input Voltage Range: 20V~30V

    Input Low Voltage Alarm: 21V±0.5V

    Input Low voltage Shutdown Voltage: 19V±0.5V

    Input High voltage Shutdown Voltage: 30V±0.5V

    No Load Current: < 0.2A

    Surge Power Duration: 0.1S

    NetWeight: 3.3 kg

    Dimensions (L x W x H): 29x15x13 cm

    Battery Cable (Cross-sectional area*length): 10mm²x750mm

    Fan Starting Temperature: = 45 ?

    Temperature Protection: 75 ?

Features

- High quality DC to AC modified sine wave.

- The main control chip adopts high-speed and stable MCU, intelligent control, AC output frequency is more accurate, and the work is more stable.

- Multiple protection functions: input low voltage shutdown protection, input high voltage shutdown protection, battery high and low voltage alarm, overload protection, output short circuit protection, overheating protection, input reverse protection.

- Automatic reset function: After input high voltage or low voltage shutdown, when the input voltage returns to normal, the inverter will automatically restore the output voltage.

- Soft start function, it is easier to run the load and reduce the impact on household appliances.

- Buzzer reminder device, once the protection of the inverter is triggered, the buzzer sounds an alarm to remind people.

- Anodized aluminum case, which not only has a beautiful appearance, but also has good heat dissipation performance, wear resistance, insulation, and durability.

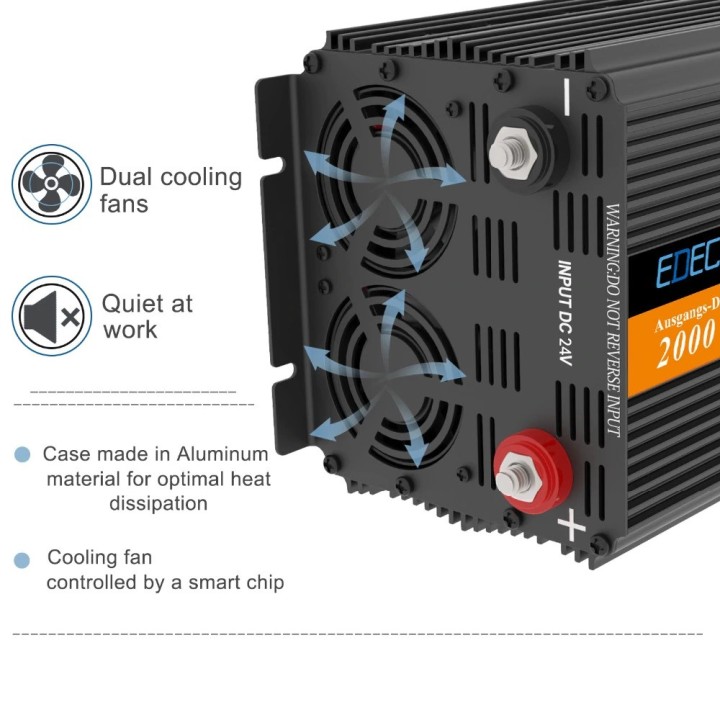

- Dual intelligent temperature control fan to reduce unnecessary waste of battery power; When the internal temperature of the inverter is =45±5°C, the fan starts to work.

- Screw terminal. Pluggable plug for easy cable replacement.

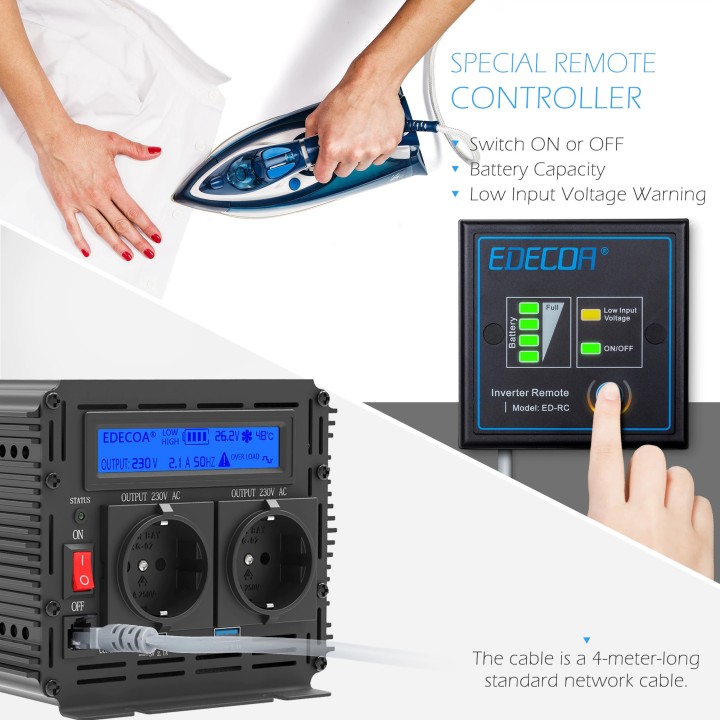

- Remote control function, can display battery power, battery low-voltage alarm, the switch button can turn on/off the inverter, the remote control port is standard RJ45, you can replace longer cable to increase remote control distance.

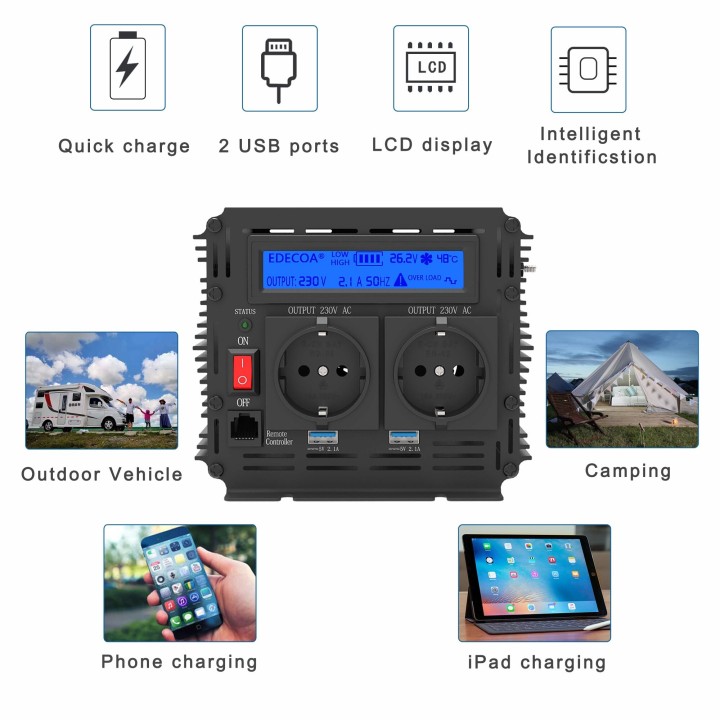

- LCD display that shows input voltage and output voltage.

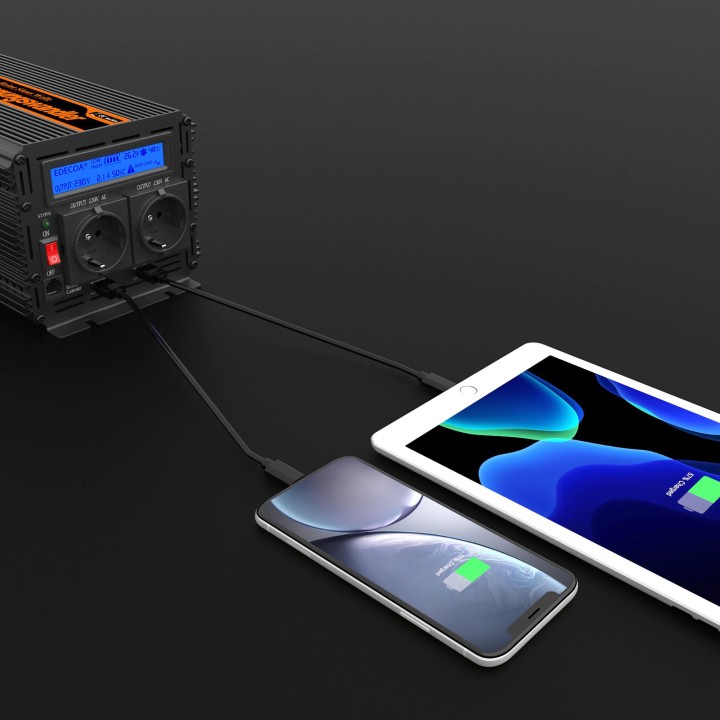

- Dual USB port, output voltage 5V, maximum current 2.1A, can charge mobile phones and tablets.
