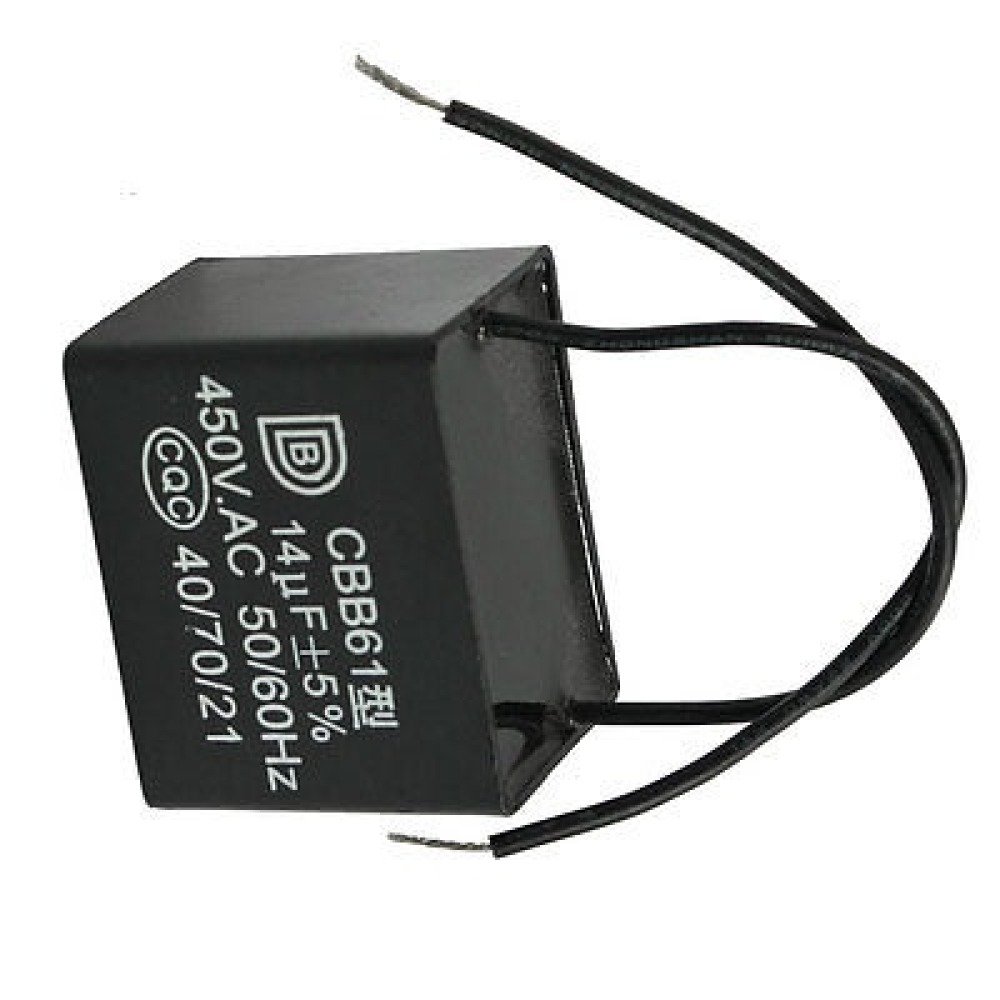

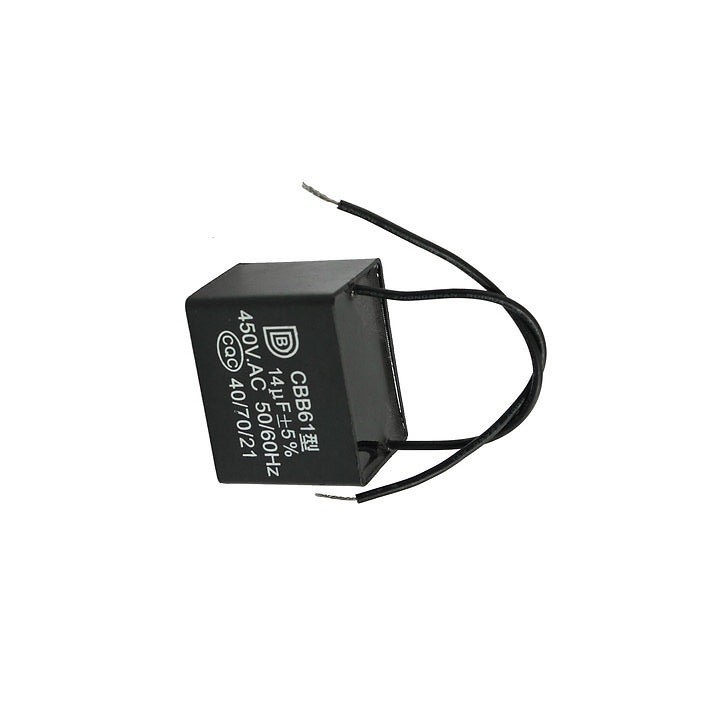

Metallized Polypropylene Capacitor CBB61 14uf 450VAC 50/60Hz

Metallized Polypropylene Capacitor CBB61 14uf 450VAC 50/60Hz

CBB61 Metallized capacitor for motor starting Ceiling fan 500VAC 14uF 14mf
1 Pack 2 Wire Ceiling Fan AC 450V 14uF for Electric Ceiling Fan Spare Part CBB61 Series SA085
Product Name: Capacitor
Model: CBB61
Type: Polypropylene Film Capacitor
Material (outer): plastic
Nominal capacitance: 14uF
Tolerance: ± 5%
Rated frequency: 50 / 60Hz
Rated voltage: 450VAC
Size: 58x28x40mm
Cable length: 10cm / 4 "
Main color: Black

Characteristics:
With small loss, anti-wet, excellent electrical performance, reliability, large capacity, long service life and good self-healing properties.
- Designed with a nominal voltage of 450 V AC and a capacity of 14 µF
- Easy to connect with 2 wires, ideal for starting the engine
- Suitable for starting and running for single phase motors with AC 50 / 60Hz power supply
- Application: ceiling fan, exhaust fan, dynamotur, home appliance, etc.
Applied to the starting and best operation of the single phase motor in a 50 Hz (60 Hz) AC power supply system. It is widely used for electric fan, hood, air exchange fan, washing machine, and also energy saver.

This capacitor uses polyprpylene film and crosslinking safety film (thickened by zinc and aluminum) as the medium, encapsulated by flame retardant epoxy resin and square ABS plastic.
It is small, reliable and safe, also has electrical stability and long working life.
Fan capacitor CBB61 is widely used as a special starting and running capacitor for electric devices such as electric fans, fans and fans
