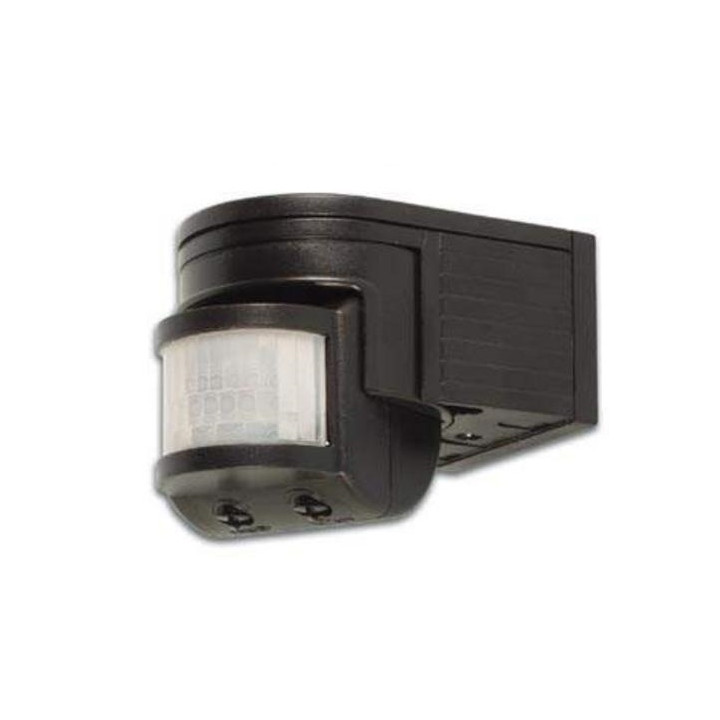

Detector volumetric infrared waterproof detector 220vac 1000w 10m waterproof pir detector infrared detectors waterproof infrared

This unit automatically triggers the lights you have chosen as soon as it detects someone moving. Outside or inside use (waterproof). Duration of light: adjustable from 5s to 12min. Infrared detection. Can be swivelled. Detection distance: 14m. Angle of detection: 180°. Adjustable detection sensitivity and twilight switch. Protection index: IP 44. Output on relay: 1 000W (filament lamps) and 500W (fluorescent tubes).
Features
adjustable detection area: down/up, left/right
can distinguish between day (day = sun) and night (night = moon): ambient light can be adjusted for the 2 positions
adjustable activation duration
also available in black version: PIR1200B

Specifications
power supply: 220 to 240Vac / 50Hz
detection range: 12m max.
detection angle: 180°
light control: < 3 Lux to 2000 Lux (adjustable)
activation duration: min. 8 sec. ± 3 sec. to max. 7 min. ± 2 min.
rated load: 1200W (230Vac)
installation height: 0.5 to 3.5m
power consumption: 0.45W (0.1W standby)
motion speed detection range: 0.6m/s to 1.5m/s
working temperature: -20°C to +40°C
working humidity: < 93% RH
IP value: 44
