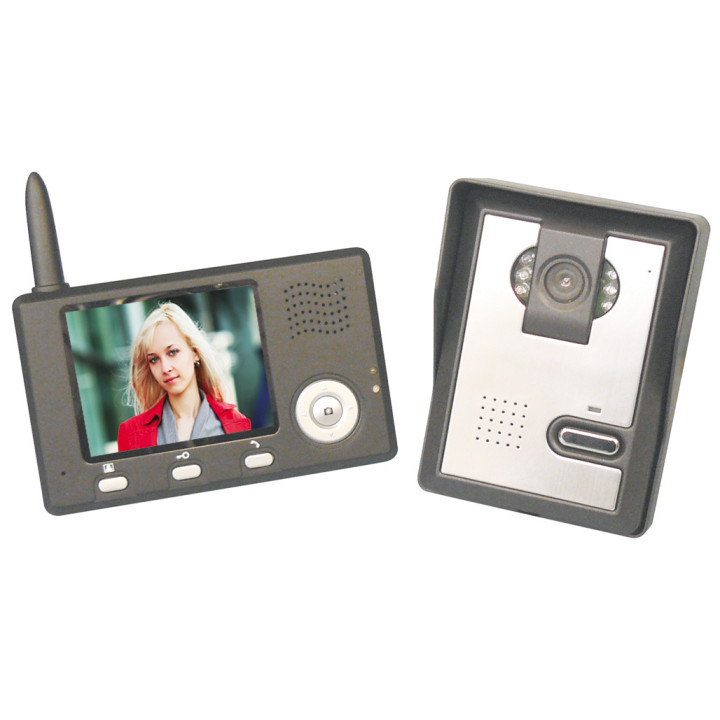

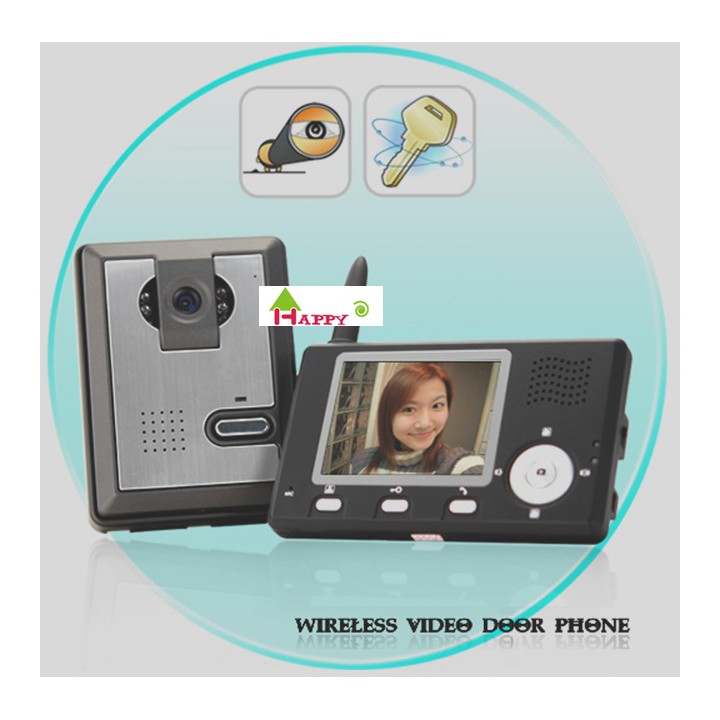

3.5' tft lcd wireless video doorbell doorphone intercom

monitor:140x135x20mm
door station:95x126x43mm
Weight: 730gr
Description:
Would you like to see who is outside before opening the door? The door is too far, or you are disabled or elderly person and find it difficult to walk all the way every time? Its no longer a problem with high tech video door phone.

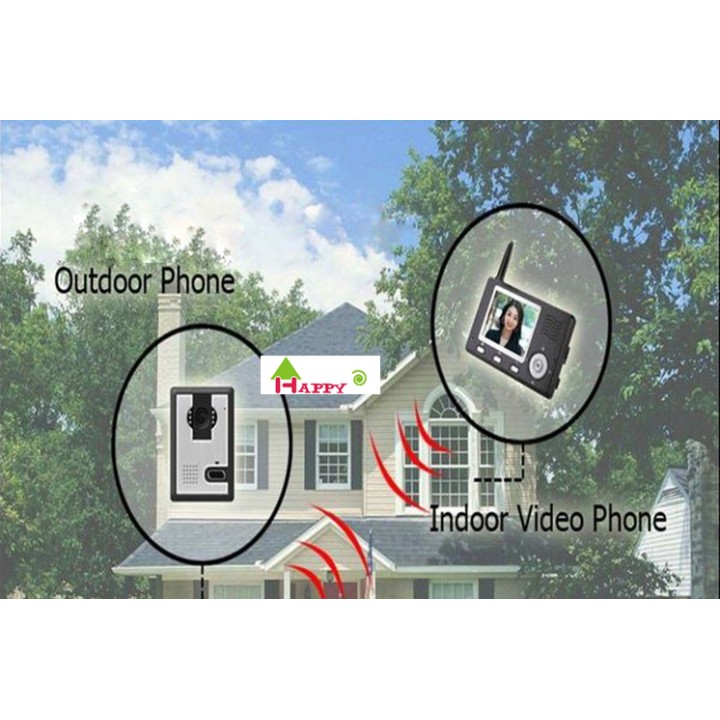

This system can be used in apartments, villas, hotels, offices, public buildings etc. The camera is easy to install, you can use the indoor monitor where the wireless signal can reach. Indoor monitor can hang on the wall, cabinet etc. can also be place on the desk, tea table, dining table etc.

A 16M memory card is built in indoor unit, which can store up to 100 pictures.

Note: A. Only the Indoor Unit can be charged with Lithium Battery, but the Outdoor Unit not. The Outdoor Unit must be powered with the AC power.
B. The 300 meters transmission distance in open area is a theoretical value supplied by Manufacturer, after being tested by us, this item can work well within 50 meters through two thick concrete walls. Actually, the transmission distance of all the 2.4G Wireless Door phones in the Market is similar, so, if you have a higher requirement, we suggest you purchase the Wired Door phone instead.
C. If the place you live in is too noisy, please also purchase this item with a caution.

Features

* 2.4GHz digital frequency hopping and encryption technology, transmission distance up to 300 meters at open area, robust anti-interference;
* Clear IR night vision;
* Rain shield for the outdoor camera is available;
* 3.5 inch TFT panel and monitoring all the while;

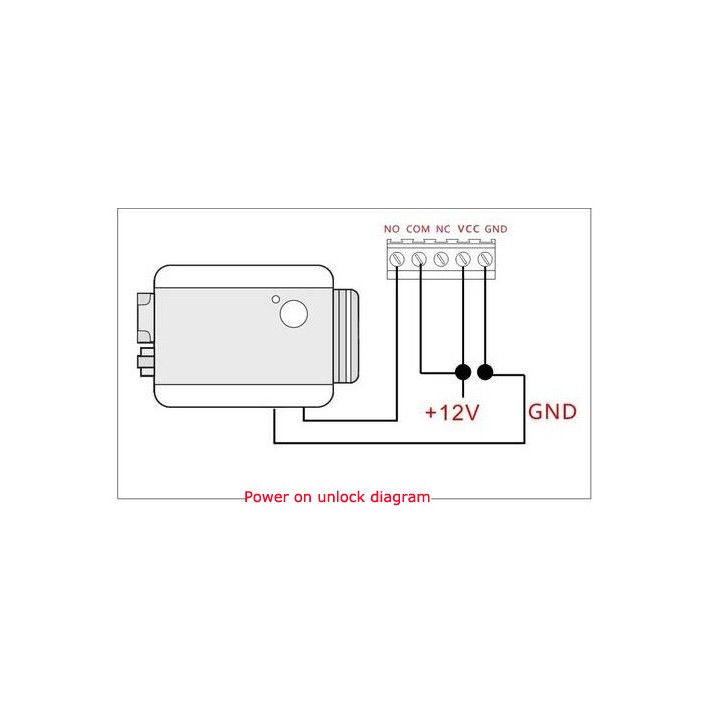

* Hands-free intercom, Unlocked by wireless control;
* 16 chord melodies for option, melody volume is adjustable;
* Date (only one Outdoor Camera with one indoor monitor is available) and time shown on the indoor monitor;
* Indoor monitor store up to 100pcs pictures marking date and time;
* Brightness and talking volume are adjustable;

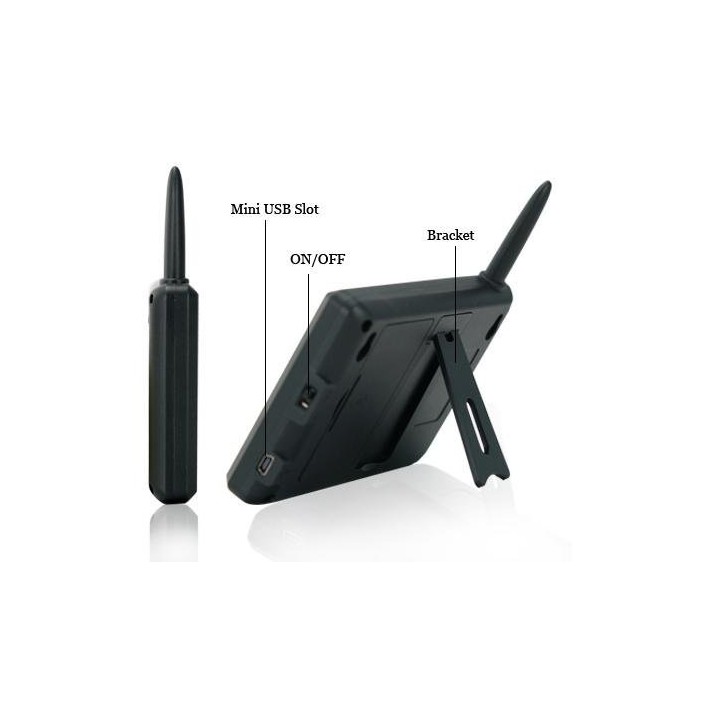

* MiniUSB charging interface, lithium battery is replaceable and rechargeable;
* One outdoor camera support up to 4pcs indoor monitors simultaneously and vice versa;
* Long time standby with Lithium battery, up to 135 hours;
* Battery consumption information and mode display. General:
Working Distance: 300Meters/328Yards (No-obstacle circumstance)
Video Compression: MJPEG
Audio Compression: ADPCM
Frequency: ISM 2,400~2,483 MHz
Transmission Power: 17dBm
Modulation: GFSK
Working Temperature: -15°C~55°C/5°F~131°F
Working Humidity: <85%

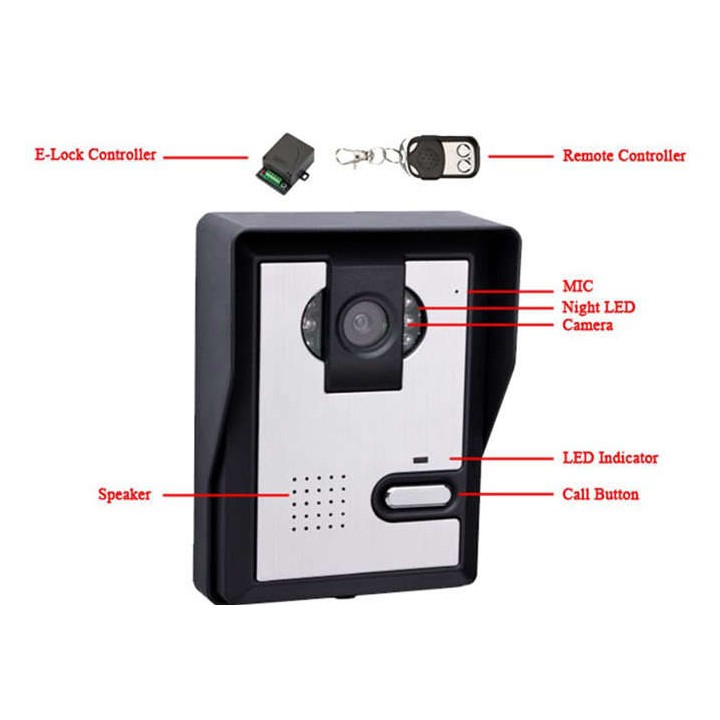

Outdoor Camera
Model No. : VDP-0601
Camera: 1/4'' CMOS 300K pixels
Mini Illuminance: 0Lux (IR on)
Night Version: 6 IR LED lights, visible within 2 meters(Black-White image in the dark or at night)
Adapter Input: AC100~ 240V, 50/60Hz
Adapter Output: DC5V/500mA
Power Consumption: Standby: 0.04W; Working: 1.8W
Installation: Wall mounted
Size: 125*94*25mm
Material: ABS Plastic & Aluminum alloy
Weight: 0.2Kg

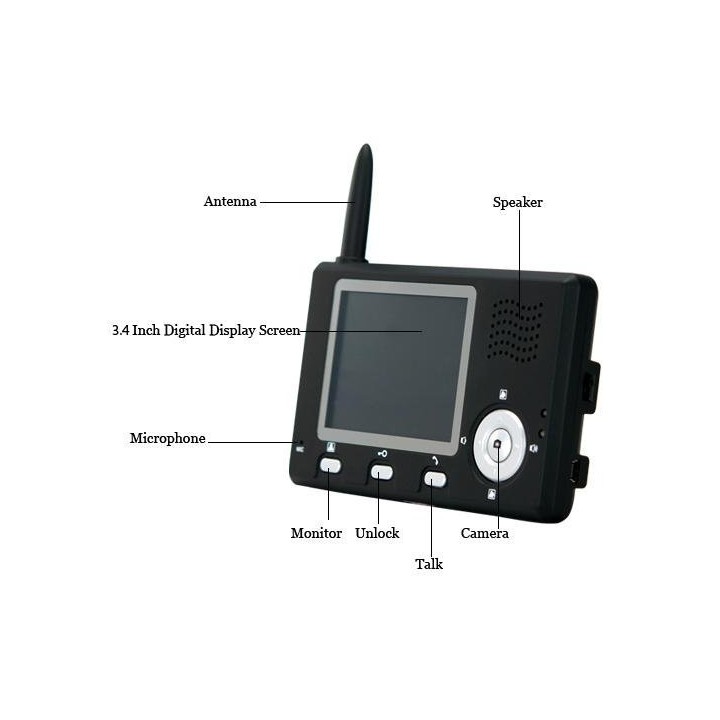

Indoor Monitor
Model No.: VDP-0701
Screen: 3.5'' wide angle(65 °) LCD screen
Resolution: 320*240 pixels
Image Record: Around 100 pieces color photos
Battery Bar Display: 5 grades
Signal Display: 6 grades

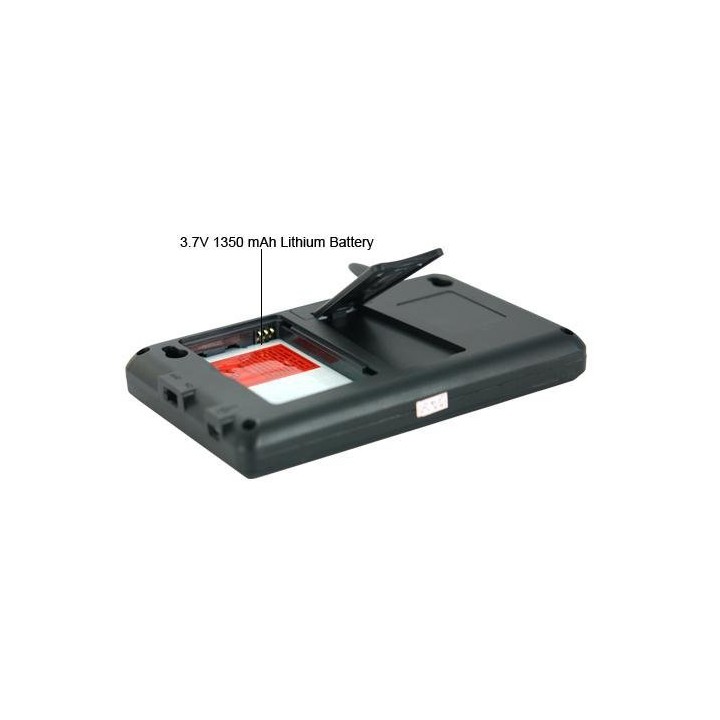

Power: By removable& rechargeable Lithium battery
Battery: 1350mAh;
Power Consumption: Standby: 10mAh(0.01W); Working: 120mAh(0.45W); Max: 150mAh(1W)
Battery working time: Standby: 135 hours; Continous working: 10 hours
Charging time: 2~3hours (above 5 hours for the first time)
Adapter Input: AC100~ 240V, 50/60Hz
Adapter Output: DC5V/1A
Installation: Wall mounted/lift on desk/Portable
Material: ABS Plastic
Size: 141*87*19.5mm
Weight: 0.18Kg
Packaging:
Giftbox Size: 295*210*55mm
N.W.: 0.75KG(for 1pc outdoor unit & 1pc indoor unit)
G.W.: 1KG(for 1pc outdoor unit & 1pc indoor unit)
