Detector smoke detector for wireless alarm ja60k ja65k, 30 100m 433.92mhz fire alarm detection smoke detection system wireless f

Electrical Power
3 V -two AA batteries
Life time typical 1 year
Alarm output built-in siren 94 dB /1 m
LED indicator
Operating frequency 433.92 MHz
Coding digital hopping code
Detection method ionic chamber
Sensor ’s activity max.4 kBq
Sensitivity y =0,5 -0,6 (EN 54-7)
Self-testing every 60 seconds (indicated by a short fPash of the LED)
Manual testing by pressing and holding the testing button
Environmental
Operating temperature -10 to +60 °C
Operating humidity 25 to 75 %
Working environment indoor use
False Alarm Protection
System SMT with EMC protection
Electrostatic discharge 8 kV
RF immunity 30 V /m (modulated sig.)to 1 GHz
Physical Mounting
ceiling mount
Housing plastic (cannot be closed without batteries)
Dimension diameter 120 mm,height 38 mm
Shipping weight 0.160 kg
Color white
Coverage
Covered space 50 m 3
Working distance (open air)up to 100 meters
Standards
Complies with:ISO 12239,EN 54-1,BS 5446-1,EN 50134-2,I-ETS 300220.

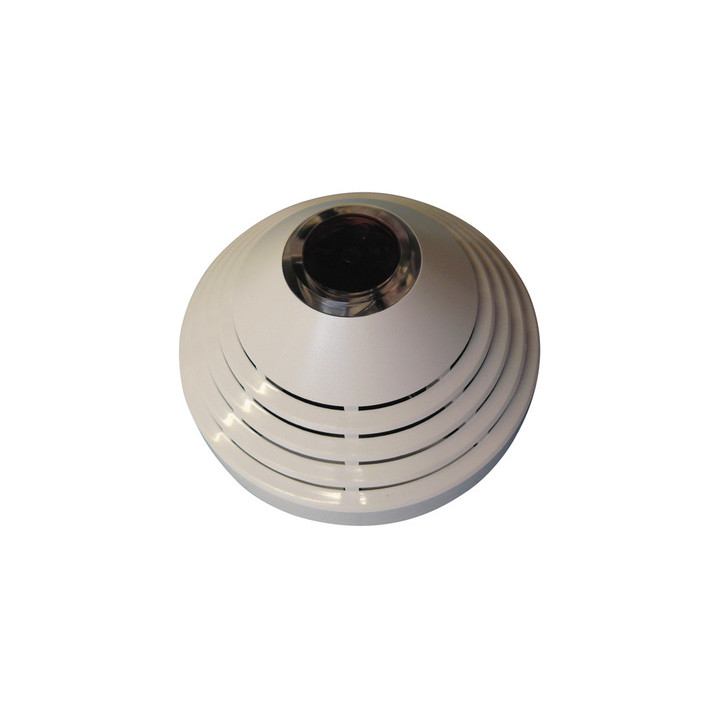

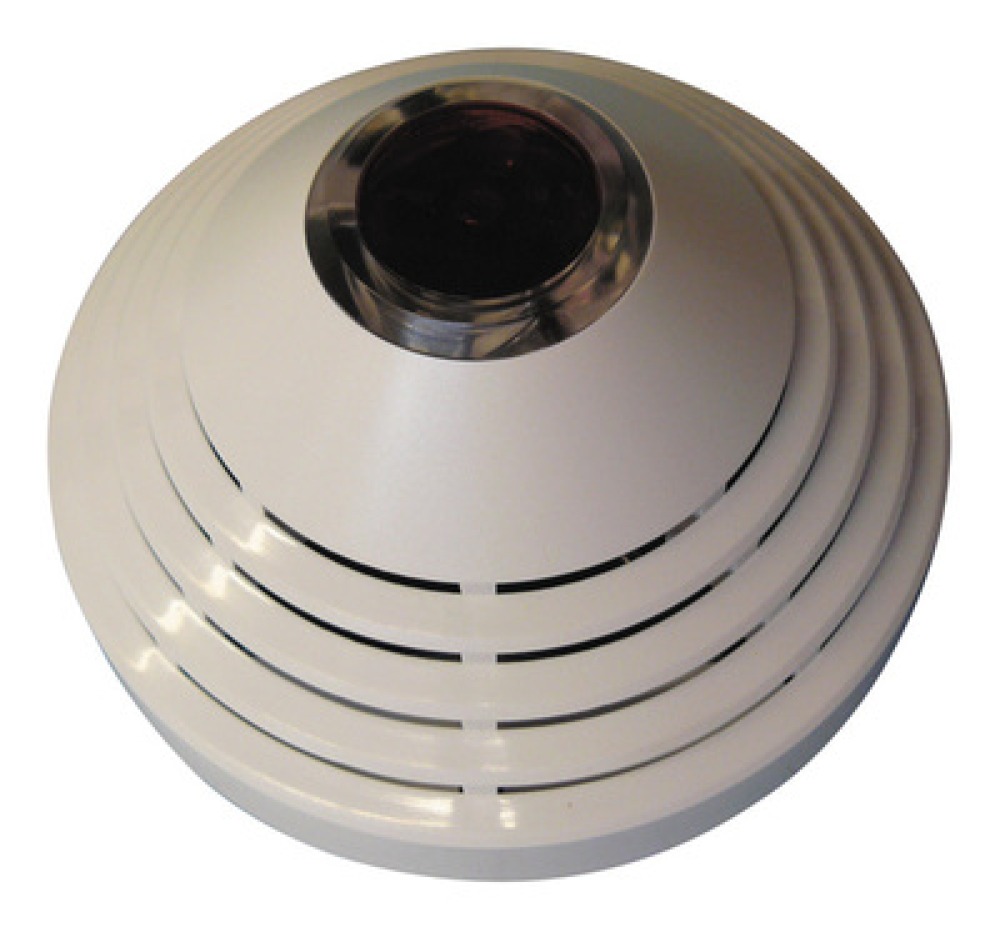

The JA-60S recognizes smoke and wirelessly
transmits this information to a control panel. It also
has a built in siren to warn people in the immedi-ate
vicinity.
The detector makes regular auto testing and
reports its condition to the system regularly for
full supervision.
The detector can also be used with UC-216
or UC-222 recieving units.



> Technical characteristics
Electrical Power
3 V -two AA batteries
Life time typical 1 year
Alarm output built-in siren 94 dB /1 m
LED indicator
Operating frequency 433.92 MHz
Coding digital hopping code
Detection method ionic chamber
Sensor ’s activity max.4 kBq
Sensitivity y =0,5 -0,6 (EN 54-7)
Self-testing every 60 seconds (indicated by a short fPash of the LED)
Manual testing by pressing and holding the testing button
Environmental
Operating temperature -10 to +60 °C
Operating humidity 25 to 75 %
Working environment indoor use
False Alarm Protection
System SMT with EMC protection
Electrostatic discharge 8 kV
RF immunity 30 V /m (modulated sig.)to 1 GHz
Physical Mounting
ceiling mount
Housing plastic (cannot be closed without batteries)
Dimension diameter 120 mm,height 38 mm
Shipping weight 0.160 kg
Color white
Coverage
Covered space 50 m 3
Working distance (open air)up to 100 meters
Standards
Complies with:ISO 12239,EN 54-1,BS 5446-1,EN 50134-2,I-ETS 300220.
