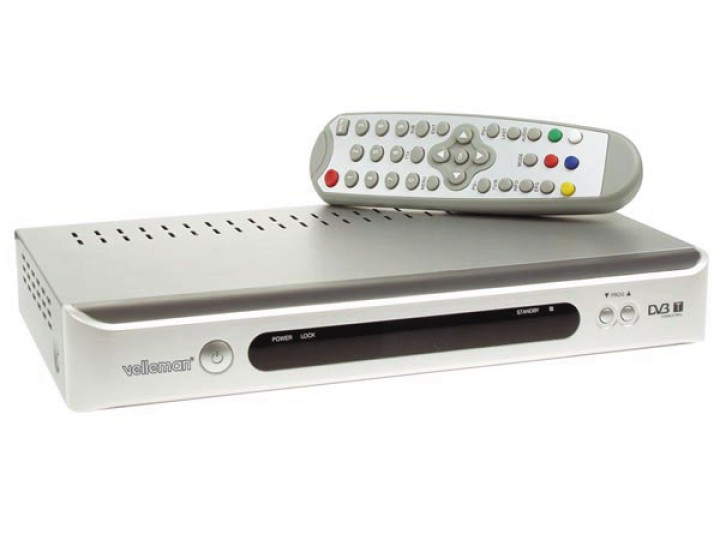

Dvb t receiver

Features

4 OSD languages available: English, German, French, Spanish
connectable to any TV set (PAL / NTSC)
HDMItm output, dual SCART output with RGB
easy connection and operation
perfect digital and noise-free image and sound
perfect reception with a standard antenna
durable steel housing
with remote control (battery included)
optional antennas: ANTDVBT2, ANTDVBT3, ANTDVBT4, ANTDVBT5, ANTDVBT6, ANTDVBT7, ANTDVBT8

Specifications

tuner:
input frequency range: 174 ~ 230MHz; 470 ~ 862MHz
IF bandwidth: 7 or 8MHz
input signal level: -72 ~ -20dBm
RF input connector: IEC169-2 type, female
RF output connector: IEC type, male
input impedance: 75 ohms
de-module mode:
waveform: COFDM (Code Orthogonal Frequency Division Multiplexing)
demodulation: QPSK, QAM16, QAM64
mode: 2K, 8K
guard interval: 1/4, 1/8, 1/16, 1/32
code rate: 1/2, 2/3, 3/4, 5/6, 7/8
video, audio code:
video decode: ISO/IEC13818-2 MPEG2 compatible
video resolution: 720 × 576
video code rate: max. 15Mbit/s
teletext: support DVB-TXTETSI/EN300472
audio decode: ISO/IEC13818-3
audio track: stereo, left ch, right ch.
audio sample rate: 32, 44.1, 48KHz
power specifications:
power input: 230VAC / 50Hz
power consumption: < 15W
environment requirements:
working temperature range: 0 ~ 40°C
working humidity range: < 90%
others:
weight: < 1.5Kg
dimensions: 266 x 158 x 39mm
