Detector gas detector for ja60 wireless alarm, 20 40m 433mhz fire alarm detector gas detector detects mixtures air combustible g

power supply 230V/50Hz (optionally 110V/60Hz), 5W
detection method hot wire type
sensitivity of 1st level 10 % LEL calibrated for methane
sensitivity of 2nd level 20% LEL calibrated for methane
buzzer sound level 94dB/0.3m
relay output optional for 1st or 2nd level, max.230V/5A
alarm memory selectable
response time less then 10 s
warm up time 30 s
working range max. 50m (open area)
working environment indoor use , -10 to +40°C indoor use, -10 to +40°C, IP30
complies with EN 60335-1

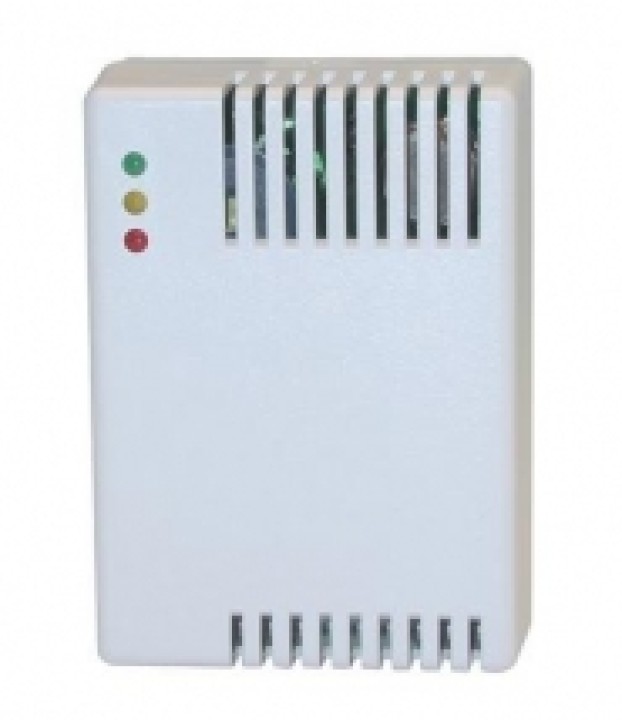

The JA60G is an optional wireless gas detector for the JA60K/JA65K wireless alarm system.
The JA60G detects all mixtures of air and combustible gas (Natural Gas, Methane, Propane, Butane, Acetylene, GPL, Hydrogen, etc). The detector detects two levels of gas concentration, responding with two different output reactions.
The main detector features are: high reliability and sensitivity, compact size, 230V (110V optional) power supply and long stability & lifetime. It has a built-in transmitter to wirelessly send an alarm signal.
