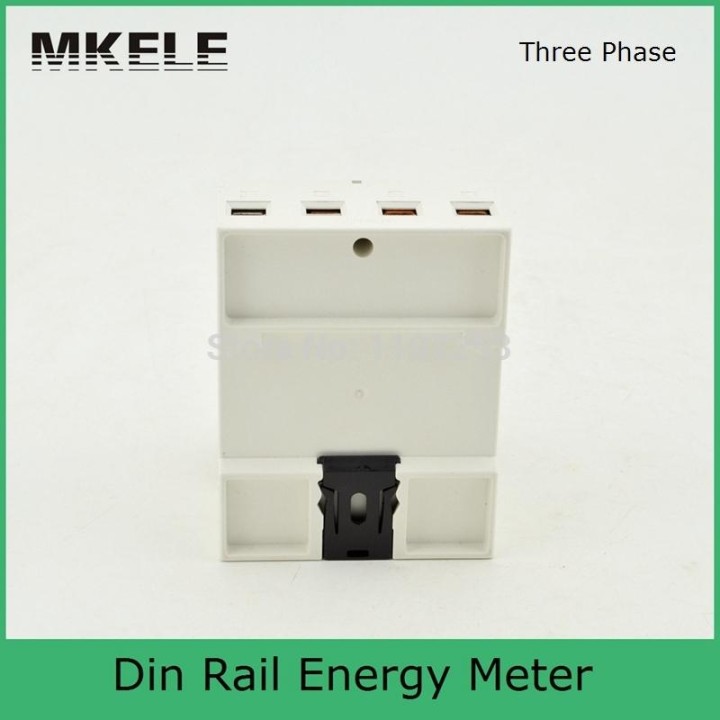

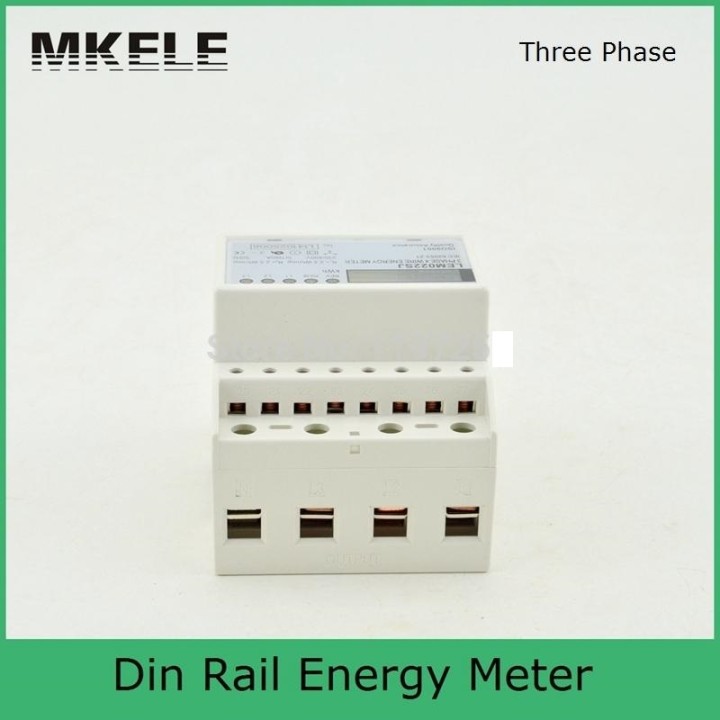

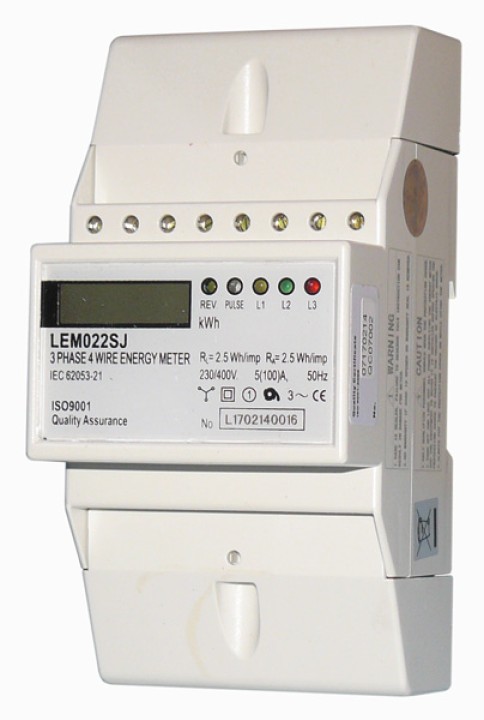

Three phase electronic energy meter to 4 son DIN rail with pulse output.Device very accurate, reliable, lightweight and compact.characteristic LCD (with blue backlight) pulse output
Three phase electronic energy meter to 4 son DIN rail with pulse output.
Device very accurate, reliable, lightweight and compact.
characteristic
LCD (with blue backlight)
pulse output
LED indicator
specifications
voltage: 3 x 230/380 V
Current: 10 (100) A
Accuracy class: 1.0
Frequency 50/60 Hz
Display Mode: LCD 6 +1 digits = 999999.9 kWh
consumption: <= 2 W (10 VA)
Temperature range: -20 to 55 ° C
LED indicator: 1 flashing / pulsing
pulse output: 800 imp / kWh
voltage: 12 to 27 V
current: 27 mA
pulse width: 90 ms
size: 76mm x 115mm x 65mm
weight: 400g
