Condensateur de démarrage 10µF / 450VTechnical specificationsCapacitance tolerance : ± 5%Working frequency range : 50 - 60 HzIndividual test voltage : between terminals: 2,15 Vn for 2 sec.
Technical specifications
Capacitance tolerance : ± 5%
Working frequency range : 50 - 60 Hz
Individual test voltage : between terminals: 2,15 Vn for 2 sec.
: between terminals and case: 3 KV for 2 sec.
Protection : case and cover in self extinguishing plastic material

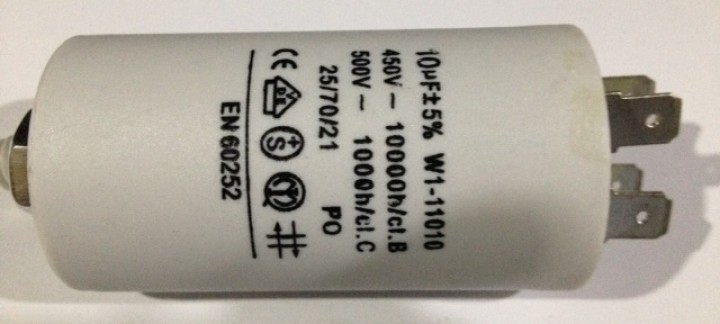

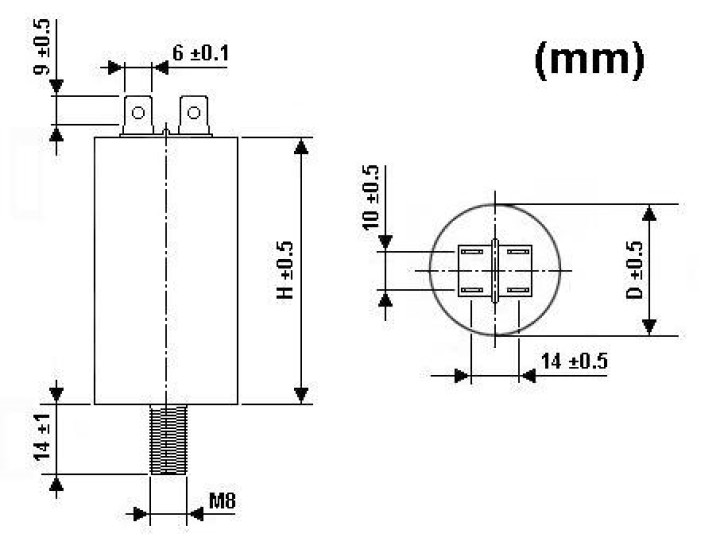

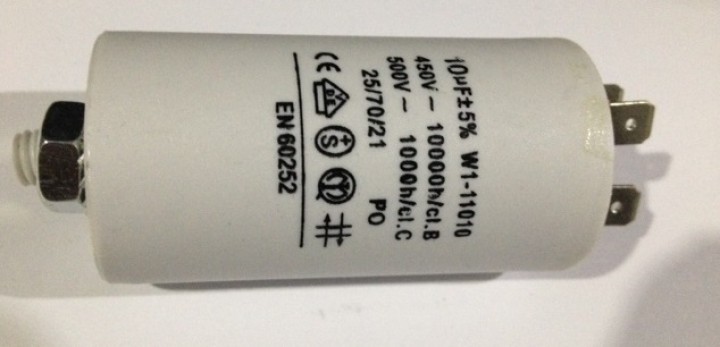

10 uF 450 V W1-11010 R 36 x 58 mm
EAN-code: 5412810050123
Ducati
Capacité 10 µF
Tension 450 V
Type Moteur
Terre Oui
Connexion AMP femelles
