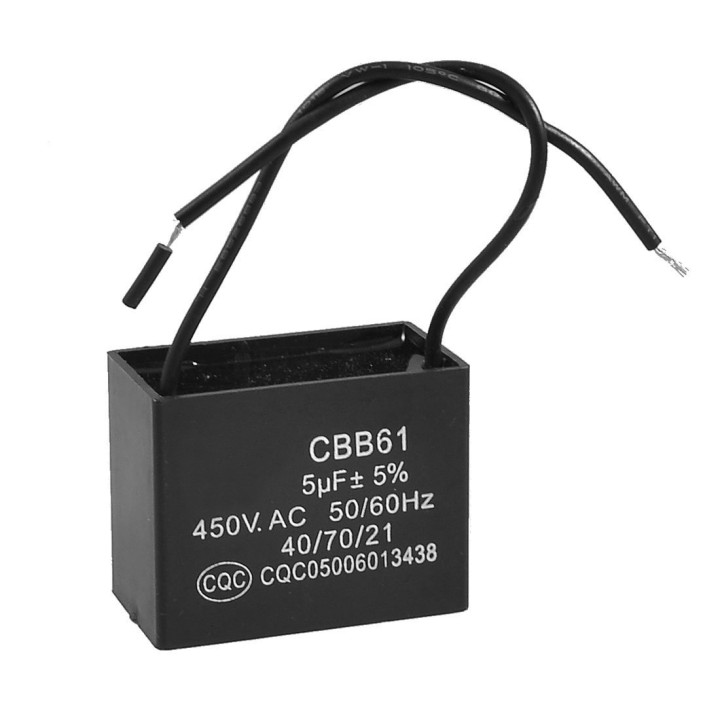

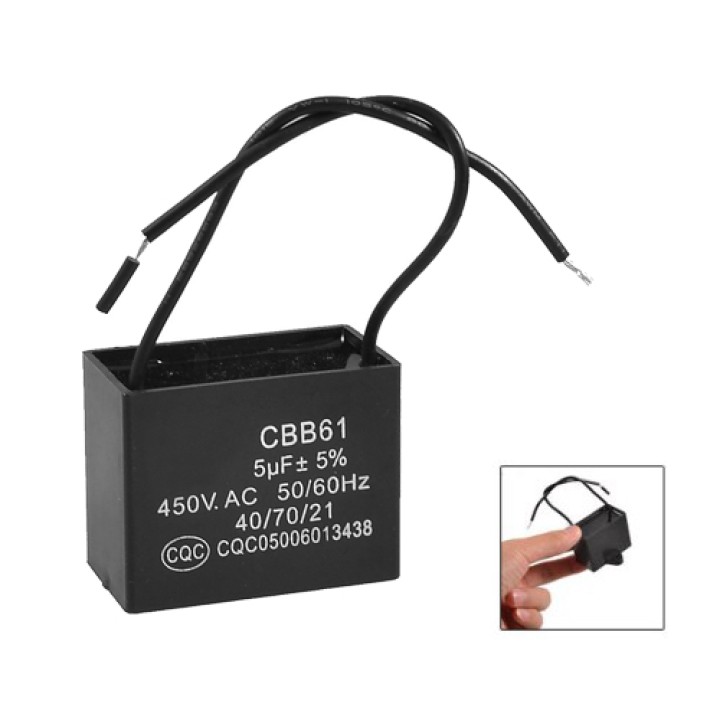

CBB61 Metallized Capacitor for Motor Start-up Ceiling Fan 500VAC 5uF 5mf
1 Pack 2-wired Ceiling Fan Motor Running Capacitor AC 450V 5uF For Electric Ceiling Fan Replacement Part CBB61 Series SA085
Product Name: Capacitor
Model: CBB61
Type: Polypropylene Film Capacitor
Material(External): Plastic
Rated Capacitance: 5uF
Tolerance: ±5%
Rated Frequency: 50/60Hz
Rated Voltage: 450VAC
Size: 47x18x34mm
Cable Length: 10cm/4"
Main Color: Black
Features:
With a small loss,anti-moist,excellent electrical performance,reliability,large capacity,long life and good self-healing properties.
- Designed with 450V AC rated voltage, and 5uF capacitance
- Easy to connect with 2-wire, great for motor starting
- Suitable for starting and running for monophase motors with power supply AC 50/60Hz
- Application: ceiling fan, exhaust fan, dynamotor, home appliance etc.
AppIied to starting and better working of single-phase motor in 50Hz(60Hz) AC electric power system. It is widely used for electric fan, range hood, air exchange fan,washing machine, and also power saver.
This capacitor uses polyprpylene film and reticulation safety film (thickened by zinc and aluminum) as a medium, encapsulated by burnt-prevent epoxy resin and square ABS plastic.
It is small, reliable and safe, also has stable electric and long working life.
Fan capacitor CBB61 widely used as the start-up and running capacitor that is special for electric appliances such as electric fan,ventilators and exhaust fanners.
