Capacitor 3 mf micro farad 400v 450v 500v 50 60hz universal motor start capacitor with am terminal w1 11003 hq - 1

Capacitor 3 mf micro farad 400v 450v 500v 50 60hz universal motor start capacitor with am terminal w1 11003

REF : 3MFC

€14.07
Round capacitors in a fireproof box. I

Volume discounts

5
€13.36
10
€12.66
20
€11.25
50
€10.55
100
€9.85
200
€9.14
500
€8.44
1000
€7.74
: 114 Items

Emplacement : -()R2N5

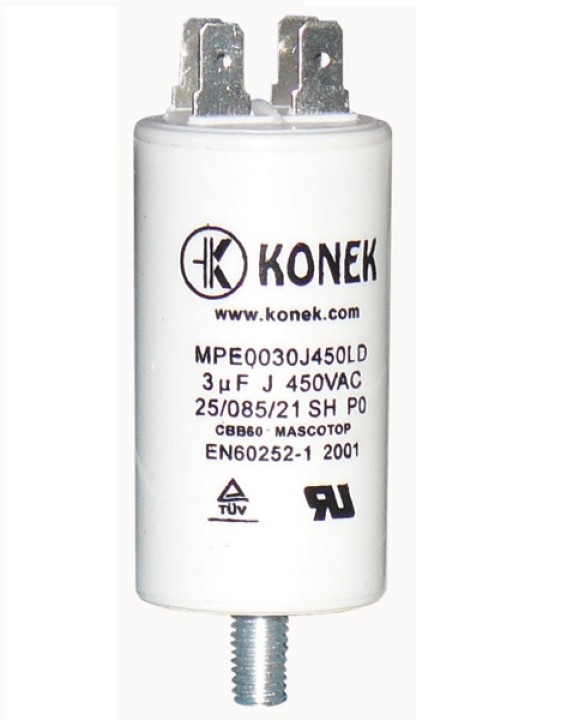

Round capacitors in a fireproof box. Isolated and highly watertight.
Easy to assemble thanks to male connectors and M8 screw. Suitable for 50 / 60Hz motors and lamps.

Capacitor
Capacity: 3.0 uF
Voltage: 450 V
Dimensions: Diameter 28x55mm

Specifications
Tolerance capacity: + - 5%
Working Frequency range: 50-60 Hz
Individual test voltage: between terminals: 2.15 Vn for 2 seconds.
: Between terminals and case: 3 KV for 2 seconds.
Protection: Case and plastic cover self-extinguishing

3.0 uF 450 V W1-11003 R 28 x 55 mm

Capacity 3 uF
450 V voltage
Type Engine
Yes Earth
AMP female connection

May replace any PSC 3 uF whose max voltage is between 400V and 500V.
COMAR Condensatori kind MKA3-450 - 3μF - 450V - Output terminals

Camera models concerned:
1LF-065IT - 906 013 012 (FAGOR)
1LFU-019S - 906 112 049 (FAGOR)
1LFU-019SX - 906 112 325 (FAGOR)
LDD-960IT-1-906580060 (FAGOR)
LDD-970IT-1-906580042 (FAGOR)
LDD-970ITX-1-906580051 (FAGOR)
LF-013E - 906 012 497 (FAGOR)
LF-013IX - 906 012 424 (FAGOR)
LF-015SX - 906 012 317 (FAGOR)
LF-020S - 906 012 380 (FAGOR)
LF-020SX - 906 012 399 (FAGOR)
LF-073IT - 906 012 576 (FAGOR)
LF-25I - 906 111 692 (FAGOR)
LF-25in - 906 111 709 (FAGOR)
LF-25IX - 906 111 718 (FAGOR)
LF-65IT - 906 012 567 (FAGOR)
LF-65IT1X - 906 012 549 (FAGOR)
LF-65ITX - 906 012 558 (FAGOR)
LFF-011-906111610 (FAGOR)
LFF-011X - 906 111 781 (FAGOR)
LFF-012-906111629 (FAGOR)
LFF-013-906111638 (FAGOR)
LFF-013I - 906 111 558 (FAGOR)
LFF-013IN - 906 111 567 (FAGOR)
LFF-013IX - 906 111 576 (FAGOR)
LFF-013X - 906 111 647 (FAGOR)
LFF-014-906111512 (FAGOR)
LFF-014X - 906 111 790 (FAGOR)
LFF-017-906111521 (FAGOR)
LFF-021LX - 906 111 601 (FAGOR)
LFF-022-906112067 (FAGOR)
LFF-023-906112094 (FAGOR)
LFF-023X - 906 112 101 (FAGOR)
LFF-024-906112110 (FAGOR)
LFF-024X - 906 112 129 (FAGOR)
LFF-032-906112227 (FAGOR)
LFF-032X - 906 112 245 (FAGOR)
LFF-033-906112236 (FAGOR)
LFF-033X - 906 112 254 (FAGOR)
LFF-13I - 906 111 585 (FAGOR)
LFF-13in - 906 111 530 (FAGOR)
LFI-022B - 906 112 076 (FAGOR)
LFI-022N - 906 112 085 (FAGOR)
LFI-023B - 906 112 147 (FAGOR)
LFI-023N - 906 112 156 (FAGOR)
LFI-023X - 906 112 165 (FAGOR)
LFI-031B - 906 112 263 (FAGOR)
LFI-031N - 906 112 272 (FAGOR)
LFI-031X - 906 112 281 (FAGOR)
LFI-032B - 906 112 290 (FAGOR)
LFI-032N - 906 112 307 (FAGOR)
LFI-032X - 906 112 316 (FAGOR)
LFI-14B - 906 112 192 (FAGOR)
LFI-14LX - 906 112 174 (FAGOR)
LFI-14N - 906 112 183 (FAGOR)
LFU-013S - 906 111 905 (FAGOR)
UFA-013SX - 906 111 914 (FAGOR)
UFA-017IX - 906 111 987 (FAGOR)
LFU-017S - 906 111 923 (FAGOR)
UFA-017SX - 906 111 932 (FAGOR)
LFU-020S - 906 111 941 (FAGOR)
UFA-020SX - 906 111 950 (FAGOR)
LFU-073IT - 906 112 012 (FAGOR)
LFU-15I - 906 111 969 (FAGOR)
LFU-15IN - 906 111 978 (FAGOR)
LFU-65IT - 906 112 021 (FAGOR)
UFA-65IT1X - 906 112 003 (FAGOR)
LJF-011X - 906 112 218 (FAGOR)
LJF-012-906111772 (FAGOR)
LJF-022-906112058 (FAGOR)
LJF-023-906112138 (FAGOR)
LJF-031-906112209 (FAGOR)
LVD-43-906111656 (FAGOR)
LVD-54-906112030 (FAGOR)
VFU-15I - 906 470 964 (FAGOR)
VFU-15IN - 906 470 973 (FAGOR)
VFU-15IX - 906 470 982 (FAGOR).
hq
3MFC
114 Items
