Adapter charger 11.1v 12v 12.6v 3A 3s for lithium polymer battery 5.5 x 2.1mm euro plug

24,92 €

1 Item

Quantity
Price
5
23,67 €
10
22,43 €
20
19,93 €
50
18,69 €
100
17,44 €
200
16,20 €
500
14,95 €
1000
13,70 €

CH12V3A5521

Description

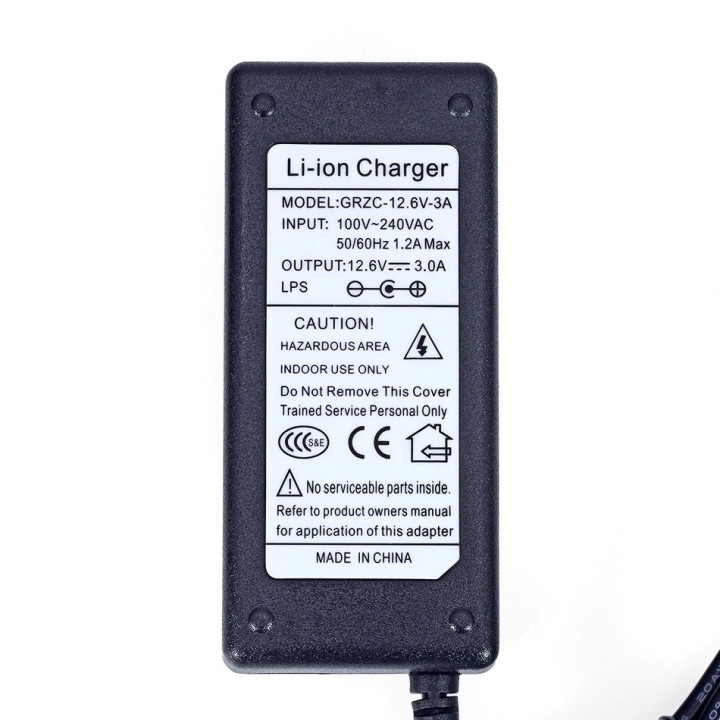

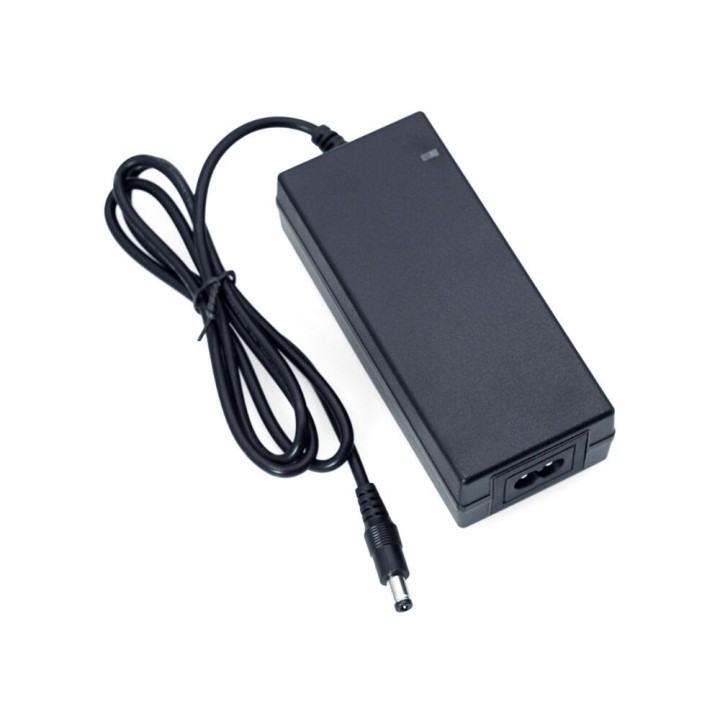

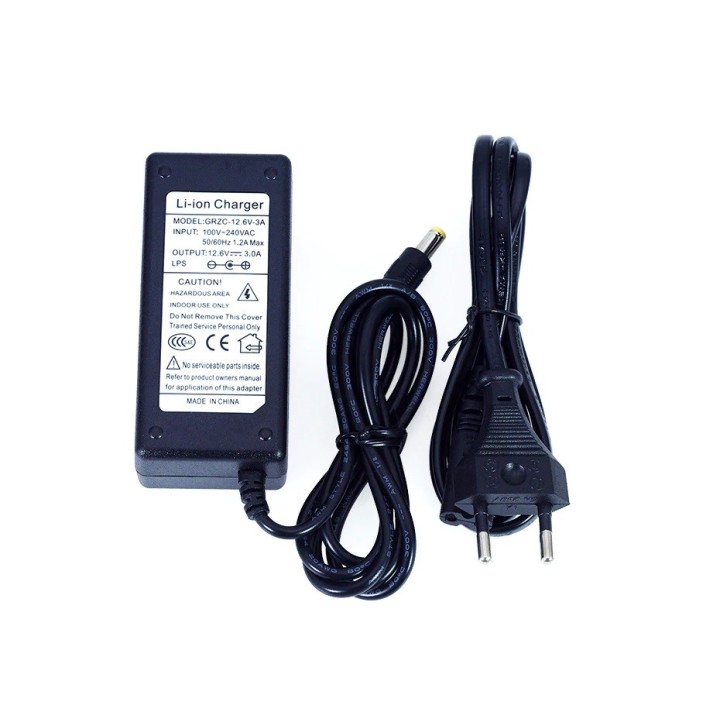

Adapter charger 11.1v 12v 12.6v 3A 3s for lithium polymer battery 5.5 x 2.1mm euro plug
12.6V 3A Lithium battery pack charger 3S battery 12V charger DC head is 5.5 * 2.1mm

12.6V-3 A lithium battery charger
Red light charging * Green charging end.
Baby related parameters: Input: AC100 ~ 240V
Output: Constant current voltage regulator DC12.6 V-3
DC output line: soft envelope
DC connector: DC5521 head, head diameter of 5.5mm core 2.1mm socket
The authentication: CCC 3 c CE UL FCC ROHS authentication
Product biggest advantage: 1, circuit board has over voltage, over current, short circuit protection function; 2, the output power feet.3, output voltage high precision; 4, the output voltage ripple small; 5, standard design, 100% compatible with original battery.
Well noise: built-in EMI filter, ripple minimum, the noise is small (MAX 280 MVP-p) Charging mode: constant current, constant voltage (CC-CV turn flow range fifty to 150 ma) Short circuit protection: load after completion of short circuit, The charger will automatically return to normal workOver power protection: flow debugging, the charger will automatically return to normal workOver voltage protection: output voltage more than nominal voltage, the charger will protect, debugging must restart charger after can return to normal workOverload protection: 105% ~ 150% (FOLDBACK current limit output reset: Automatic restore) Instructions: charging, light red; Filled, light green, light, light green, failure, the lights are flashing.
Products applicable to:
Suitable for 3 series lithium (lithium ion, lithium polymer) battery
