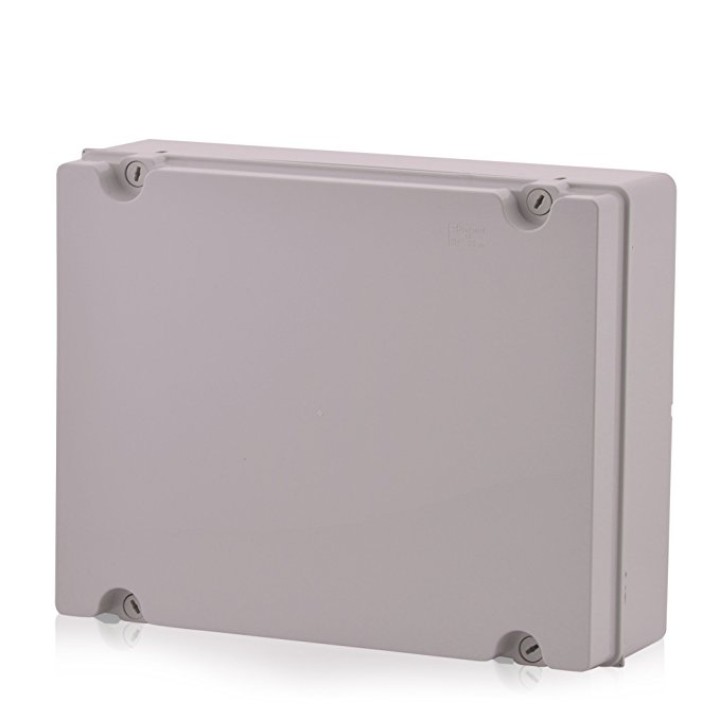

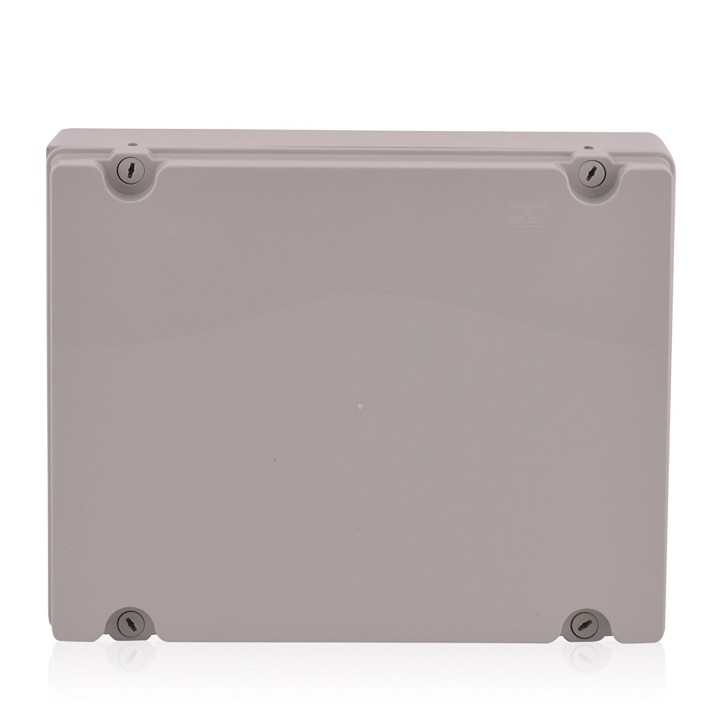

JS7530 Industrial Enclosure 380x300x120mm with Grey Cover and Hinged Screws from Spitzenspannung Elektrotechnik

JS7530 Industrial Enclosure 380x300x120mm with Grey Cover and Hinged Screws from Spitzenspannung Elektrotechnik

Dimensions:
Width: 380mm (A)
Height: 300mm (B)
Depth: 120mm (C)

Protection Degree: IP 65 acc. DIN EN 60529/DIN 40050
Material: body and cover ABS plastic (limited UV resistant), hinged nylon screws
Color: grey (all parts)
Installation Temperature: -15°C up to +60°C acc. DIN EN 60670
Temperature Stability: up to +70°C acc. DIN EN 60695-10-2
Fire Resistance: +650°C acc. DIN EN 60695-2-11

Industrial enclosures supplied by Spitzenspannung Elektrotechnik suit a wide range of applications. They can be used for distributing electricity, they protect appliances and boards from dust and water, they even provide a secure and protected mounting for push buttons, switches and keypads. This enclosure has a protection degree of IP65 , therefore it even fulfils the requirements of outdoor use. All plastic parts are UV stabilized in order to provide durability of the enclosures when they are applied outdoors.

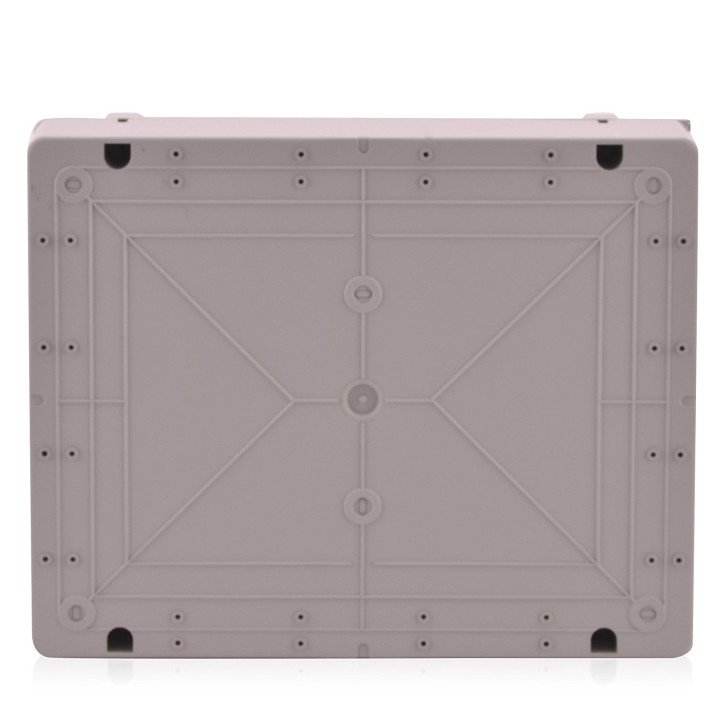

The walls of the housing base have a plain smooth surface. Openings for cable sleeves with screwed cable glands can be drilled through the walls in order to fit the enclosure with the desired number and size of cable entries. Our shop offers a variety of screwed cable glands enabling you to purchase them without additional shipping costs.

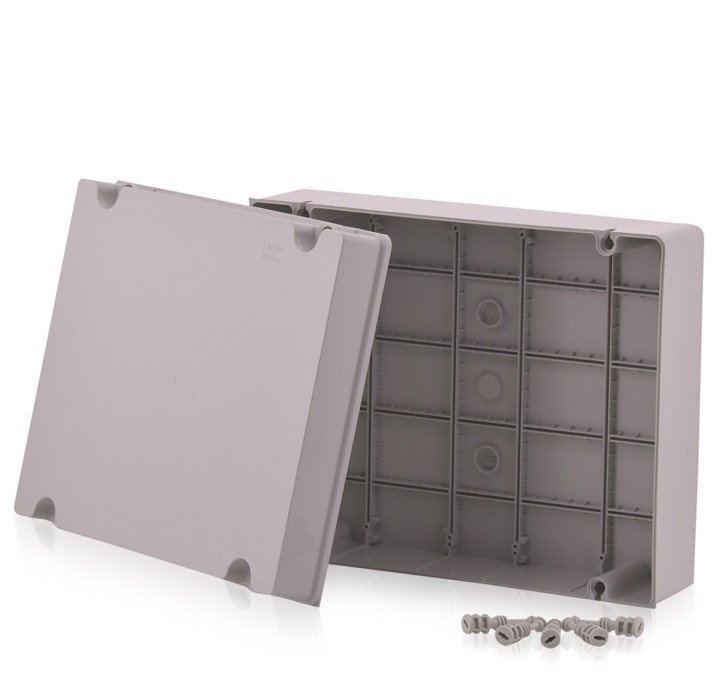

Hinged nylon screws are a very handy feature of electrical enclosures. These screws allow the cover of a cabinet to be used like a hinged lid. There a two options for the swing direction of the cover and the opened lid is locked into position. Additionally, the design of the hinged nylon screws prevents the cover and the screws from getting lost and eliminates the wear and tear caused by conventional self-tapping screws.

We also offer matched wall mounting kits for electrical enclosures with hinged nylon screws. Each kit consists of four mountings and makes it possible to mount a cabinet to a wall without drilling holes into its back panel. This mounting option preserves the degree of protection of an encloruse if necessary. Feel free to order matching mounting kits from our shop as you please.

Another range of accessories we offer are zinc coated metal mounting plates. Feel free to order matching mounting plates from our shop as you please.

Accessories NOT INCLUDE
JS7933 Wall Mounting Set for Enclosures 380x300x120mm w Hinged Screws JS7933 Wall Mounting Set for Enclosures 380x300x120mm w Hinged Screws

JS7923 Mounting Plate for Enclosures 380x300x120(180)mm JS7923 Mounting Plate for Enclosures 380x300x120(180)mm
