These enclosures consist of high-impact ABS (operating temperature : -20°C to +100°C).
The lid and the base are equipped with a tongue and groove sealing system with a neoprene gasket.
Sealed abs enclosure dark grey 171 x 121 x 55mm
REF : G313
€18.78
These enclosures consist of high-impact ABS (operating temperature : -20°C to +100°C).
The lid and the base are equipped with a tongue and groove sealing system with a neoprene gasket.
: 1 Item
Emplacement : -()R9E1
Security policy
Delivery policy
Terms of Sales

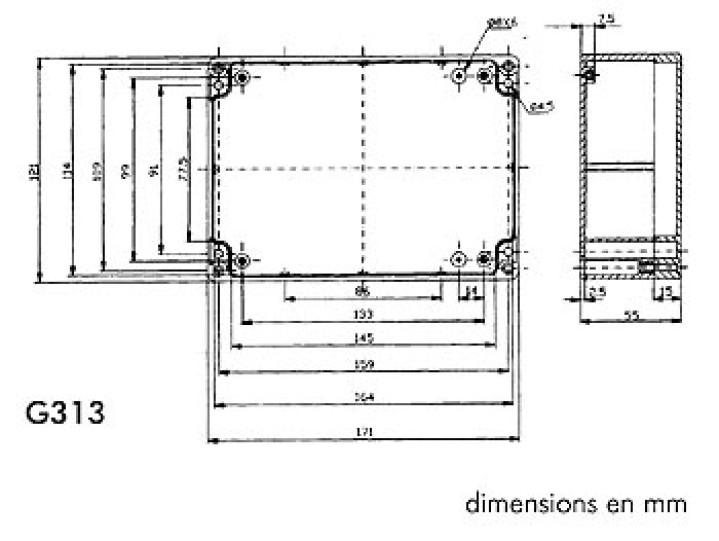

Dimensions: 171 x 121 x 55mm
- weight: 0.24 Kg
These enclosures consist of high-impact ABS (operating temperature : -20°C to +100°C).
The lid and the base are equipped with a tongue and groove sealing system with a neoprene gasket. The mounting holes and the lid-fixing screws are located outside the sealed area, preventing moisture and dust from entering the enclosure. Internal guide slots allow the vertical mounting of PCB assemblies.
Designed to meet IP65 of IEC529 and NEMA4 (dust- and hoseproof).

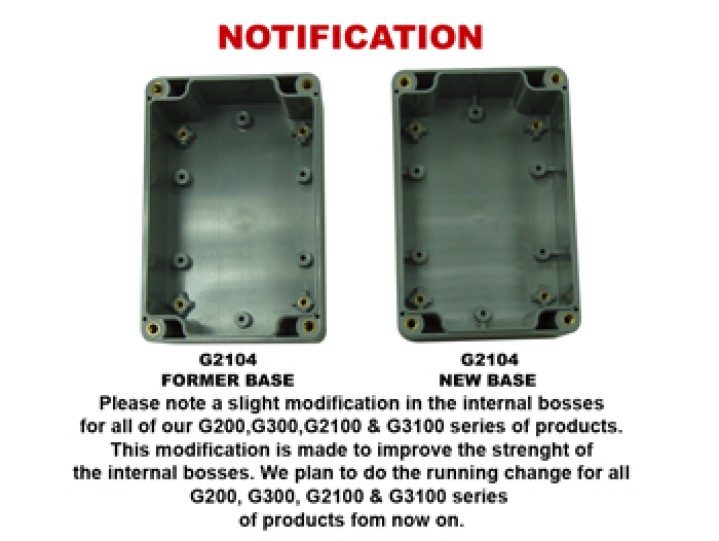

The bosses on the internal base allow the horizontal fixing of PCB's or the connection of terminals, etc. with threaded brass inserts.
Also available with clear lid (on demand).
Specifications
* material: ABS
* dimensions: 171 x 121 x 55mm
* colour: dark grey
- weight: 0.24 Kg
These enclosures consist of high-impact ABS (operating temperature : -20°C to +100°C).
The lid and the base are equipped with a tongue and groove sealing system with a neoprene gasket. The mounting holes and the lid-fixing screws are located outside the sealed area, preventing moisture and dust from entering the enclosure. Internal guide slots allow the vertical mounting of PCB assemblies.
Designed to meet IP65 of IEC529 and NEMA4 (dust- and hoseproof).
The bosses on the internal base allow the horizontal fixing of PCB's or the connection of terminals, etc. with threaded brass inserts.
Also available with clear lid (on demand).
Specifications
* material: ABS
* dimensions: 171 x 121 x 55mm
* colour: dark grey
