Sealed die cast enclosure aluminium 115 x 90 x 55mm

REF : G113

€25.86
Enclosures for sensitive electronic assemblies and for pneumatic, hydraulic and electrical devices in commercial and industrial environments. These enclosures provide effective EMI and RFI shielding.

Volume discounts

5
€24.57
10
€23.27
20
€20.69
Last items in stock
: 1 Item

Emplacement : SUR COMMANDE

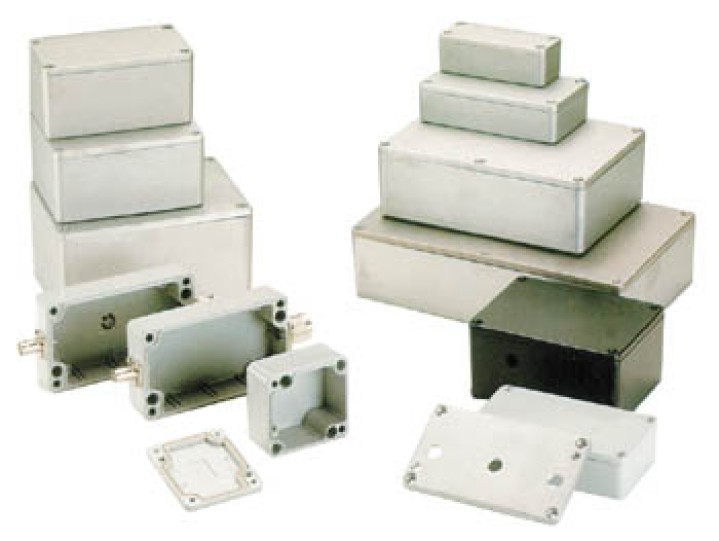

Enclosures for sensitive electronic assemblies and for pneumatic, hydraulic and electrical devices in commercial and industrial environments. These enclosures provide effective EMI and RFI shielding. Designed according to IP65 of IEC529 and NEMA4 (dust- and hoseproof).
The mounting holes and the fixing screws for the lid are located outside the sealed area, which prevents moisture and dust from entering the enclosure.
The lid incorporates a recessed neoprene gasket.
Bosses on the internal base allow the fixing of PCB's and are suited for an earthing connection, etc...
Internal guide slots allow vertical PCB mounting.
The lid-mounting screw holes are threaded and the screws themselves are captive and recessed.
Two or four holes make horizontal PCB mounting possible.
Specifications

material: aluminium alloy

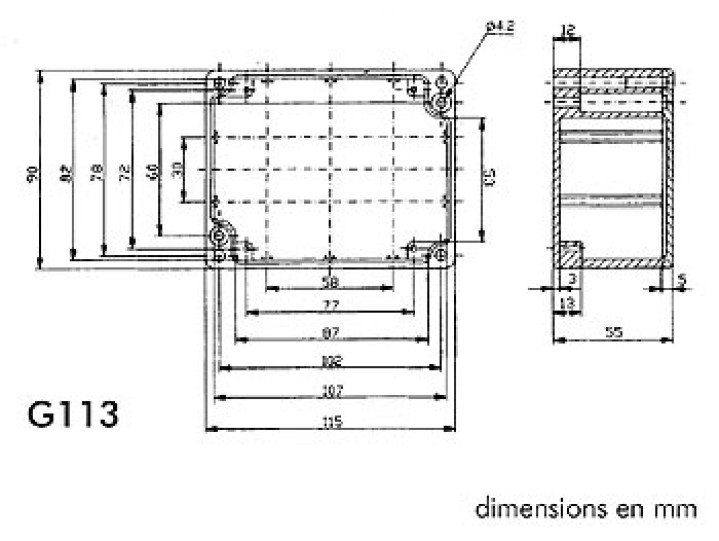

dimensions: 115 x 90 x 55mm
G113
1 Item
