Microswitch subminiature switch micro switch with lever 3a ms3-lpcb velleman - 4

Microswitch subminiature switch micro switch with lever 3a ms3-lpcb

REF : MS3LPCB

€2.49
specifications with leverspecifications initial contact resistance: max. 15mohm Insulation resistance: 100Mohm min. (at 500VDC) Dielectric Strength: 1000VAC for 1 minut

Volume discounts

2 3 4 5
€1.87 €1.58 €1.37 €1.20
Quantity

: 15 Items

Emplacement : .()R2B3



Security policy



Delivery policy



Terms of Sales


specifications

with lever

specifications

initial contact resistance: max. 15mohm
Insulation resistance: 100Mohm min. (at 500VDC)
Dielectric Strength: 1000VAC for 1 minute
Mechanical life: min. 1000000 maneuvers
electrical life: min. 100,000 operations at full load

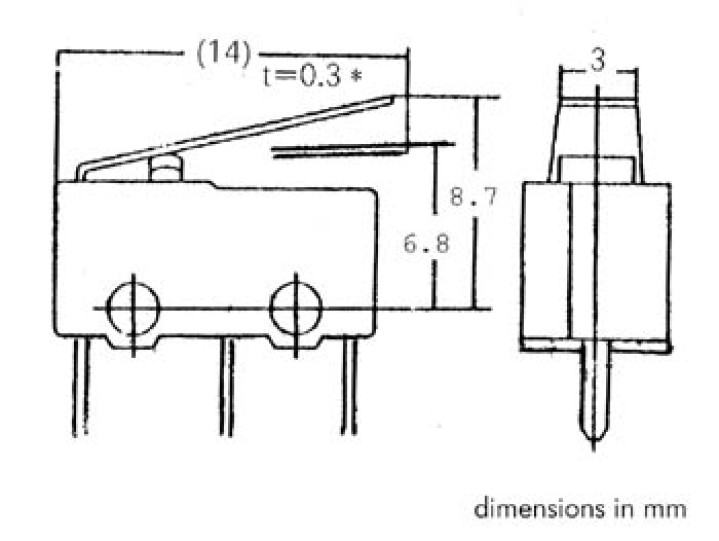

dimensions: 6.5 x 12.8 x 5.8mm
velleman
MS3LPCB
15 Items

Data sheet

Affaire
Non

Specific References

EAN13
3663275083764
