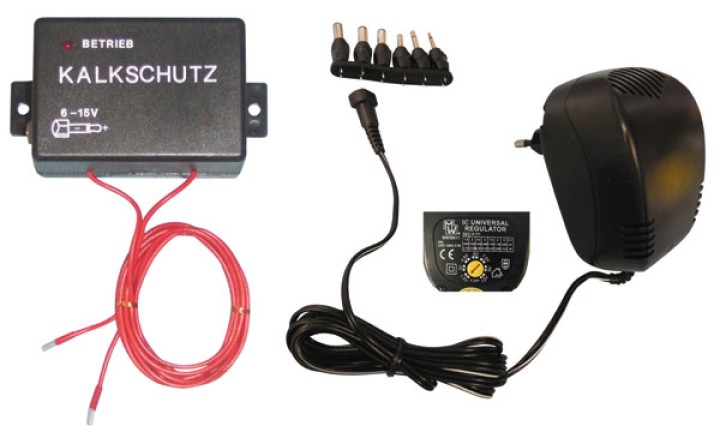

Electronic calcareous anti 12v magnetic anti tartar+electric power supply 220v

This module is not harmful to the environment, i.e. without chemicals and operates on a physical-inductive base. Easy to mount, no intervention into conduits! This module protects washing machines, dish washers, heating boilers etc. Operating vol-tage: 6...15 V, plug power supply is not included. Low current consumption! The magnetic waves of this decalcifier polarize the salts and minerals in the water an thus prevent incrustation in conduits. Fur-rings will be decomposed progressively in the long run. The water will not become free from lime, the decalcifier simply decomposes the molecules into a new form since water which is completely free from lime is very aggressive. The water becomes a little more soft, calcium which is important for health and minerals will be maintained and consequently the taste of the water will not change.

Function:
A low-frequency impulse field builds up between both coils wound around the water pipe, which is active up to the ultrasonic range. That is how the structures of the lime crystals change from the squared bizarre form into round to cubical forms, which combine more difficult. There is less formation of limestone because of that and more soft lime dust, which settles very difficult. It is very difficult to remove limestone, the lime dust transformed by the descaler settles only very hardly and can be easily removed with a cloth (e.g. on shower heads, in boilers, etc.). The water does not get lime-free, the lime merely gets another form!

Meaning of the 2 LED displays:
1. The LED “Power” lights up when the device is switched on and connected with a power supply.
2. The LED “Frequency” lights up if the safe area generator of the descaler operates properly and the energy is led on both coils for the water pipe.

Mounting:
Install the device shortly behind the water meter above the water pipe at the wall. Both induction cables simply have to be wound around the metal tube at a distance of approx. 15...20 cm to each other at the left and right and must be adhered at the end. As far as the cable coils are concerned, the windings should be put closely side by side (see drawing). The lamp “Operation” lights up when the current supply is connected. The lamp lights up if the installed magnetic field generator operates and delivers an inductive voltage field onto the cables towards the water pipe.

Intended use:
For assembling at water pipes in order to counteract furring.

Technical data:
Operating voltage: 6…15 V
Current consumption: < 130 mA
Alternating field frequency: < 2000 Hz
Dimensions: approx. 74 x 55 x 28 mm, without fixing straps
Oscillation transmission: with 2 cables which have to be coiled up helically on the water pipe (approx. 3…10 turns each).
