REF : 101C

€49.92

Wide band universal aerial: VHF channels (from 41 to 260MHz) UHF channels (from 470 to 890MHz) and FM reception. 24dB gain with built-in amplifier. This electronic aerial is ideal for places where rec

Volume discounts

5
€47.42
10
€44.93
20
€39.93
50
€37.44
100
€34.94
200
€32.45
500
€29.95
1000
€27.45
: 11 Items

Emplacement : R13C1

Dimension 140x375x55mm . Weight 1,9Kg

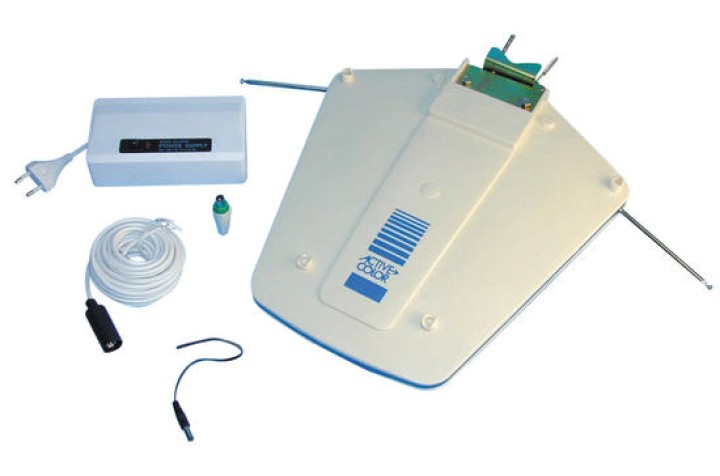

Wide band universal aerial: VHF channels (from 41 to 260MHz) UHF channels (from 470 to 890MHz) and FM reception. 24dB gain with built-in amplifier. This electronic aerial is ideal for places where reception is difficult: mountains, boats, balcony, campsites, etc. The 101C is supplied complete with mast fixings, a 220Vac or 12Vdc supply (with two TV outputs) and a coaxial cable (with connector) * ideal for use on boats and camping trips
* two TV outputs
* effectively reduces the amount of 'snow' on your screen and provides a clearer image
* can be used on the VHF (frequency 1-12), UHF (frequency 13-68) and FM (88-108 MHz) bands

Specifications

* power supply: max. 230Vac, 50Hz or 12Vdc/100mA (incl.)
* frequency: 40 - 890MHz
* gain: VHF 26dB, UHF 24dB
* front back ratio: UHF 16-6, VHF 0
* voltage standing wave ratio: 2 - 3
* noise ratio: 3.5 - 8dB
* maximum output level: 100dBµV
* operating temperature: -20°C to 45°C
* wind surface: 0.181m²
* wind load: 12.67kPa
* impedance: 75 ohms
* weight: 0.95kg
* dimensions: 680 x 470 x 50mm
* maximum ambient temperature Ta: 45°C

velleman
101C
11 Items

Data sheet

Affaire
Non
